InfineonDatasheet (PDF)

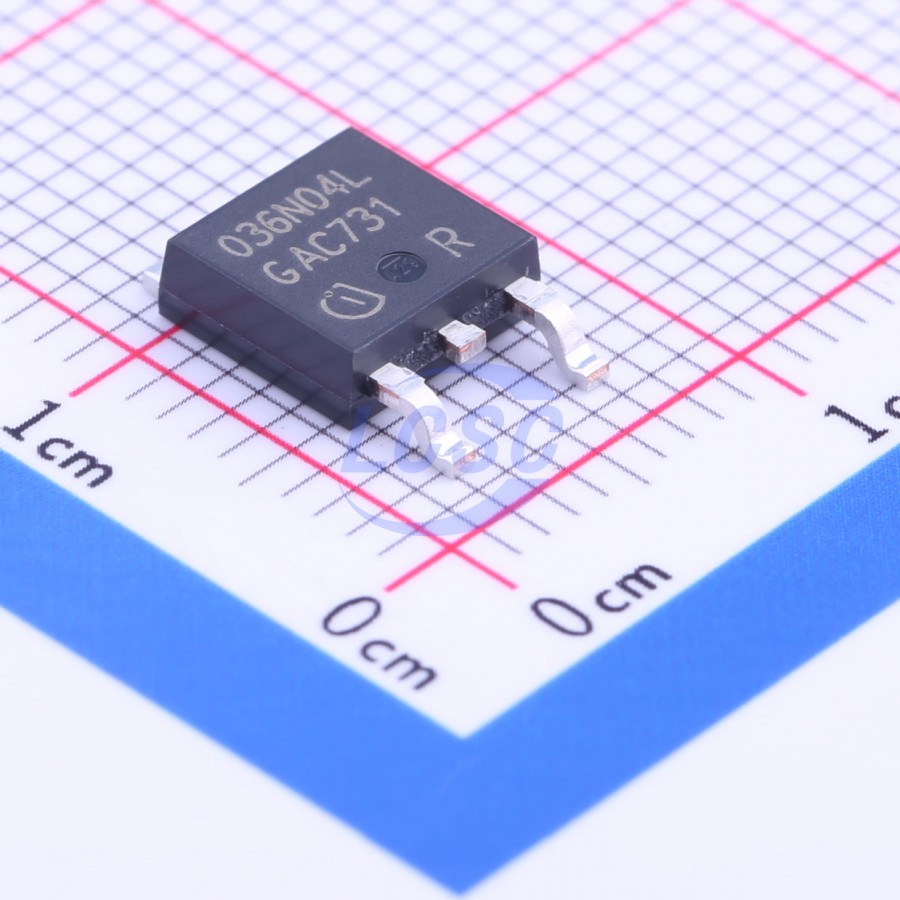

IPD036N04L G
N-Channel 40V 90A 94W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET N-CH 40V 90A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IPD036N04L G
- Store part #
- C152354
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
128 in stock
#C152354
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.36 | ₹133.36 |
| 10+ | ₹106.69 | ₹1,066.90 |
| 30+ | ₹93.25 | ₹2,797.50 |
| 100+ | ₹80.02 | ₹8,002.00 |
| 500+ | ₹72.21 | ₹36,105.00 |
| 1,000+ | ₹68.09 | ₹68,090.00 |
1 × ₹133.36
₹133.36
excl. GST
₹157.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD036N04L G
₹133.36 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.3nF
- Ciss-Input Capacitance
- 6.3nF
- Pd - Power Dissipation
- 94W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 54pF
- RDS(on)
- 3.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 78nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.481 g
Overview
Key features
- Fast switching MOSFET for SMPS
- Optimized technology for DC/DC converters
- Qualified according to JEDEC for target applications
- N-channel, logic level
- Excellent gate charge x RDS(on) product (FOM)
- Very low on-resistance RDS(on)
- 100% Avalanche tested
- Pb-free plating; RoHS compliant
