InfineonDatasheet (PDF)

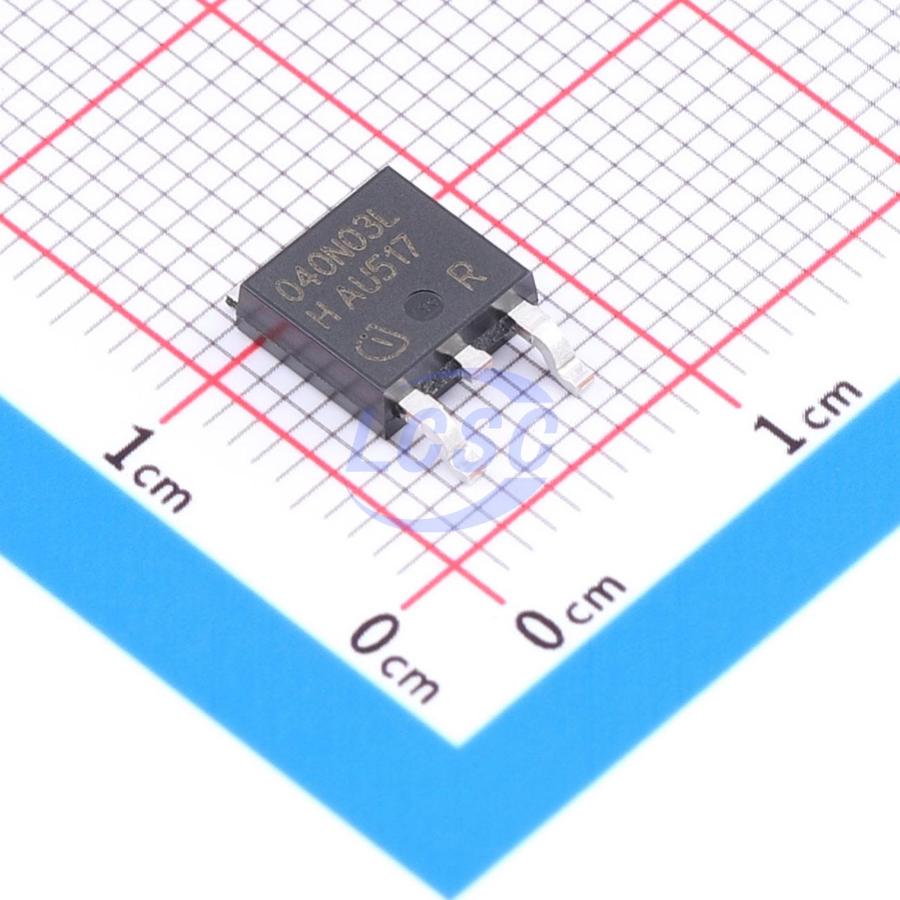

IPD040N03L G
79W 30V 90A 4mΩ@10V 1 N-channel N-Channel TO-252 Single FETs, MOSFETs RoHS
TO-252ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPD040N03L G
- Store part #
- C536713
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C536713
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹270.39 | ₹270.39 |
| 10+ | ₹236.43 | ₹2,364.30 |
| 30+ | ₹215.37 | ₹6,461.10 |
| 100+ | ₹193.45 | ₹19,345.00 |
| 500+ | ₹183.78 | ₹91,890.00 |
| 1,000+ | ₹179.48 | ₹1,79,480.00 |
1 × ₹270.39
₹270.39
excl. GST
₹319.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD040N03L G
₹270.39 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.1nF
- Ciss-Input Capacitance
- 3.9nF
- Pd - Power Dissipation
- 79W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.437 g
Overview
Key features
- Fast-switching MOSFET for SMPS
- Technology optimized for DC/DC converters
- JEDEC-compliant for target applications
- N-channel, logic level
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Ultra-low on-resistance RDS(on)
- Avalanche-rated
- Lead-free plating; RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SL30N02D#C5330391Slkor · TO-252(DPAK) | Slkor | TO-252(DPAK) | 50 | ₹24.90 · 50 in stock | View |
 | SWD030R03VLT#C5151843Samwin · TO-252 | Samwin | TO-252 | 200 | ₹30.05 · 200 in stock | View |
 | CMD150N04A#C5371859Cmos · TO-252 | Cmos | TO-252 | 310 | ₹49.18 · 310 in stock | View |
 | IRFR7540TRPBF-JSM#C55112059JSMSEMI · TO-252 | JSMSEMI | TO-252 | 500 | ₹64.62 · 500 in stock | View |
 | DE005TG-C#C54427971DOINGTER · TO-252 | DOINGTER | TO-252 | 1,285 | ₹31.75 · 1,285 in stock | View |
