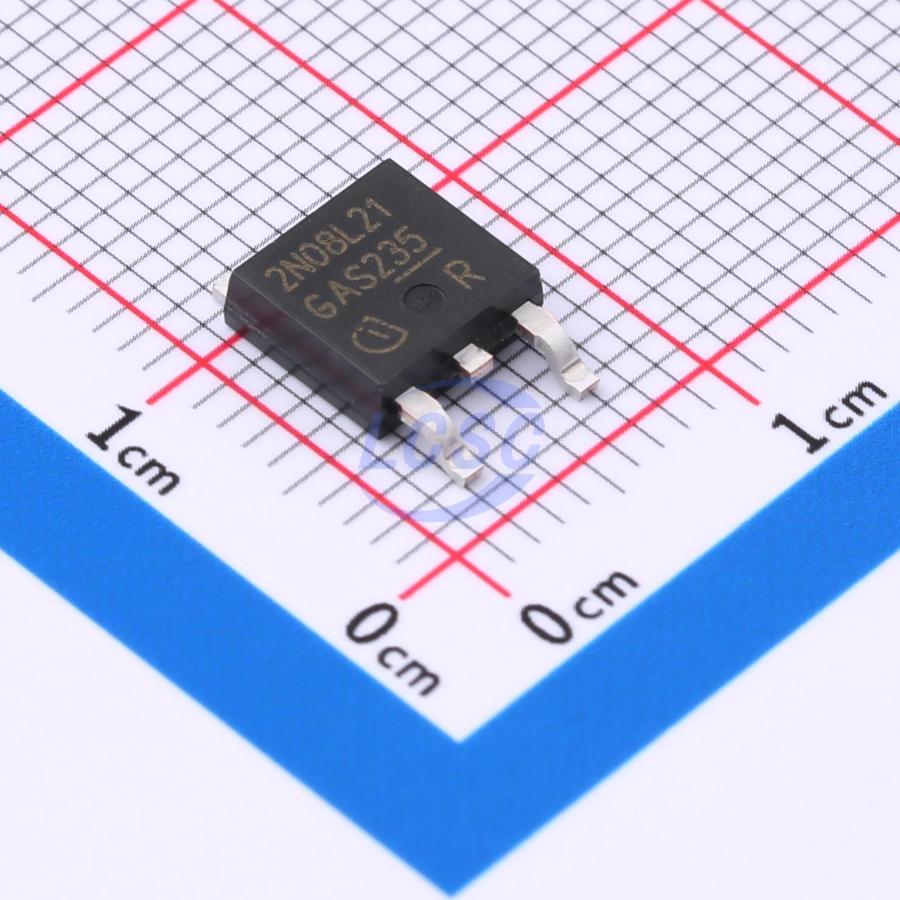

IPD30N08S2L21ATMA1
N-Channel 75V 30A 136W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET N-CH 75V 30A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IPD30N08S2L21ATMA1
- Store part #
- C3279073
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C3279073
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹244.25 | ₹244.25 |
| 10+ | ₹207.53 | ₹2,075.30 |
| 30+ | ₹184.70 | ₹5,541.00 |
| 100+ | ₹153.85 | ₹15,385.00 |
| 500+ | ₹143.20 | ₹71,600.00 |
| 1,000+ | ₹138.64 | ₹1,38,640.00 |
1 × ₹244.25
₹244.25
excl. GST
₹288.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD30N08S2L21ATMA1
₹244.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 400pF
- Ciss-Input Capacitance
- 1.65nF
- Pd - Power Dissipation
- 136W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 20.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 72nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
Key features
- N-channel Logic Level - Enhancement mode
- Automotive AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green package (lead free)
- Ultra low Rds(on)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD30N08S2-22#C536755Infineon · TO-252-3 | Infineon | TO-252-3 | 40 | ₹431.39 · 40 in stock | View |
 | IRFR3411TRPBF#C537965Infineon · DPAK(TO-252AA) | Infineon | DPAK(TO-252AA) | 289 | ₹113.82 · 289 in stock | View |
 | FDD3672#C903561onsemi · TO-252AA | onsemi | TO-252AA | 1,122 | ₹135.51 · 1,122 in stock | View |
 | SUD40N08-16-E3#C5346014VISHAY · TO-252 | VISHAY | TO-252 | 179 | ₹304.41 · 179 in stock | View |
 | IPD90N08S4-05#C536910Infineon · TO-252-3 | Infineon | TO-252-3 | 9 | ₹294.45 · 9 in stock | View |
