InfineonDatasheet (PDF)

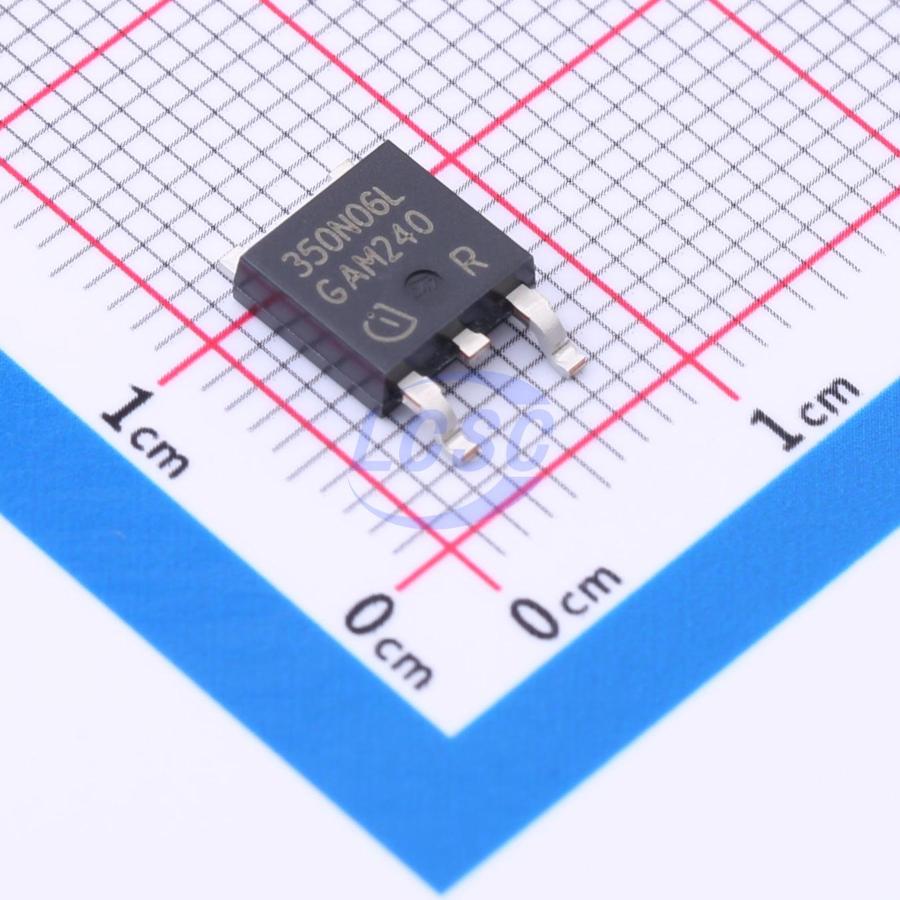

IPD350N06LGBTMA1
N-Channel 60V 29A 68W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET N-CH 60V 29A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IPD350N06LGBTMA1
- Store part #
- C3289137
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
58 in stock
#C3289137
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.11 | ₹76.11 |
| 10+ | ₹60.28 | ₹602.80 |
| 30+ | ₹53.34 | ₹1,600.20 |
| 100+ | ₹44.89 | ₹4,489.00 |
| 500+ | ₹41.20 | ₹20,600.00 |
| 1,000+ | ₹38.82 | ₹38,820.00 |
1 × ₹76.11
₹76.11
excl. GST
₹89.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD350N06LGBTMA1
₹76.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 29A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 68W
- Reverse Transfer Capacitance (Crss)
- 60pF
- RDS(on)
- 35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
Key features
- Suitable for fast switching converters and synchronous rectification
- N-channel enhancement mode
- Logic level
- Operating temperature up to 175°C
- Avalanche rated
- Lead-free lead plating, RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60N30TH#C22466826Siliup · TO-252 | Siliup | TO-252 | 1,875 | ₹16.13 · 1,875 in stock | View |
 | E060N035CL1#C29781169Existar · TO-252 | Existar | TO-252 | 485 | ₹13.31 · 485 in stock | View |
 | HSU6006#C701007HUASHUO · TO-252-2 | HUASHUO | TO-252-2 | 1,135 | ₹30.53 · 1,135 in stock | View |
 | MDD50N10D#C53069394MDD(Microdiode Semiconductor) · TO-252 | MDD(Microdiode Semiconductor) | TO-252 | 735 | ₹28.38 · 735 in stock | View |
 | STD30NF06LT4#C457508ST · DPAK | ST | DPAK | 4,037 | ₹144.41 · 4,037 in stock | View |
