HXY MOSFETDatasheet (PDF)

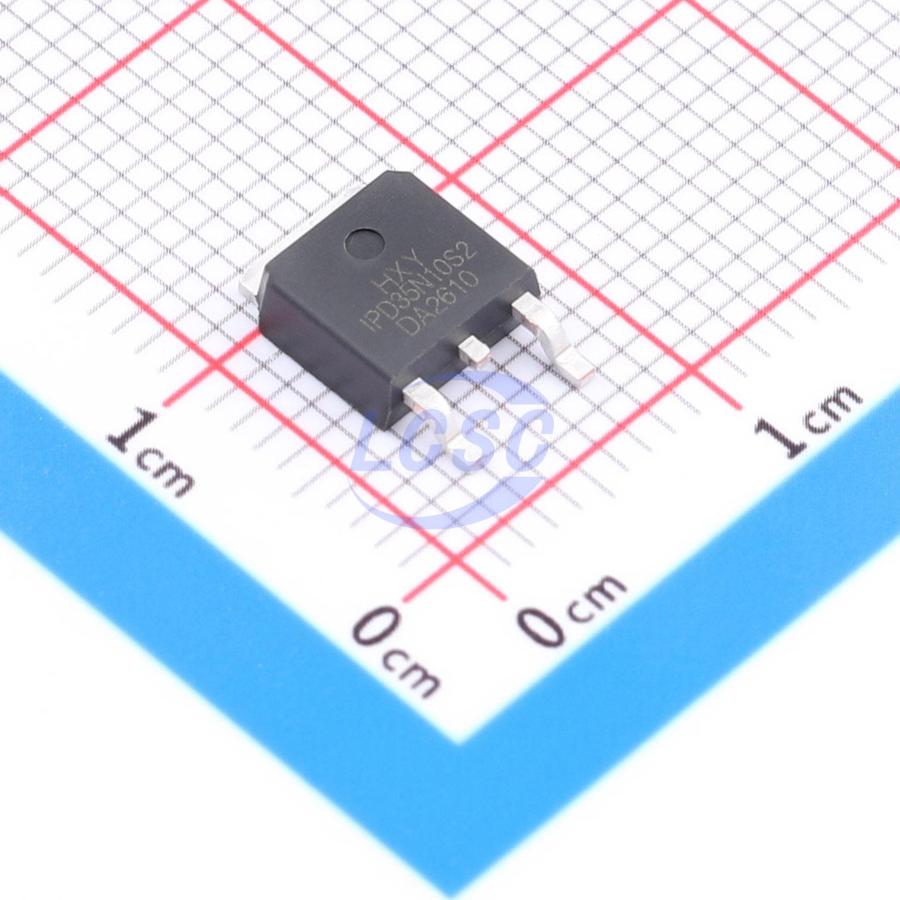

IPD35N10S3L26ATMA2-HXY
100V 40A 27W 15mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPD35N10S3L26ATMA2-HXY
- Store part #
- C54582566
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582566
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.42 | ₹161.42 |
| 10+ | ₹136.06 | ₹1,360.60 |
| 30+ | ₹121.87 | ₹3,656.10 |
| 100+ | ₹106.18 | ₹10,618.00 |
| 500+ | ₹88.35 | ₹44,175.00 |
| 1,000+ | ₹85.12 | ₹85,120.00 |
1 × ₹161.42
₹161.42
excl. GST
₹190.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD35N10S3L26ATMA2-HXY
₹161.42 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 40A
- Output Capacitance(Coss)
- 310pF
- Ciss-Input Capacitance
- 822pF
- Pd - Power Dissipation
- 27W
- Reverse Transfer Capacitance (Crss)
- 23.5pF
- RDS(on)
- 15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.396 g
Overview
IPD35N10S3L26ATMA2 utilizes advanced SGT MOSFET technology, delivering low on-state resistance (RDS(ON)), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced ruggedness.
Applications
- Consumer electronics power supplies
- Motor control
- Synchronous rectification
- Isolated DC
- Synchronous rectification applications
Key features
- Drain-source voltage (VDS) = 100V, drain current (ID) = 40A
- On-resistance (RDS(ON)) < 23mΩ at gate-source voltage (VGS) = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMT10H025LK3-13-HXY#C49420400HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 70 | ₹54.56 · 70 in stock | View |
 | DMT10H025SK3-13-HXY#C49420403HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 88 | ₹73.45 · 88 in stock | View |
 | SUD40N10-25-E3-HXY#C49420404HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 67 | ₹128.36 · 67 in stock | View |
 | DMTH10H025SK3-13-HXY#C49420405HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 85 | ₹65.94 · 85 in stock | View |
 | SQD40N10-25-T4_GE3-HXY#C49420407HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 171 | ₹62.08 · 171 in stock | View |
