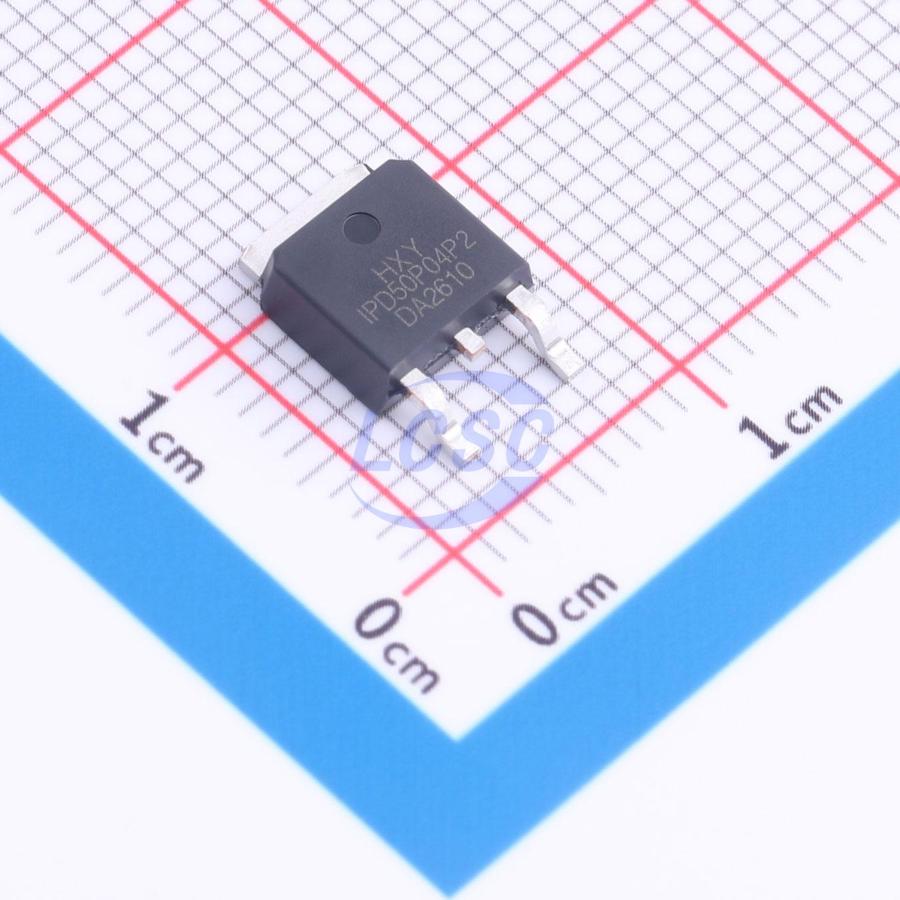

HXY MOSFETDatasheet (PDF)
IPD50P04P4L11ATMA2-HXY
40V 80A 81W 6.4mΩ@10V 1 P-Channel P-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPD50P04P4L11ATMA2-HXY
- Store part #
- C54582536
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
194 in stock
#C54582536
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.90 | ₹70.90 |
| 10+ | ₹56.81 | ₹568.10 |
| 30+ | ₹50.74 | ₹1,522.20 |
| 100+ | ₹43.16 | ₹4,316.00 |
| 500+ | ₹35.79 | ₹17,895.00 |
| 1,000+ | ₹33.62 | ₹33,620.00 |
1 × ₹70.90
₹70.90
excl. GST
₹83.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD50P04P4L11ATMA2-HXY
₹70.90 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 80A
- Output Capacitance(Coss)
- 430pF
- Ciss-Input Capacitance
- 5.295nF
- Pd - Power Dissipation
- 81W
- Reverse Transfer Capacitance (Crss)
- 385pF
- RDS(on)
- 6.4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.406 g
Overview
The IPD50P04P4L11ATMA2 utilizes advanced trench technology to deliver excellent on-state resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications. The package is TO-252-2L.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
- P-channel MOSFET
Key features
- Drain-Source Voltage (VDS) = -40V, Drain Current (ID) = -80A
- On-Resistance (RDS(ON)) < 8.2mΩ at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD85P04P4L06ATMA2-HXY#C48996543HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 192 | ₹156.58 · 192 in stock | View |
 | SQD90P04-9M4L_GE3-HXY#C48996544HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 7 | ₹212.26 · 7 in stock | View |
 | SUD50P04-08-GE3-HXY#C54582533HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 54 | ₹127.71 · 54 in stock | View |
 | DMP4015SK3-13-HXY#C54582534HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 535 | ₹68.31 · 535 in stock | View |
 | DMP4015SK3Q-13-HXY#C54582535HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹78.03 · 48 in stock | View |
