InfineonDatasheet (PDF)

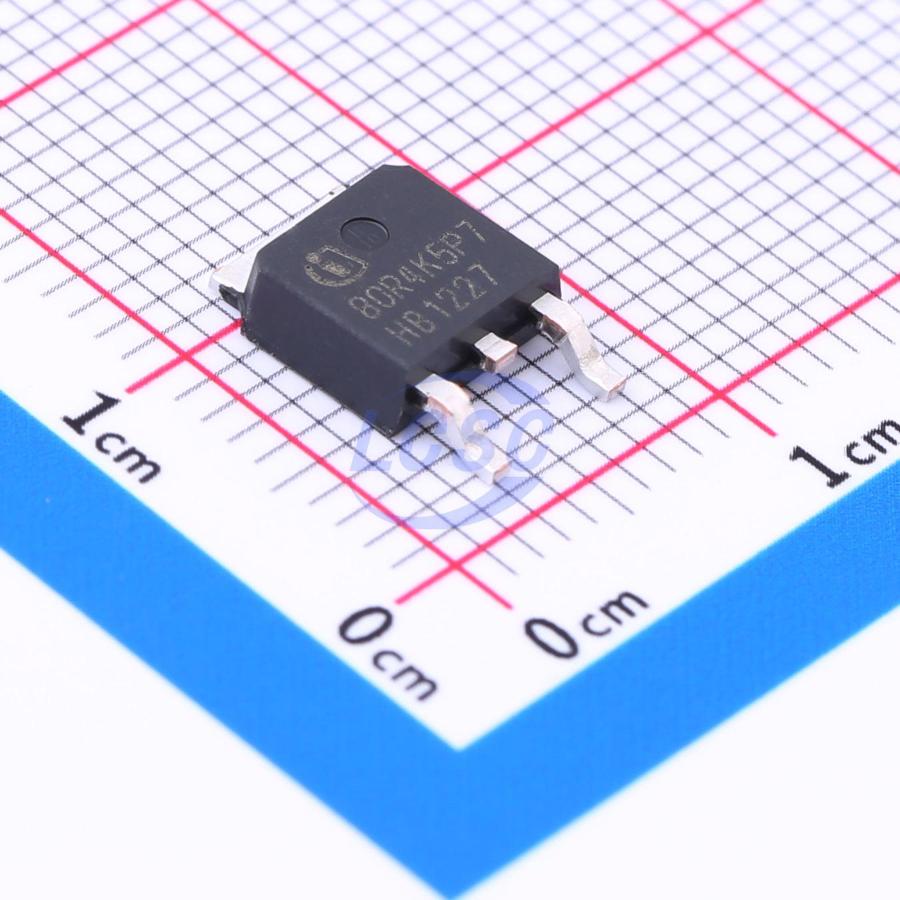

IPD80R4K5P7ATMA1
N-Channel 800V 1.5A 13W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET N-CH 800V 1.5A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IPD80R4K5P7ATMA1
- Store part #
- C3289124
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C3289124
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.19 | ₹88.19 |
| 10+ | ₹71.68 | ₹716.80 |
| 30+ | ₹63.42 | ₹1,902.60 |
| 100+ | ₹55.39 | ₹5,539.00 |
| 500+ | ₹48.22 | ₹24,110.00 |
| 1,000+ | ₹45.62 | ₹45,620.00 |
1 × ₹88.19
₹88.19
excl. GST
₹104.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD80R4K5P7ATMA1
₹88.19 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 3pF
- Current - Continuous Drain(Id)
- 1.5A
- Ciss-Input Capacitance
- 80pF
- Pd - Power Dissipation
- 13W
- Reverse Transfer Capacitance (Crss)
- 3pF
- RDS(on)
- 4.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.75 g
Overview
The latest 800V CoolMOS™ P7 series sets a new benchmark in 800V super junction technologies and combines best-in-class performance with state of the art ease-of-use, resulting from Infineon’s over 18 years pioneering super junction technology innovation.
Applications
- Recommended for hard and soft switching flyback topologies for LED Lighting, low power Chargers and Adapters, Audio, AUX power and Industrial power.
- Also suitable for PFC stage in Consumer applications and Solar.
Key features
- Best-in-class FOM RDS(on) * Eoss; reduced Qg, Ciss, and Coss
- Best-in-class DPAK RDS(on)
- Best-in-class V(GS)th of 3V and smallest V(GS)th variation of ±0.5V
- Integrated Zener Diode ESD protection
- Fully optimized portfolio
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP2N80TH#C42372390Siliup · TO-252 | Siliup | TO-252 | 50 | ₹28.14 · 50 in stock | View |
 | IPD80R3K3P7#C536887Infineon · TO-252-3 | Infineon | TO-252-3 | 74 | ₹54.43 · 74 in stock | View |
 | MS5N100FD#C5139245MASPOWER · TO-252 | MASPOWER | TO-252 | 197 | ₹93.44 · 197 in stock | View |
 | IPD80R2K4P7#C536883Infineon · TO-252-3 | Infineon | TO-252-3 | 7 | ₹136.90 · 7 in stock | View |
 | WMO2N100D1#C39117696Wayon · TO-252 | Wayon | TO-252 | 2,680 | ₹41.83 · 2,680 in stock | View |
