HXY MOSFETDatasheet (PDF)

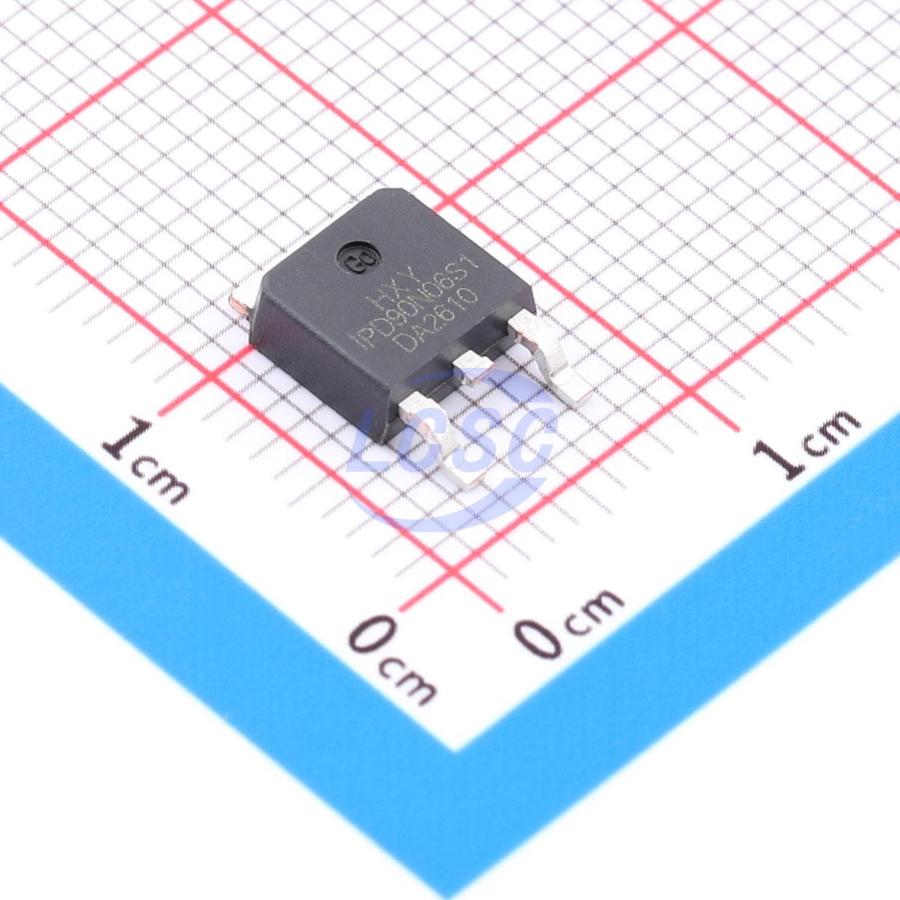

IPD90N06S4L03ATMA1-HXY
60V 130A 140W 3mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IPD90N06S4L03ATMA1-HXY
- Store part #
- C54582525
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C54582525
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹195.66 | ₹195.66 |
| 10+ | ₹164.73 | ₹1,647.30 |
| 30+ | ₹147.77 | ₹4,433.10 |
| 100+ | ₹128.44 | ₹12,844.00 |
| 500+ | ₹119.85 | ₹59,925.00 |
| 1,000+ | ₹115.97 | ₹1,15,970.00 |
1 × ₹195.66
₹195.66
excl. GST
₹230.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD90N06S4L03ATMA1-HXY
₹195.66 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.666nF
- Current - Continuous Drain(Id)
- 130A
- Ciss-Input Capacitance
- 5.377nF
- Pd - Power Dissipation
- 140W
- Reverse Transfer Capacitance (Crss)
- 77.7pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
IPD90N06S4L03ATMA1 utilizes advanced SGT MOSFET technology, delivering low on-state resistance (RDS(ON)), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability.
Applications
- Consumer electronics power supplies, motor control, synchronous rectification, isolated DC, synchronous rectification applications
Key features
- Drain-source voltage (VDS) = 60V, drain current (ID) = 130A
- On-resistance (RDS(ON)) < 3.5mΩ at gate-source voltage (VGS) = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH6004SK3Q-13-HXY#C48972053HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 68 | ₹113.00 · 68 in stock | View |
 | DMTH6004SK3-13-HXY#C48972054HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 190 | ₹88.91 · 190 in stock | View |
 | SQD50034E_GE3-HXY#C48972055HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 52 | ₹105.62 · 52 in stock | View |
 | IPD034N06N3GATMA1-HXY#C54582426HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 34 | ₹90.89 · 34 in stock | View |
 | IPD100N06S403ATMA2-HXY#C54582431HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 39 | ₹195.66 · 39 in stock | View |
