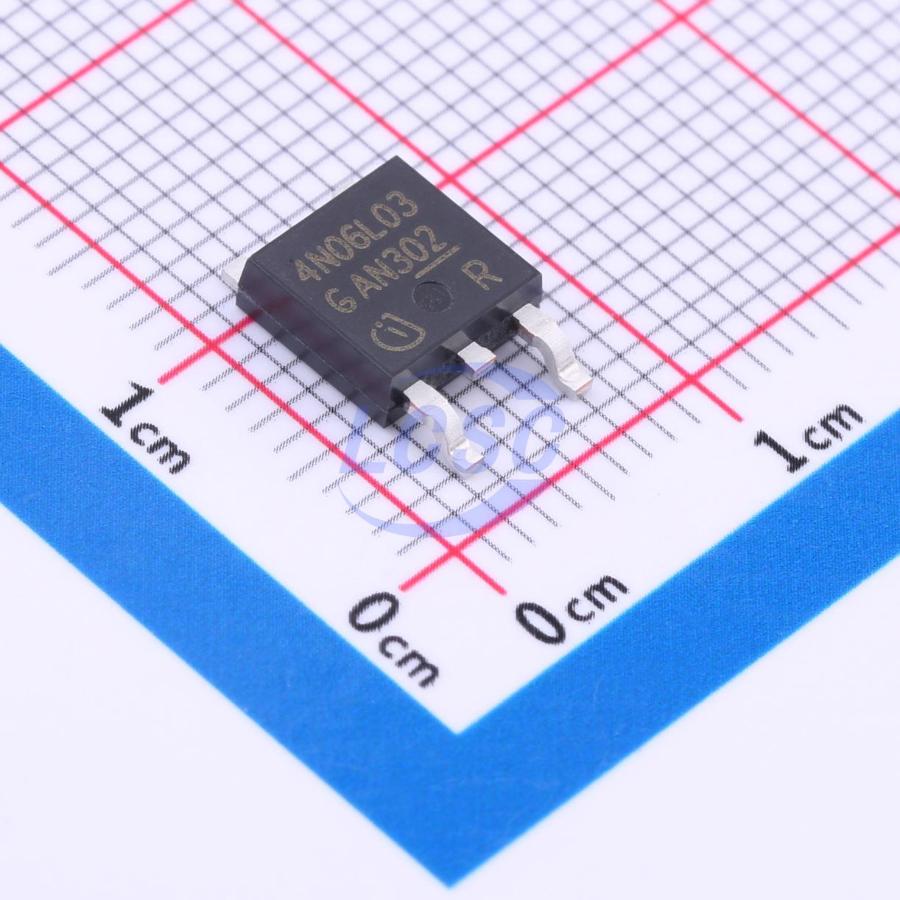

IPD90N06S4L03ATMA2
150W 60V 90A 3.5mΩ@10V 1 N-channel N-Channel TO-252 Single FETs, MOSFETs RoHS
TO-252ROHS3 CompliantActive
MOSFET N-CH 60V 90A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IPD90N06S4L03ATMA2
- Store part #
- C3279071
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C3279071
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹305.52 | ₹305.52 |
| 10+ | ₹259.03 | ₹2,590.30 |
| 30+ | ₹229.91 | ₹6,897.30 |
| 100+ | ₹200.14 | ₹20,014.00 |
| 500+ | ₹186.66 | ₹93,330.00 |
| 1,000+ | ₹180.80 | ₹1,80,800.00 |
1 × ₹305.52
₹305.52
excl. GST
₹360.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD90N06S4L03ATMA2
₹305.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.68nF
- Ciss-Input Capacitance
- 13nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 3.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 170nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
Key features
- N-Channel - Enhancement Mode
- AEC Q101 Qualified
- Moisture Sensitivity Level 1 (MSL1), 260°C Peak Reflow Temperature
- 175°C Operating Temperature
- Green Product (RoHS Compliant)
- 100% Avalanche Tested
- Ultra-Low On-State Resistance (RDS(on))
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD90N06S4L-TP#C51939571TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 495 | ₹38.49 · 495 in stock | View |
 | IPD90N06S404ATMA2#C3289153Infineon · TO-252 | Infineon | TO-252 | 1,963 | ₹270.75 · 1,963 in stock | View |
 | IPD031N06L3GATMA1#C672058Infineon · TO-252 | Infineon | TO-252 | 443 | ₹250.93 · 443 in stock | View |
 | TK90S06N1L,LXHQ#C7400279TOSHIBA · DPAK | TOSHIBA | DPAK | 6 | ₹160.37 · 6 in stock | View |
 | IRLR3636TRLPBF#C538172Infineon · DPAK | Infineon | DPAK | 20 | ₹164.07 · 20 in stock | View |
