InfineonDatasheet (PDF)

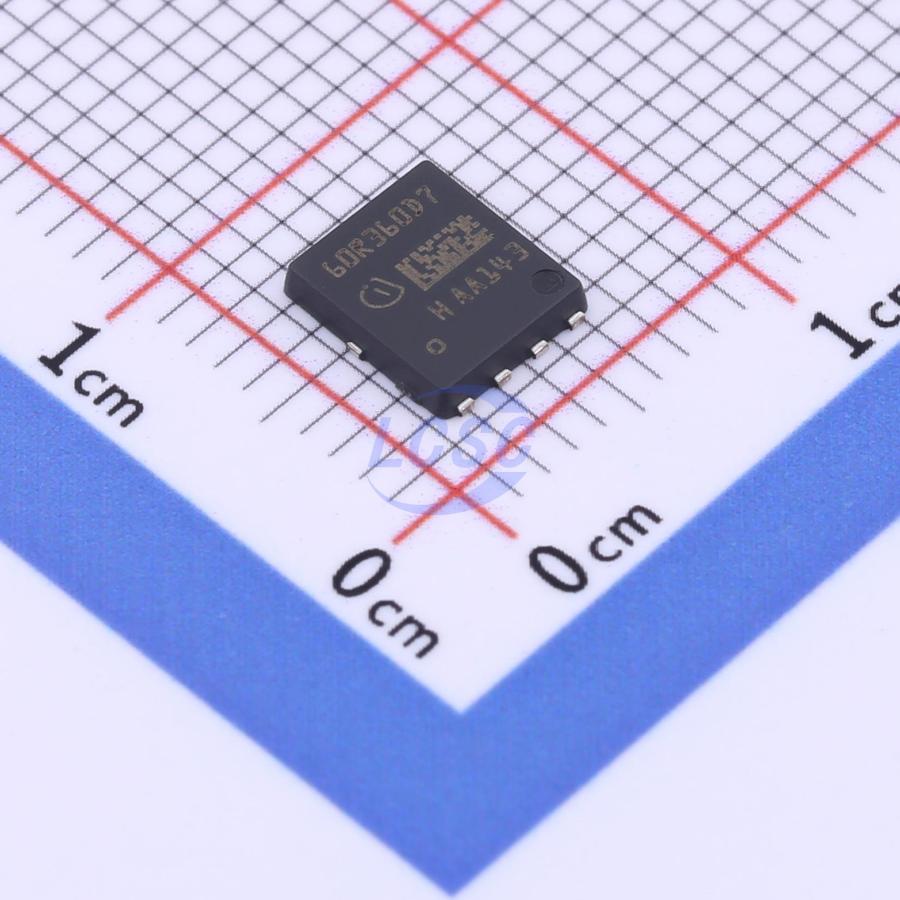

IPLK60R360PFD7
N-Channel 600V 13A 74W Surface Mount TDSON-8-EP(5x6)
TDSON-8-EP(5x6)ROHS3 CompliantActive
MOSFET N-CH 600V 13A TDSON-8-EP(5x6)
- Manufacturer
- Infineon
- Manufacturer part #
- IPLK60R360PFD7
- Store part #
- C537054
- Package / case
- TDSON-8-EP(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C537054
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.79 | ₹205.79 |
| 10+ | ₹174.72 | ₹1,747.20 |
| 30+ | ₹157.54 | ₹4,726.20 |
| 100+ | ₹116.69 | ₹11,669.00 |
| 500+ | ₹108.01 | ₹54,005.00 |
| 1,000+ | ₹104.09 | ₹1,04,090.00 |
1 × ₹205.79
₹205.79
excl. GST
₹242.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IPLK60R360PFD7
₹205.79 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 12pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 534pF
- Pd - Power Dissipation
- 74W
- RDS(on)
- 360mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.7nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The latest CoolMOS™ M PFD7 is an optimized platform tailored for cost-sensitive applications in the consumer market, such as chargers, adapters, motor drives, and lighting. This new series combines all the advantages of fast-switching SJ MOSFETs with an excellent price-to-performance ratio and advanced ease of use. The technology complies with the highest efficiency standards, supports high power density, and enables customers to achieve very slim and compact designs.
Applications
- Zero Voltage Switching (ZVS) topology for high-density chargers
- Adapters
- Lighting
- Motor drive applications
Key features
- Extremely low losses due to ultra-low figures of merit RDS(on) * Qg and RDS(on) * Eoss
- Low switching loss Eoss with excellent thermal performance
- Fast body diode
- Wide selection of RDS(on) and package types
- Integrated Zener diode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DON15N65S#C53059089DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 4,967 | ₹93.88 · 4,967 in stock | View |
 | BMS65N340C1#C52269248Bestirpower · DFN-8(5x6) | Bestirpower | DFN-8(5x6) | 558 | ₹94.32 · 558 in stock | View |
 | CMSA65R280Q#C5203967Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 208 | ₹107.76 · 208 in stock | View |
| SIHJ240N60E-T1-GE3#C3279548VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | On request | ₹234.62 · 0 in stock | View | |
