InfineonDatasheet (PDF)

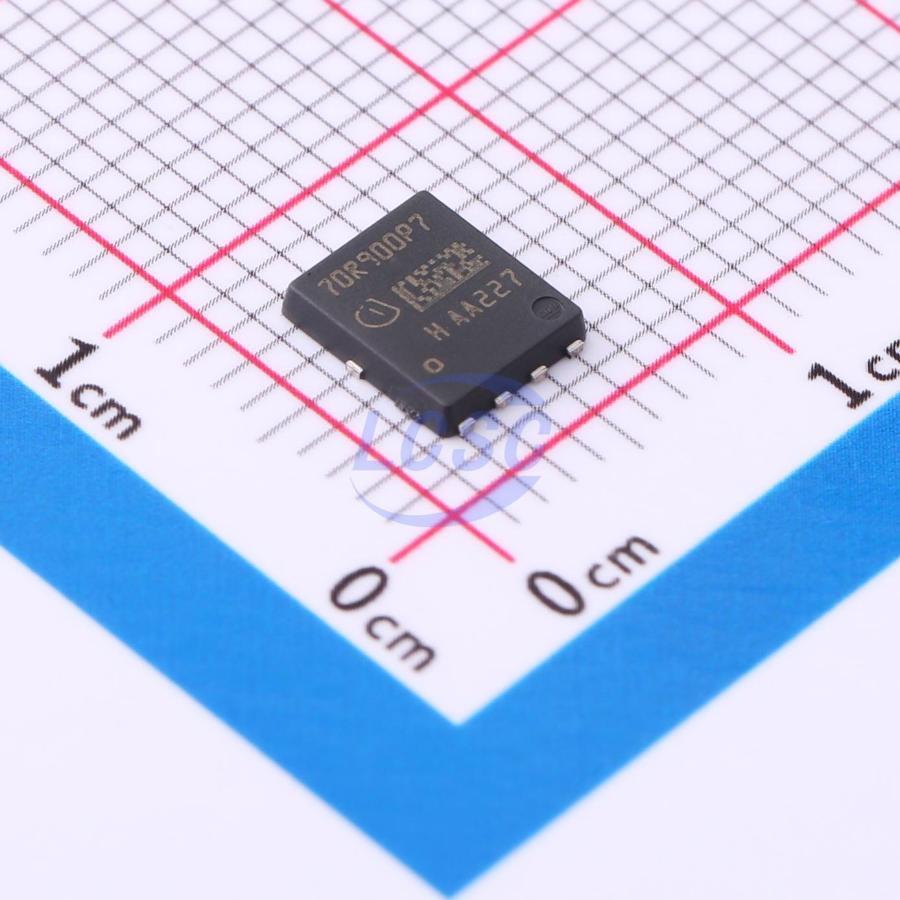

IPLK70R900P7ATMA1
N-Channel 700V 5.7A 32.1W Surface Mount TDSON-8
TDSON-8ROHS3 CompliantDiscontinued
MOSFET N-CH 700V 5.7A TDSON-8
- Manufacturer
- Infineon
- Manufacturer part #
- IPLK70R900P7ATMA1
- Store part #
- C3278629
- Package / case
- TDSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3278629
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹404.81 | ₹404.81 |
| 10+ | ₹346.03 | ₹3,460.30 |
| 30+ | ₹309.21 | ₹9,276.30 |
| 100+ | ₹271.53 | ₹27,153.00 |
| 500+ | ₹254.31 | ₹1,27,155.00 |
| 1,000+ | ₹246.98 | ₹2,46,980.00 |
1 × ₹404.81
₹404.81
excl. GST
₹477.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IPLK70R900P7ATMA1
₹404.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 700V
- Output Capacitance(Coss)
- 5pF
- Current - Continuous Drain(Id)
- 5.7A
- Ciss-Input Capacitance
- 211pF
- Pd - Power Dissipation
- 32.1W
- Reverse Transfer Capacitance (Crss)
- 177pF
- RDS(on)
- 900mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. The latest CoolMOS™ P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV, etc. The new series provides all the benefits of a fast switching Superjunction MOSFET, combined with an excellent price/performance ratio and state of the art ease-of-use level. The technology meets highest efficiency standards and supports high power density, enabling customers going towards very slim designs.
Applications
- Recommended for Flyback topologies in Chargers and Adapters
Key features
- Extremely low losses due to very low FOM RDS(on)*Qg and RDS(on)*Eoss
- Excellent thermal behavior
- Integrated ESD protection diode
- Low switching losses (Eoss)
- Fully qualified acc. JEDEC for Industrial Applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| STL13N65M2#C2970905ST · VDFN-8-Power | ST | VDFN-8-Power | 100 | ₹152.95 · 100 in stock | View | |
| STL18N65M2#C2970653ST · VDFN-8-Power | ST | VDFN-8-Power | 681 | ₹144.52 · 681 in stock | View | |
 | STL11N65M5#C2965302ST · VDFN-8-Power | ST | VDFN-8-Power | 10 | ₹708.02 · 10 in stock | View |
