MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
InfineonDatasheet (PDF)

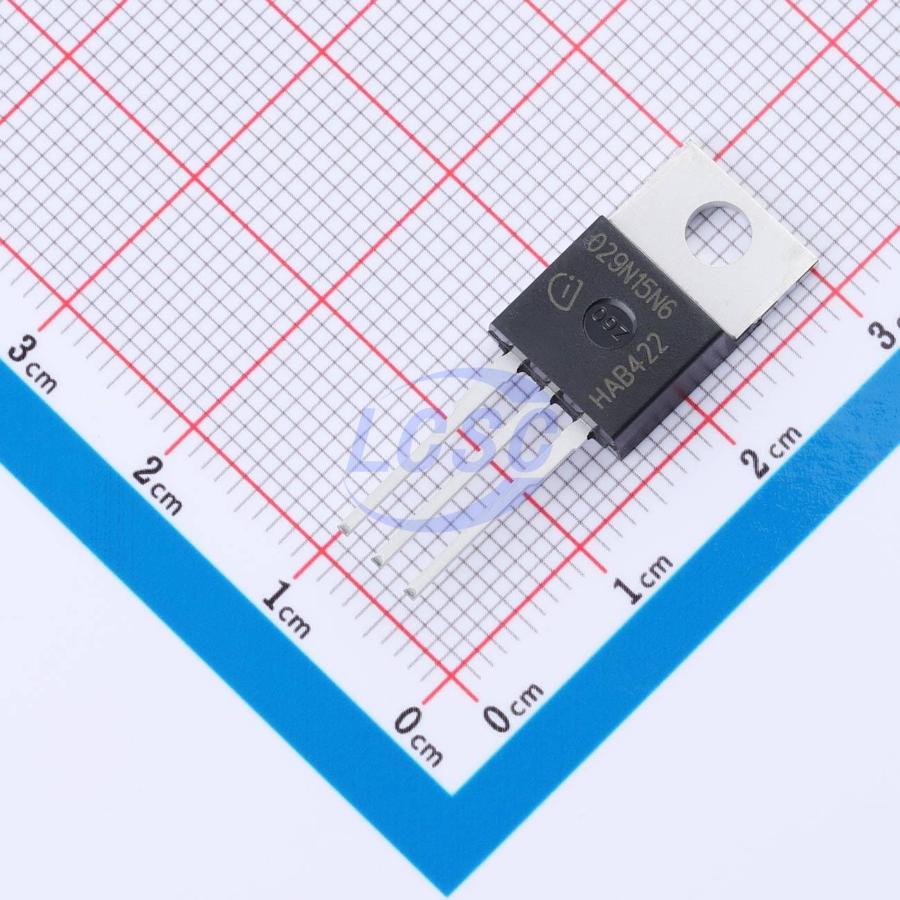

IPP029N15NM6AKSA1
395W 150V 197A 2.4mΩ@15V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPP029N15NM6AKSA1
- Store part #
- C31726684
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
104 in stock
#C31726684
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹924.50 | ₹924.50 |
| 10+ | ₹789.42 | ₹7,894.20 |
| 30+ | ₹707.25 | ₹21,217.50 |
| 100+ | ₹638.31 | ₹63,831.00 |
1 × ₹924.50
₹924.50
excl. GST
₹1,090.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPP029N15NM6AKSA1
₹924.50 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.3nF
- Ciss-Input Capacitance
- 7.6nF
- Pd - Power Dissipation
- 395W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 197A
- Reverse Transfer Capacitance (Crss)
- 25pF
- RDS(on)
- 2.4mΩ@15V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.29 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP015N03BGHTQ#C42372367Siliup · TO-220-3L | Siliup | TO-220-3L | 109 | ₹250.38 · 109 in stock | View |
| HSP1502#C42376814HUASHUO · TO-220 | HUASHUO | TO-220 | 26 | ₹304.95 · 26 in stock | View | |
 | XRS180N15T#C54741585XNRUSEMI · TO-220AB | XNRUSEMI | TO-220AB | 3 | ₹164.57 · 3 in stock | View |
 | MDP14N050TH#C51891807MagnaChip Semicon · TO-220 | MagnaChip Semicon | TO-220 | 404 | ₹146.14 · 404 in stock | View |
 | MSE003C#C47361114MIRACLE POWER · TO-220 | MIRACLE POWER | TO-220 | 2 | ₹218.37 · 2 in stock | View |
