InfineonDatasheet (PDF)

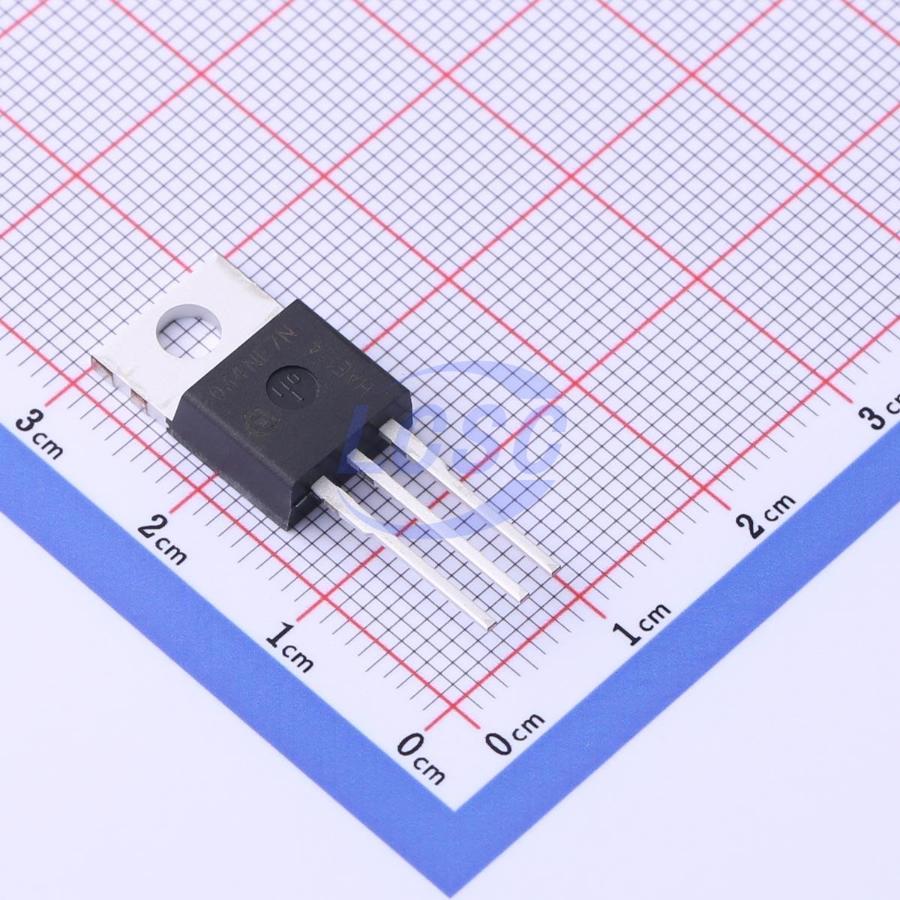

IPP034NE7N3 G
N-Channel 75V 100A 214W Through Hole TO-220-3
TO-220-3ROHS CompliantActive
MOSFET N-CH 75V 100A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP034NE7N3 G
- Store part #
- C537124
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C537124
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,170.55 | ₹1,170.55 |
| 10+ | ₹1,047.62 | ₹10,476.20 |
| 30+ | ₹972.82 | ₹29,184.60 |
| 100+ | ₹909.84 | ₹90,984.00 |
1 × ₹1,170.55
₹1,170.55
excl. GST
₹1,381.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPP034NE7N3 G
₹1,170.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.38nF
- Ciss-Input Capacitance
- 8.13nF
- Pd - Power Dissipation
- 214W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 66pF
- RDS(on)
- 3.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 117nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.9 g
Overview
Key features
- Optimized synchronous rectification technology
- Ideal for high-frequency switching and DC/DC converters
- Excellent gate charge × on-resistance RDS(on) product (figure of merit FOM)
- Ultra-low on-resistance RDS(on)
- N-channel, normal level
- 100% avalanche tested
- Lead-free plating; RoHS compliant, halogen-free
- JEDEC qualified for target applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP034NE7N3G#C3278840Infineon · TO-220-3 | Infineon | TO-220-3 | 290 | ₹305.08 · 290 in stock | View |
 | SSP1991#C718952Shanghai Super Semiconductor · TO-220 | Shanghai Super Semiconductor | TO-220 | 1 | ₹126.45 · 1 in stock | View |
 | NCEP028N85#C2686639NCE · TO-220 | NCE | TO-220 | 88 | ₹264.16 · 88 in stock | View |
 | CRST040N10N#C467175CRMICRO · TO-220 | CRMICRO | TO-220 | 3,948 | ₹118.43 · 3,948 in stock | View |
 | NCEP85T16#C503003NCE · TO-220-3L | NCE | TO-220-3L | 277 | ₹248.91 · 277 in stock | View |
