InfineonDatasheet (PDF)

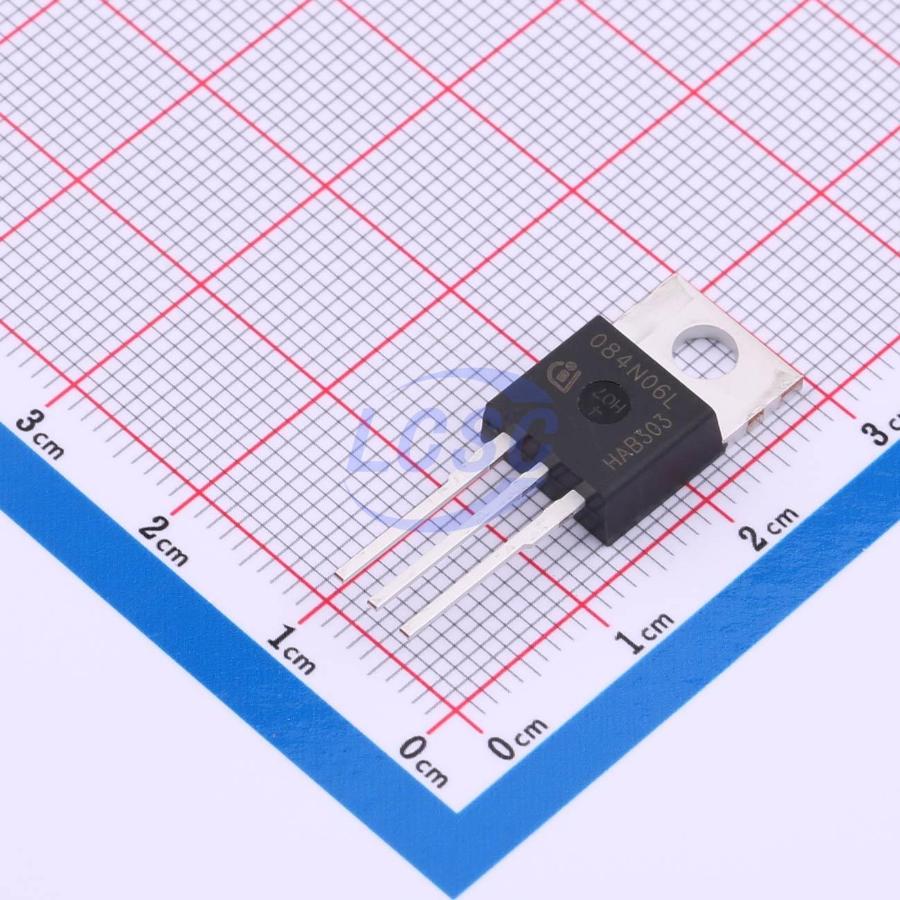

IPP084N06L3 G
N-Channel 60V 50A 79W Through Hole TO-220-3
TO-220-3ROHS CompliantActive
MOSFET N-CH 60V 50A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP084N06L3 G
- Store part #
- C537147
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C537147
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹231.05 | ₹231.05 |
| 10+ | ₹197.40 | ₹1,974.00 |
| 50+ | ₹176.53 | ₹8,826.50 |
| 100+ | ₹155.03 | ₹15,503.00 |
| 500+ | ₹145.23 | ₹72,615.00 |
| 1,000+ | ₹140.98 | ₹1,40,980.00 |
1 × ₹231.05
₹231.05
excl. GST
₹272.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP084N06L3 G
₹231.05 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 690pF
- Ciss-Input Capacitance
- 4.9nF
- Pd - Power Dissipation
- 79W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 31pF
- RDS(on)
- 8.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.047 g
Overview
Key features
- Ideal for high frequency switching and sync. rec.
- Optimized technology for DC/DC converters
- Excellent gate charge x RDS(on) product (FOM)
- N-channel, logic level
- 100% avalanche tested
- Pb-free plating; RoHS compliant
- Qualified according to JEDEC1) for target applications
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF60B217#C459972Infineon · TO-220AB | Infineon | TO-220AB | 5 | ₹491.63 · 5 in stock | View |
 | IPP50N10S3L-16-VB#C22389923VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 9 | ₹136.96 · 9 in stock | View |
 | PSMN7R8-120PS127-VB#C52191060VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹159.36 · 5 in stock | View |
 | PSMN7R0-100PS,127-VB#C52191061VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹157.62 · 5 in stock | View |
 | BUK9515-100A127-VB#C52191062VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹157.62 · 5 in stock | View |
