InfineonDatasheet (PDF)

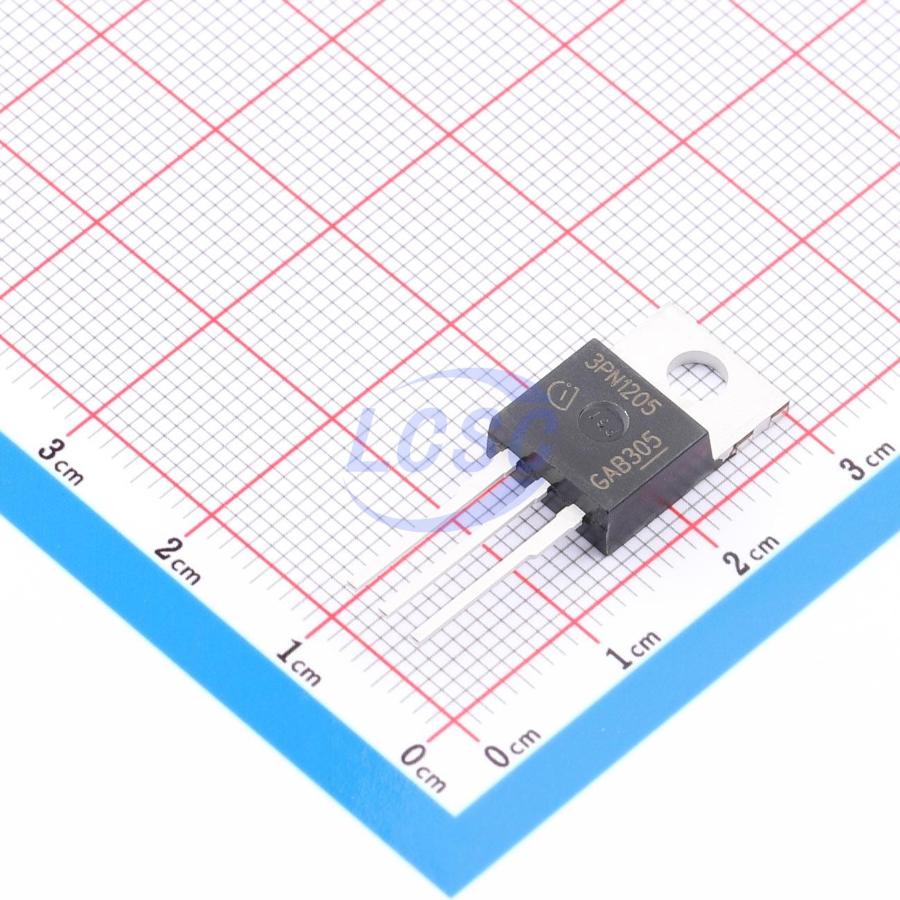

IPP100N12S3-05
300W 120V 100A 4.8mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPP100N12S3-05
- Store part #
- C537155
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C537155
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹731.01 | ₹731.01 |
| 10+ | ₹718.32 | ₹7,183.20 |
| 30+ | ₹709.74 | ₹21,292.20 |
| 100+ | ₹701.14 | ₹70,114.00 |
1 × ₹731.01
₹731.01
excl. GST
₹862.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPP100N12S3-05
₹731.01 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.52nF
- Ciss-Input Capacitance
- 11.57nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 120V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 330pF
- RDS(on)
- 4.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 185nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.67 g
Overview
Key features
- OptiMOS - power MOSFET for automotive applications
- N-channel - Enhancement mode
- Automotive AEC Q101 qualified
- MSL1 up to 260℃ peak reflow
- 175℃ operating temperature
- Green product (RoHS compliant)
- 100% Avalanche tested
