InfineonDatasheet (PDF)

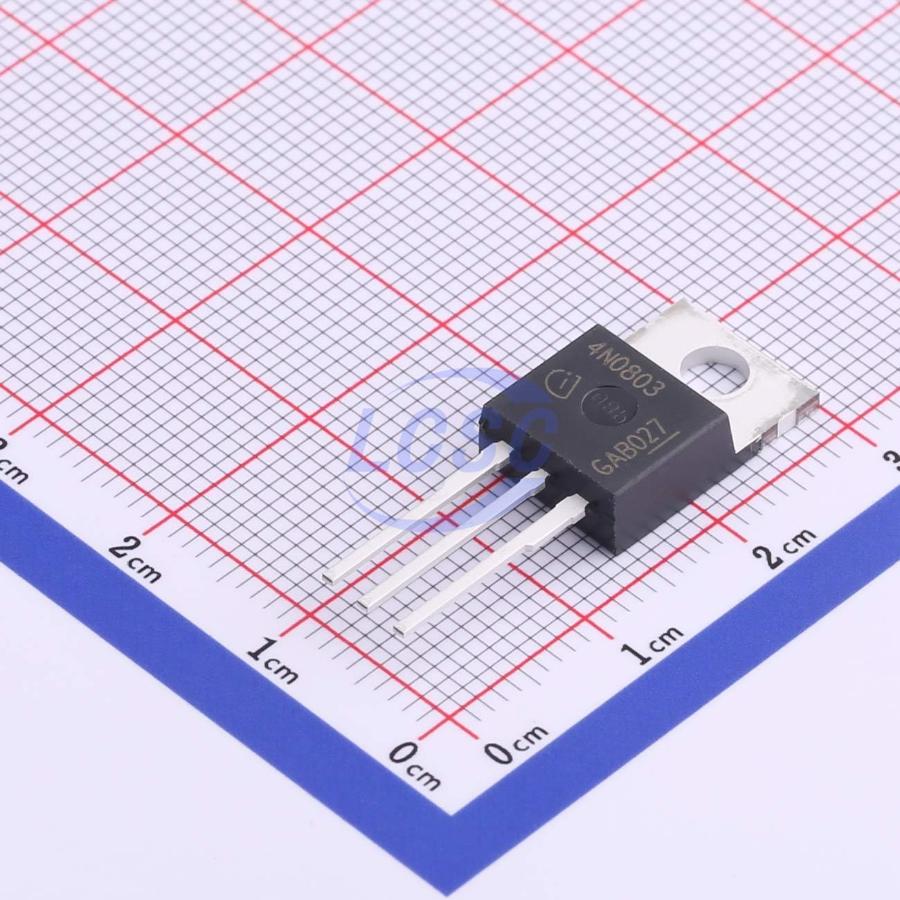

IPP120N08S4-03
N-Channel 80V 120A 278W Through Hole TO-220-3
TO-220-3ROHS CompliantActive
MOSFET N-CH 80V 120A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP120N08S4-03
- Store part #
- C537159
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
32 in stock
#C537159
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹769.47 | ₹769.47 |
| 10+ | ₹667.57 | ₹6,675.70 |
| 50+ | ₹605.44 | ₹30,272.00 |
| 100+ | ₹553.37 | ₹55,337.00 |
1 × ₹769.47
₹769.47
excl. GST
₹907.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP120N08S4-03
₹769.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.435nF
- Ciss-Input Capacitance
- 11.55nF
- Pd - Power Dissipation
- 278W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 354pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 128nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.82 g
Overview
Key features
- N-channel - Enhancement mode
- AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AUP026N085#C18722991ANHI · TO-220 | ANHI | TO-220 | 235 | ₹160.89 · 235 in stock | View |
 | IPP120N08S403AKSA1#C7210882Infineon · TO-220-3 | Infineon | TO-220-3 | 5 | ₹1,600.59 · 5 in stock | View |
 | HYG028N10NS1P#C2932575HUAYI · TO-220FB-3L | HUAYI | TO-220FB-3L | 224 | ₹150.37 · 224 in stock | View |
 | SE100180GA#C359175SINO-IC · TO-220 | SINO-IC | TO-220 | 4 | ₹138.39 · 4 in stock | View |
 | AOT472-VB#C22389555VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹247.31 · 8 in stock | View |
