InfineonDatasheet (PDF)

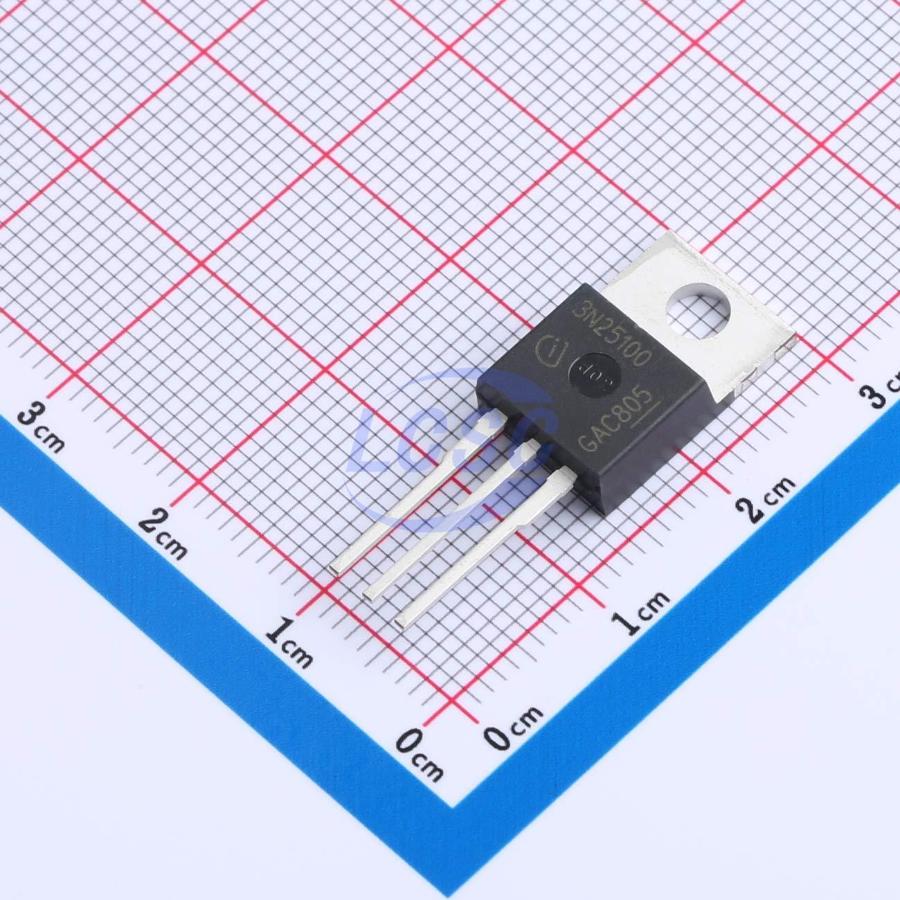

IPP17N25S3100AKSA1
107W 250V 17A 100mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS CompliantActive
MOSFET N-CH 250V 17A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP17N25S3100AKSA1
- Store part #
- C3288978
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C3288978
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹438.07 | ₹438.07 |
| 10+ | ₹372.45 | ₹3,724.50 |
| 50+ | ₹333.34 | ₹16,667.00 |
| 100+ | ₹293.79 | ₹29,379.00 |
| 500+ | ₹275.54 | ₹1,37,770.00 |
| 1,000+ | ₹267.29 | ₹2,67,290.00 |
1 × ₹438.07
₹438.07
excl. GST
₹516.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP17N25S3100AKSA1
₹438.07 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 625pF
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 107W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 23pF
- RDS(on)
- 100mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Key features
- N-channel - Enhancement mode
- AEC qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
