InfineonDatasheet (PDF)

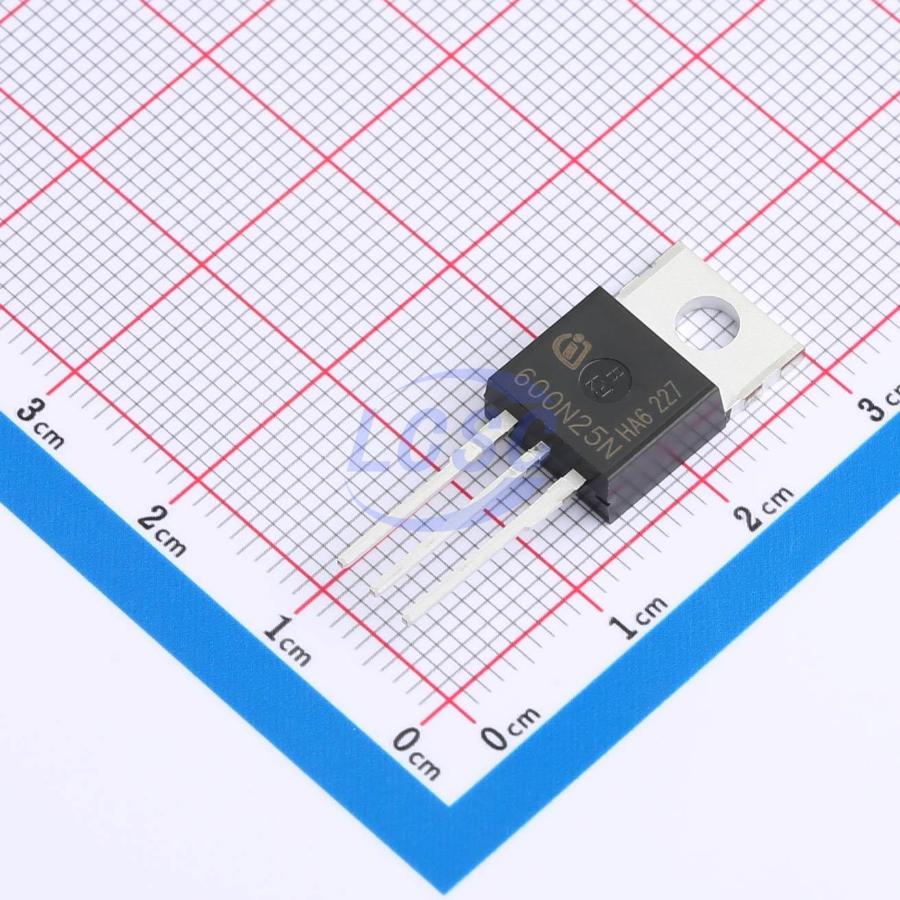

IPP600N25N3GXKSA1
N-Channel 250V 25A 136W Through Hole TO-220-3
TO-220-3ROHS3 CompliantActive
MOSFET N-CH 250V 25A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP600N25N3GXKSA1
- Store part #
- C6879770
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C6879770
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹566.55 | ₹566.55 |
| 10+ | ₹507.78 | ₹5,077.80 |
| 50+ | ₹470.92 | ₹23,546.00 |
| 100+ | ₹433.41 | ₹43,341.00 |
| 500+ | ₹416.30 | ₹2,08,150.00 |
| 1,000+ | ₹408.91 | ₹4,08,910.00 |
1 × ₹566.55
₹566.55
excl. GST
₹668.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP600N25N3GXKSA1
₹566.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 112pF
- Ciss-Input Capacitance
- 2.35nF
- Pd - Power Dissipation
- 136W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 25A
- Reverse Transfer Capacitance (Crss)
- 149pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 29nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.109 g
Overview
Key features
- N-channel, normally-on
- Excellent gate charge × RDS(on) product (figure of merit)
- Ultra-low on-resistance RDS(on)
- Operating temperature up to 175°C
- Lead-free pin plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
- Suitable for high-frequency switching and synchronous rectification
