InfineonDatasheet (PDF)

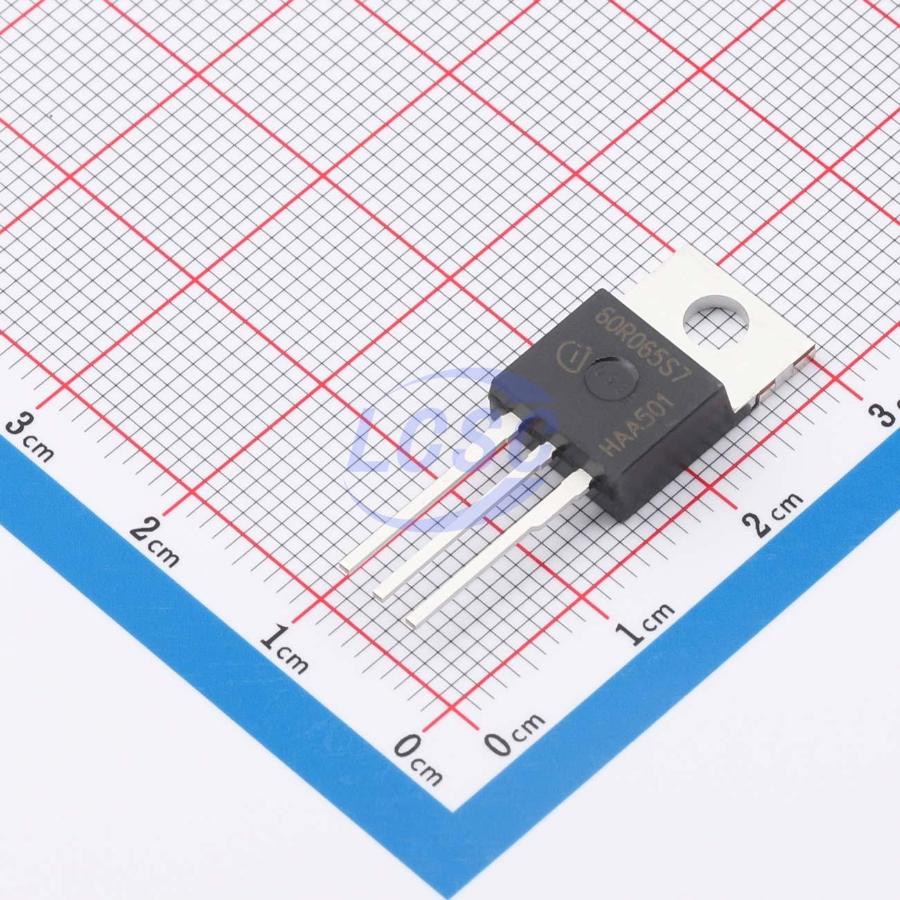

IPP60R065S7XKSA1
167W 600V 8A 65mΩ 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
600V, Current:126A, Breakdown Voltage:600V
- Manufacturer
- Infineon
- Manufacturer part #
- IPP60R065S7XKSA1
- Store part #
- C3282155
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3282155
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹806.24 | ₹806.24 |
| 10+ | ₹795.06 | ₹7,950.60 |
| 30+ | ₹787.54 | ₹23,626.20 |
| 100+ | ₹780.01 | ₹78,001.00 |
1 × ₹806.24
₹806.24
excl. GST
₹951.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPP60R065S7XKSA1
₹806.24 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 32pF
- Ciss-Input Capacitance
- 1.932nF
- Pd - Power Dissipation
- 167W
- Configuration
- Standalone
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 8A
- Reverse Transfer Capacitance (Crss)
- 904pF
- RDS(on)
- 65mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@12V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.06 g
Overview
The IPP60R065S7 offers the best cost-performance ratio for low-frequency switching applications. As a high-voltage superjunction MOSFET, CoolMOS™ S7 features an ultra-low on-resistance (Rdson), significantly improving energy efficiency. CoolMOS™ S7 is optimized for "static switching" and high-current applications. It is ideal for solid-state relay and circuit breaker designs, as well as line rectification in SMPS and inverter topologies.
Applications
- Solid state relays and circuit breakers
- Line rectification in high-power/high-performance applications such as computers, telecommunications, UPS, and solar energy
Key features
- CoolMOS™ S7 technology achieving 65mΩ RDS(on) in minimal package size
- Optimized cost-performance ratio for low-frequency switching applications
- High pulse current capability
- TO220 package with fully lead-free die attach
