InfineonDatasheet (PDF)

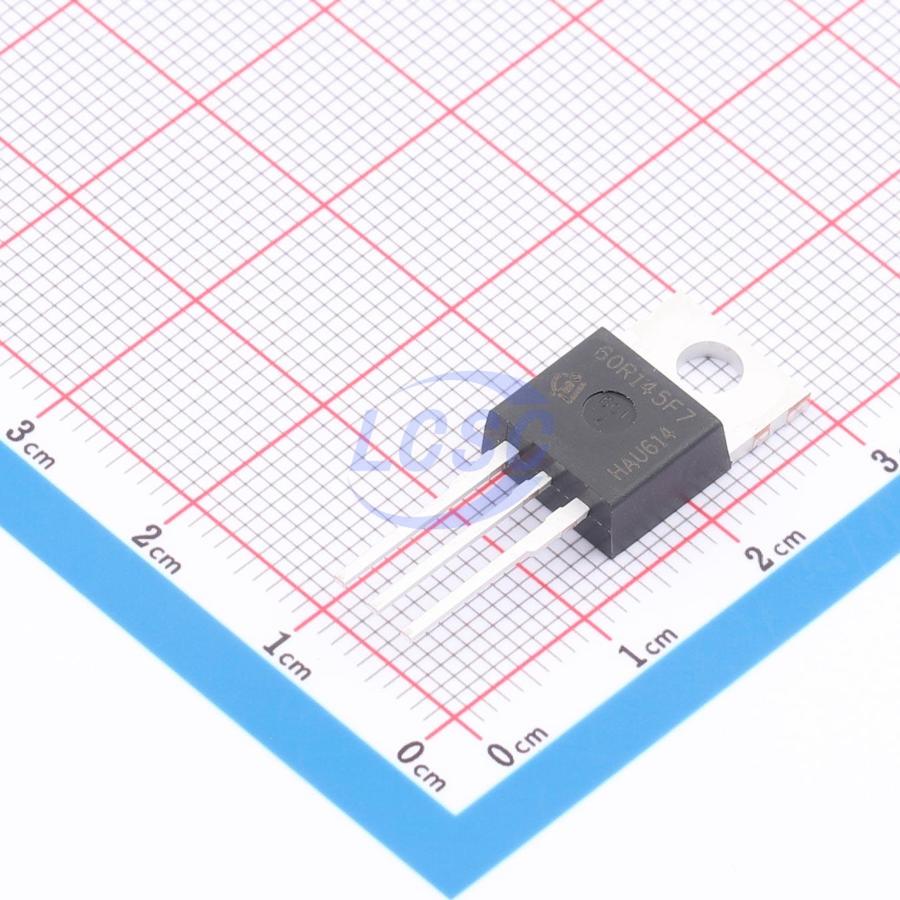

IPP60R145CFD7
83W 600V 10A 145mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPP60R145CFD7
- Store part #
- C537204
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C537204
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹549.55 | ₹549.55 |
| 10+ | ₹469.80 | ₹4,698.00 |
| 50+ | ₹422.43 | ₹21,121.50 |
| 100+ | ₹374.41 | ₹37,441.00 |
| 500+ | ₹352.25 | ₹1,76,125.00 |
| 1,000+ | ₹342.47 | ₹3,42,470.00 |
1 × ₹549.55
₹549.55
excl. GST
₹648.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP60R145CFD7
₹549.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 24pF
- Ciss-Input Capacitance
- 1.33nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 453pF
- RDS(on)
- 145mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.074 g
Overview
CoolMOS is a revolutionary technology for high-voltage power MOSFETs, designed based on the superjunction (SJ) principle. The latest CoolMOS CFD7 is the successor to the CoolMOS CFD2 series, a platform specifically optimized for soft-switching applications such as phase-shifted full-bridge (ZVS) and LLC. With reduced gate charge (Qg), best-in-class reverse recovery charge (Qrr), and improved turn-off characteristics, CoolMOS CFD7 delivers the highest efficiency in resonant topologies. As part of Infineon's fast body diode portfolio, this new product family combines all the advantages of fast switching technology with excellent hard-commutation robustness and ease of design-in. CoolMOS CFD7 technology meets the highest standards of efficiency and reliability while enabling high power density solutions. Overall, CoolMOS CFD7 makes resonant switching topologies more efficient, more reliable, lighter, and cooler.
Applications
- Soft-switching topology
- Phase-shifted full-bridge (ZVS), LLC applications – servers, telecom, EV charging
Key features
- Ultra-fast body diode
- Low gate charge
- Best-in-class reverse recovery charge (Qrr)
- Improved dv/dt and diF/dt robustness of MOSFET body diode
- Lowest figure-of-merit RDS(on)^*Qg and RDS(on)^*Eoss
- Best-in-class RDS(ON) in SMD and THD packages
