InfineonDatasheet (PDF)

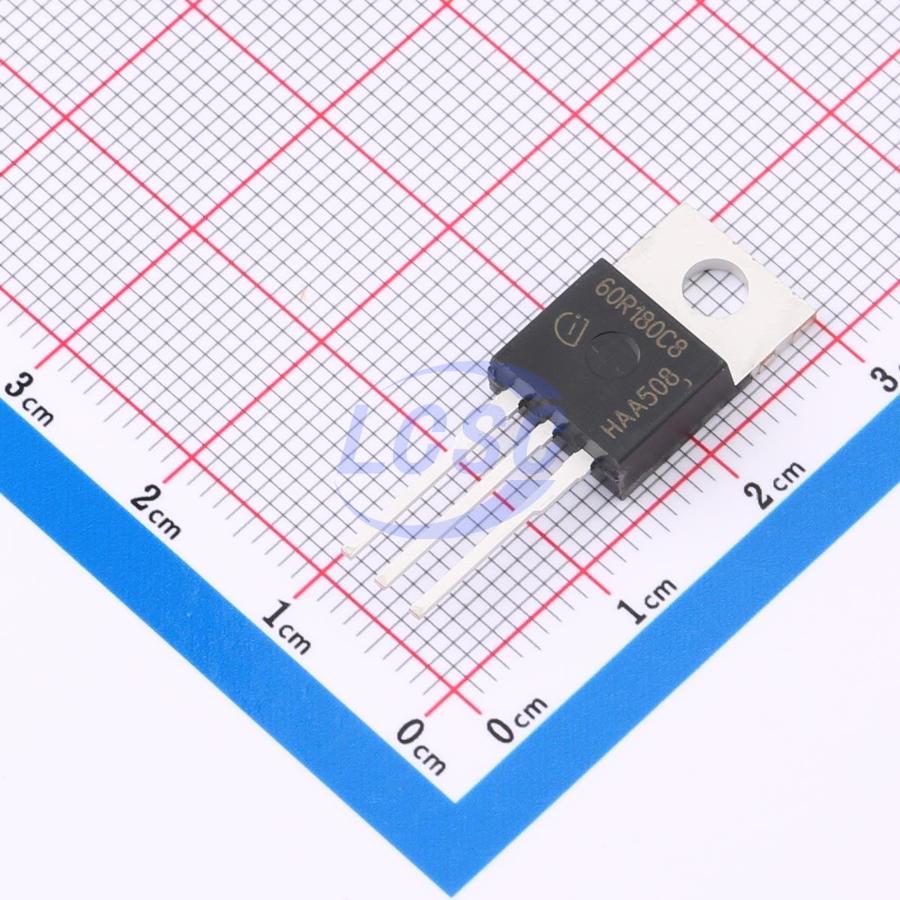

IPP60R180CM8XKSA1
N-Channel 600V 19A 142W Through Hole TO-220-3
TO-220-3ROHS3 CompliantActive
MOSFET N-CH 600V 19A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP60R180CM8XKSA1
- Store part #
- C25397856
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C25397856
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹330.49 | ₹330.49 |
| 10+ | ₹277.91 | ₹2,779.10 |
| 50+ | ₹244.87 | ₹12,243.50 |
| 100+ | ₹211.20 | ₹21,120.00 |
| 500+ | ₹195.99 | ₹97,995.00 |
| 1,000+ | ₹189.47 | ₹1,89,470.00 |
1 × ₹330.49
₹330.49
excl. GST
₹389.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP60R180CM8XKSA1
₹330.49 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 19A
- Output Capacitance(Coss)
- 11pF
- Ciss-Input Capacitance
- 743pF
- Pd - Power Dissipation
- 142W
- RDS(on)
- 150mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.136 g
Overview
The CoolMOS 8th Generation Platform is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS CM8 series is the successor to CoolMOS 7. It combines the advantages of fast-switching SJ MOSFETs with excellent ease of use, including low ringing tendency, Common Fast Diode (CFD) across all devices, outstanding hard-commutation robustness, and superior ESD capability. Furthermore, the ultra-low switching and conduction losses of CM8 enable higher efficiency in switching applications.
Applications
- Power Supplies and Converters
- Power Factor Correction (PFC) Stage and LLC Resonant Converters
- High-Efficiency Switching Applications
- Servers, Telecommunications, EV Charging, Uninterruptible Power Supplies (UPS)
Key features
- Excellent commutation robustness, suitable for hard-switching and soft-switching topologies
- Significantly reduced switching losses and conduction losses
- Ultra-low R<sub>DS(on)</sub>*A delivers best-in-class R<sub>DS(on)</sub> per package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTP165N65S3H#C2902081onsemi · TO-220-3LD | onsemi | TO-220-3LD | 141 | ₹379.09 · 141 in stock | View |
 | STP26NM60N#C110593ST · TO-220 | ST | TO-220 | 1,423 | ₹302.58 · 1,423 in stock | View |
 | SP20MF65TQ#C42404753Siliup · TO-220-3L | Siliup | TO-220-3L | 114 | ₹130.92 · 114 in stock | View |
 | TPP65R170M#C691633WUXI UNIGROUP MICRO · TO-220 | WUXI UNIGROUP MICRO | TO-220 | 8 | ₹191.62 · 8 in stock | View |
 | FCP165N65S3#C604997onsemi · TO-220 | onsemi | TO-220 | 10 | ₹885.76 · 10 in stock | View |
