VBsemi ElecDatasheet (PDF)

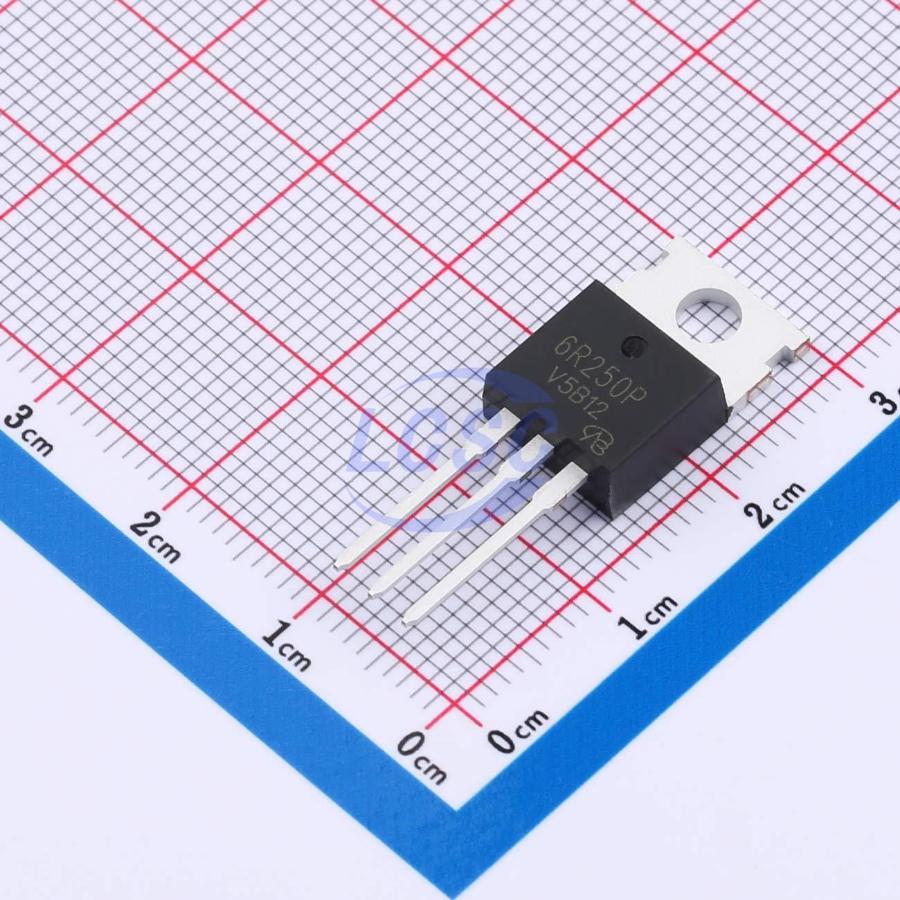

IPP60R250CPXKSA1-VB
N-Channel 650V 12A 210W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 650V 12A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPP60R250CPXKSA1-VB
- Store part #
- C45662401
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C45662401
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹308.91 | ₹308.91 |
| 10+ | ₹270.17 | ₹2,701.70 |
| 50+ | ₹248.83 | ₹12,441.50 |
| 100+ | ₹150.44 | ₹15,044.00 |
| 500+ | ₹139.55 | ₹69,775.00 |
| 1,000+ | ₹134.76 | ₹1,34,760.00 |
1 × ₹308.91
₹308.91
excl. GST
₹364.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP60R250CPXKSA1-VB
₹308.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 12A
- Pd - Power Dissipation
- 210W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 360mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.24 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC) power supplies
- Lighting
- High Intensity Discharge (HID) lamps
- Fluorescent lamp ballast lighting
Key features
- Low figure of merit (FOM) Ron × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBM165R12S#C22357375VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹216.36 · 5 in stock | View |
 | FCP260N65S3-VB#C45350914VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 6 | ₹272.13 · 6 in stock | View |
 | IPP60R210CFD7XKSA1-VB#C45662399VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹308.91 · 10 in stock | View |
 | IPP60R280P7XKSA1-VB#C45662402VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹308.91 · 10 in stock | View |
 | IXFP12N65X2-VB#C45662492VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹261.45 · 8 in stock | View |
