InfineonDatasheet (PDF)

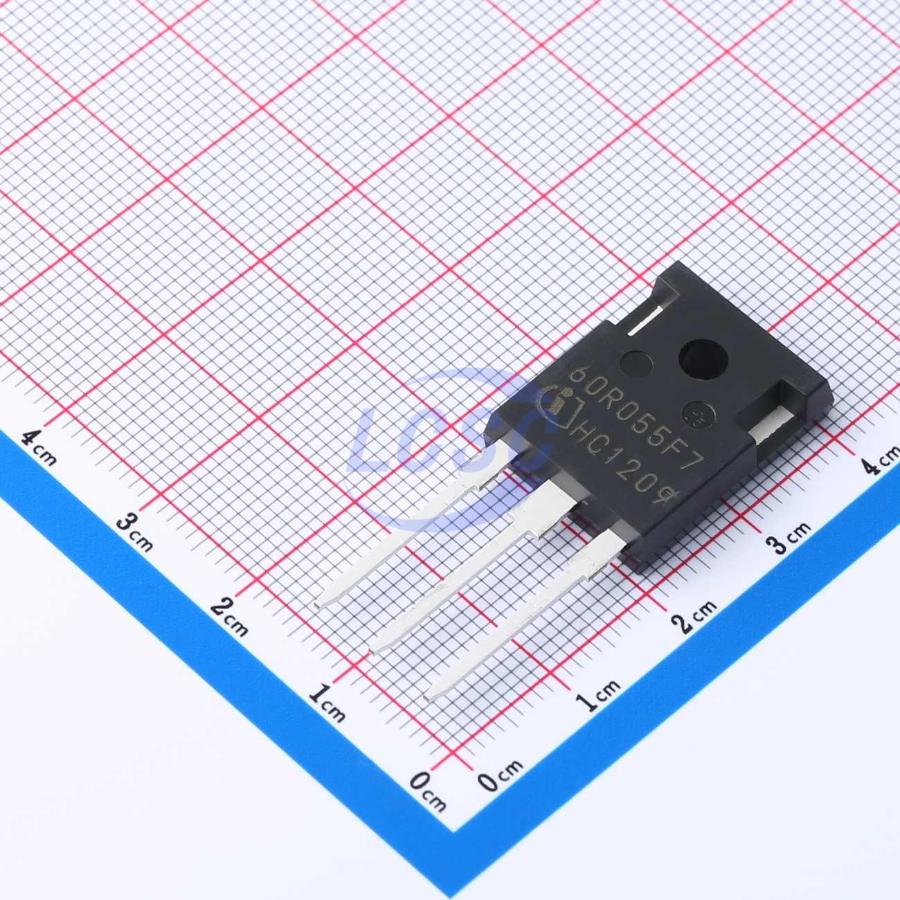

IPW60R055CFD7XKSA1
600V 55A 1 N-channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPW60R055CFD7XKSA1
- Store part #
- C6211003
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C6211003
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,162.32 | ₹1,162.32 |
| 10+ | ₹1,014.99 | ₹10,149.90 |
| 30+ | ₹925.04 | ₹27,751.20 |
| 90+ | ₹849.86 | ₹76,487.40 |
1 × ₹1,162.32
₹1,162.32
excl. GST
₹1,371.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IPW60R055CFD7XKSA1
₹1,162.32 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 55A
- Number
- 1 N-channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 9.757 g
Overview
600 V CoolMOS CFD7 is the latest high-voltage superjunction MOSFET technology with an integrated fast body diode, completing the CoolMOS 7 family. It is the ideal choice for resonant topologies in high-power SMPS applications such as servers, telecommunications, and EV charging stations. The new CoolMOS CFD7 is the successor to the CoolMOS CFD2 series. Compared to competing products, CoolMOS CFD7 features reduced gate charge (Qg), improved turn-off performance, up to 69% lower reverse recovery charge (Qrr), and the lowest reverse recovery time (trr) on the market. Thanks to these characteristics, CoolMOS CFD7 achieves the highest efficiency and best-in-class reliability in soft-switching topologies such as LLC and ZVS phase-shifted full bridge. In addition, with an optimized on-resistance RDS(on), CoolMOS CFD7 enables higher power density. Overall, compared to competing products, this latest fast body diode series combines the advantages of fast switching with superior commutation robustness, and is easy to implement during design-in — offering significant advantages.
Applications
- Servers - Telecom - EV Charging Stations
Key features
- Ultra-fast body diode
- Best-in-class reverse recovery charge (Qrr)
- Improved reverse diode dv/dt and diF/dt robustness
- Lowest figure-of-merit RDS(ON) x Qg and Eoss
- Best-in-class RDS(ON)/package combination
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RSF60T070W#C51904668REASUNOS · TO-247-3 | REASUNOS | TO-247-3 | 66 | ₹276.80 · 66 in stock | View |
 | CMH60R070P#C5203956Cmos · TO-247 | Cmos | TO-247 | 4 | ₹371.41 · 4 in stock | View |
| R6055VNZ4C13#C7334405ROHM · TO-247 | ROHM | TO-247 | 10 | ₹1,084.73 · 10 in stock | View | |
 | BMW65N065UC1#C50153973Bestirpower · TO247-3 | Bestirpower | TO247-3 | 165 | ₹291.93 · 165 in stock | View |
 | MMQ60R044RFTH#C51891818MagnaChip Semicon · TO-247 | MagnaChip Semicon | TO-247 | 206 | ₹416.06 · 206 in stock | View |
