InfineonDatasheet (PDF)

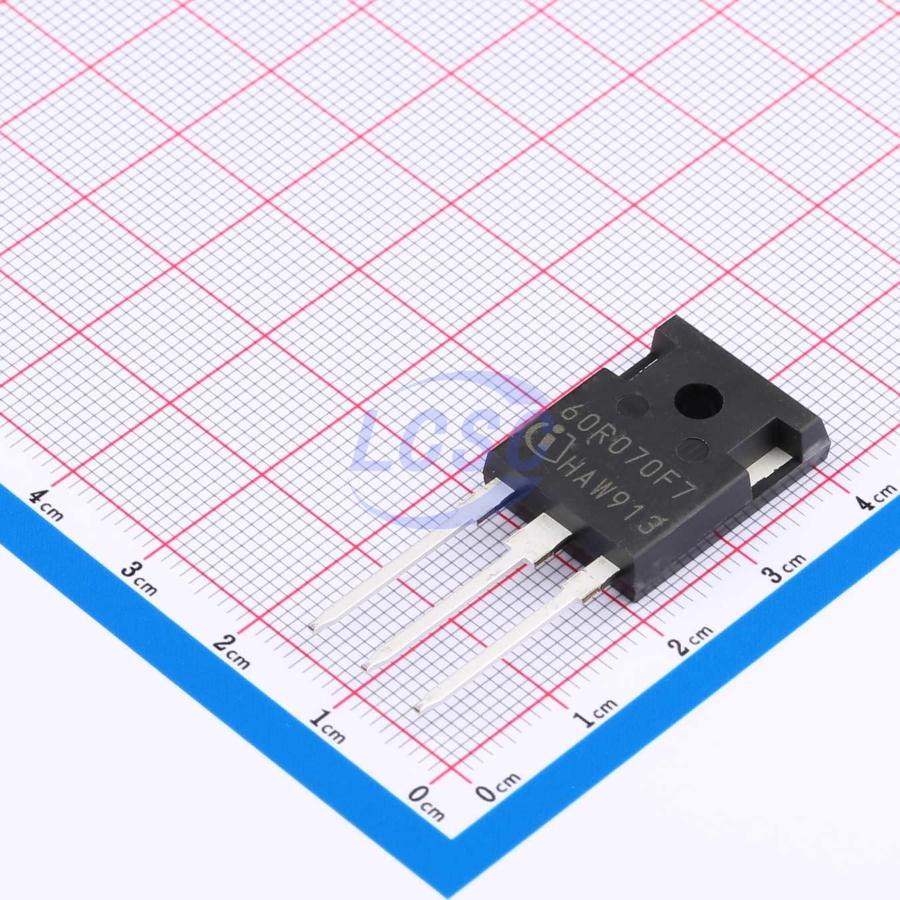

IPW60R070CFD7
N-Channel 650V 31A 156W Through Hole TO-247-3
TO-247-3ROHS CompliantActive
MOSFET N-CH 650V 31A TO-247-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPW60R070CFD7
- Store part #
- C537454
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,255 in stock
#C537454
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹782.70 | ₹782.70 |
| 10+ | ₹695.17 | ₹6,951.70 |
| 30+ | ₹643.14 | ₹19,294.20 |
| 90+ | ₹590.45 | ₹53,140.50 |
| 510+ | ₹566.28 | ₹2,88,802.80 |
| 990+ | ₹555.18 | ₹5,49,628.20 |
1 × ₹782.70
₹782.70
excl. GST
₹923.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IPW60R070CFD7
₹782.70 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 53pF
- Current - Continuous Drain(Id)
- 31A
- Ciss-Input Capacitance
- 2.721nF
- Pd - Power Dissipation
- 156W
- RDS(on)
- 70mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 67nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.14 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. The latest CoolMOS CFD7 is the successor to the CoolMOS CFD2 series and is an optimized platform tailored to target soft switching applications such as phase-shift full-bridge (ZVS) and LLC. Resulting from reduced gate charge, best-in-class reverse recovery charge and improved turn off behavior CoolMOS CFD7 offers highest efficiency in resonant topologies. As part of the fast body diode portfolio, this new product series blends all advantages of a fast switching technology together with superior hard commutation robustness, without sacrificing easy implementation in the design-in process. The CoolMOS CFD7 technology meets highest efficiency and reliability standards and furthermore supports high power density solutions. Altogether, CoolMOS CFD7 makes resonant switching topologies more efficient, more reliable, lighter and cooler.
Applications
- Soft Switching topologies
- Phase-shift full-bridge (ZVS), LLC Applications – Server, Telecom, EV Charging
Key features
- Ultra-fast body diode
- Low gate charge
- Best-in-class reverse recovery charge (Qrr)
- Improved MOSFET reverse diode dv/dt and diF/dt ruggedness
- Lowest FOM RDS(on)*Qg and RDS(on)*Eoss
- Best-in-class RDS(on) in SMD and THD packages
