VBsemi ElecDatasheet (PDF)

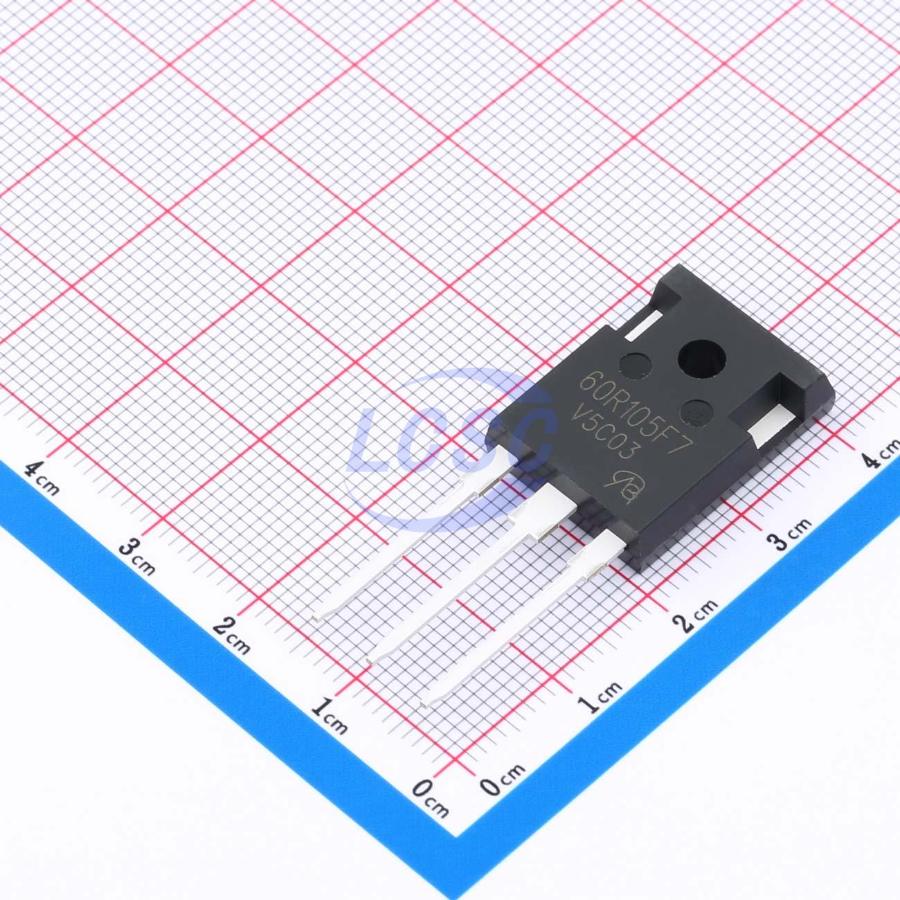

IPW60R105CFD7XKSA1-VB
N-Channel 600V 20A 205W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 600V 20A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPW60R105CFD7XKSA1-VB
- Store part #
- C45662422
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C45662422
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹506.14 | ₹506.14 |
| 10+ | ₹450.63 | ₹4,506.30 |
| 30+ | ₹289.54 | ₹8,686.20 |
| 90+ | ₹253.83 | ₹22,844.70 |
| 600+ | ₹237.94 | ₹1,42,764.00 |
| 900+ | ₹230.76 | ₹2,07,684.00 |
1 × ₹506.14
₹506.14
excl. GST
₹597.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IPW60R105CFD7XKSA1-VB
₹506.14 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 20A
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 1.44nF
- Pd - Power Dissipation
- 205W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 150mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.72 g
Overview
Applications
- Server and Telecom Power Supplies
- Switched-Mode Power Supplies (SMPS)
- Power Factor Correction (PFC) Power Supplies
- Lighting
- High-Intensity Discharge (HID) Lamps
- Fluorescent Lamp Ballast Lighting
- Industrial Applications
Key features
- Low figure of merit (FOM) Ron × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPW60R120C7XKSA1-VB#C45662423VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹506.14 · 5 in stock | View |
 | IPW60R160P6FKSA1-VB#C45662425VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹416.35 · 5 in stock | View |
 | SIHG150N60E-GE3-VB#C46527789VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹506.14 · 5 in stock | View |
 | IPW60R190C6FKSA1-VB#C45662428VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹416.35 · 5 in stock | View |
 | R6020KNZ1C9-VB#C46527785VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹416.35 · 5 in stock | View |
