InfineonDatasheet (PDF)

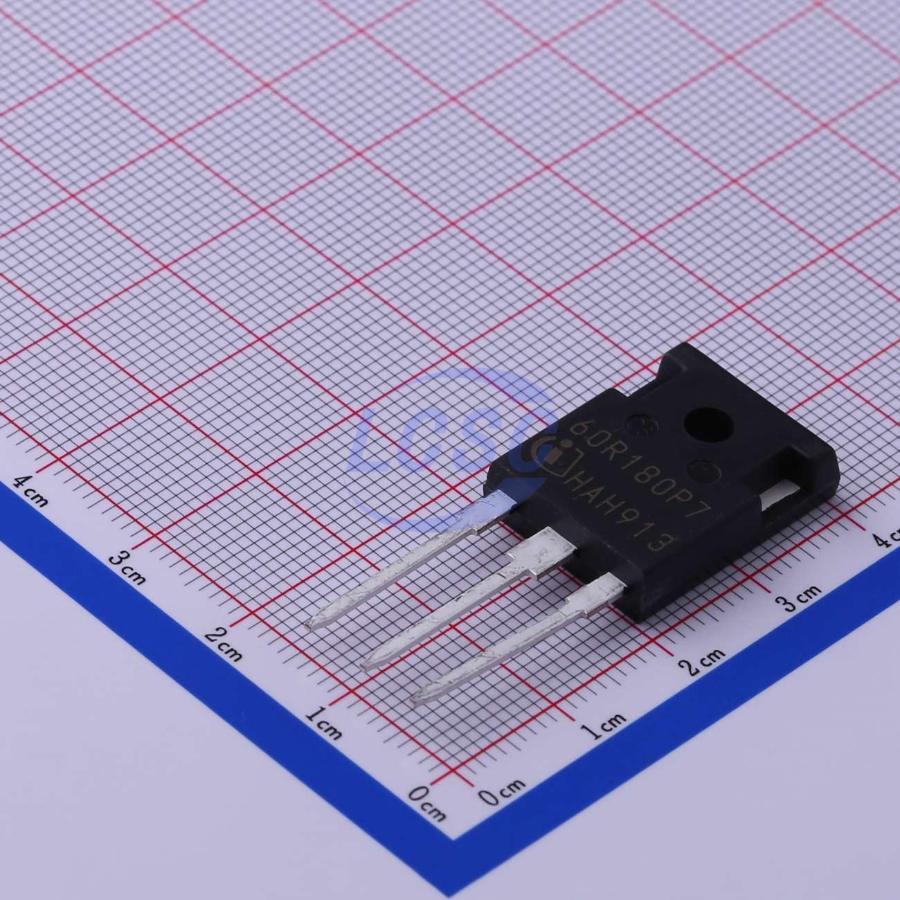

IPW60R180P7
72W 650V 11A 180mΩ@10V 1 N-channel N-Channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPW60R180P7
- Store part #
- C467009
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C467009
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹227.01 | ₹227.01 |
| 10+ | ₹192.10 | ₹1,921.00 |
| 30+ | ₹170.20 | ₹5,106.00 |
| 90+ | ₹147.87 | ₹13,308.30 |
| 480+ | ₹137.68 | ₹66,086.40 |
| 960+ | ₹133.35 | ₹1,28,016.00 |
1 × ₹227.01
₹227.01
excl. GST
₹267.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IPW60R180P7
₹227.01 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 19pF
- Ciss-Input Capacitance
- 1.081nF
- Pd - Power Dissipation
- 72W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 11A
- Reverse Transfer Capacitance (Crss)
- 381pF
- RDS(on)
- 180mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 25nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.609 g
Overview
CoolMOS™ 7th generation platform is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS™ P7 series is the successor to the CoolMOS™ P6 series. It combines the advantages of fast-switching SJ MOSFETs with excellent ease of use, such as extremely low ringing tendency, outstanding robustness of the body diode during hard commutation, and superior ESD capability. In addition, ultra-low switching losses and conduction losses make switching applications more efficient, compact, and thermally optimized.
Applications
- PFC stage circuits
- Hard-switching PWM stage circuits
- Resonant switching stage circuits for PC desktops, adapters, LCD and plasma TVs, lighting, servers, telecom, and UPS
Key features
- Excellent commutation robustness for both hard-switching and soft-switching (PFC and LLC)
- Significantly reduced switching losses and conduction losses
- Outstanding ESD robustness across all products, >2kV (HBM)
- Low RDS(on)*A (<1Ω·mm²) delivers superior RDS(on)-to-package ratio vs. competition
- Fully compliant with JEDEC standards for industrial applications
