VBsemi ElecDatasheet (PDF)

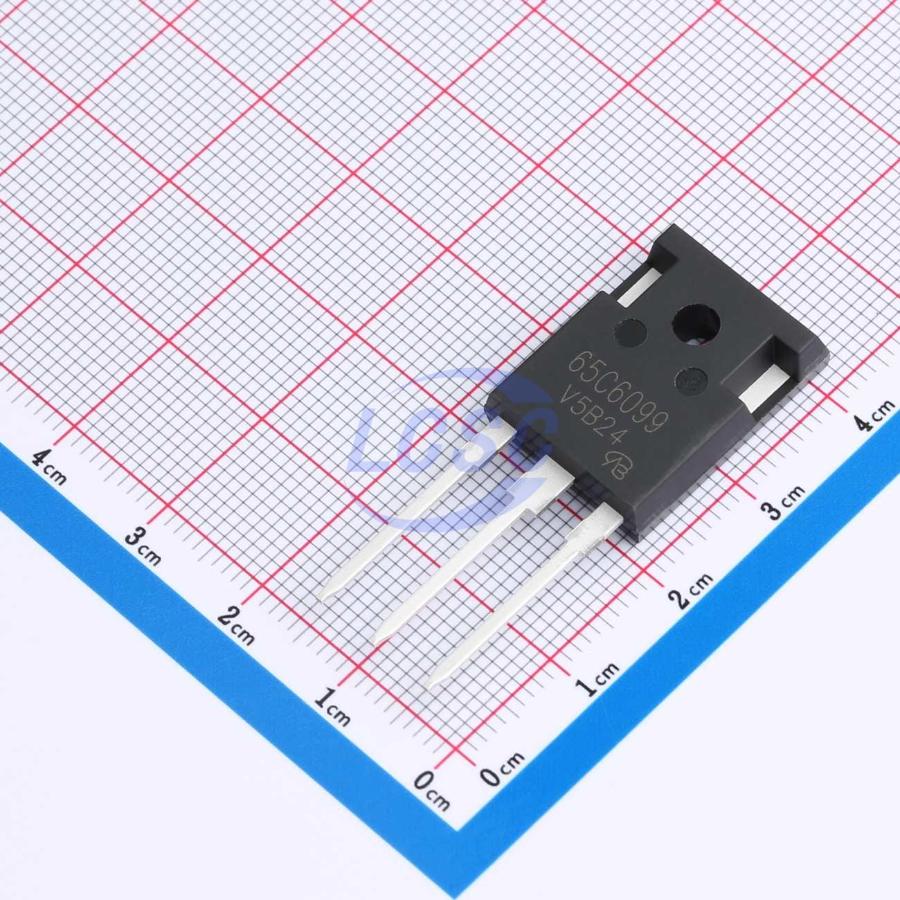

IPW65R099C6FKSA1-VB
650V 36A 210W 75mΩ@10V 1 N-channel N-Channel TO-247AC Single FETs, MOSFETs
TO-247ACRoHSActive
650V Single-N TO247 SJ_Multi-EPI MOSFET
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPW65R099C6FKSA1-VB
- Store part #
- C45662439
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C45662439
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,117.00 | ₹1,117.00 |
| 10+ | ₹1,010.53 | ₹10,105.30 |
| 30+ | ₹631.10 | ₹18,933.00 |
| 90+ | ₹576.67 | ₹51,900.30 |
1 × ₹1,117.00
₹1,117.00
excl. GST
₹1,318.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IPW65R099C6FKSA1-VB
₹1,117.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 36A
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 3.9nF
- Pd - Power Dissipation
- 210W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 75mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 60nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.28 g
Overview
Applications
- Server and telecom power supplies
- Switched-mode power supplies (SMPS)
- Power factor correction (PFC) supplies
- Lighting
- High-intensity discharge (HID) lamps
- Fluorescent lamp ballast lighting
- Industrial applications
- Welding
- Induction heating
- Motor drives
- Battery chargers
- Renewable energy
- Solar (photovoltaic inverters)
Key features
- Low figure of merit (FOM) Ron × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCH067N65S3-VB#C22357237VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 1 | ₹729.73 · 1 in stock | View |
 | STF45N65M5-VB#C22357238VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | TK090N65Z-VB#C22357239VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | SiHF074N65E-VB#C22357241VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
 | FCH077N65F_F085-VB#C22357242VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹592.15 · 5 in stock | View |
