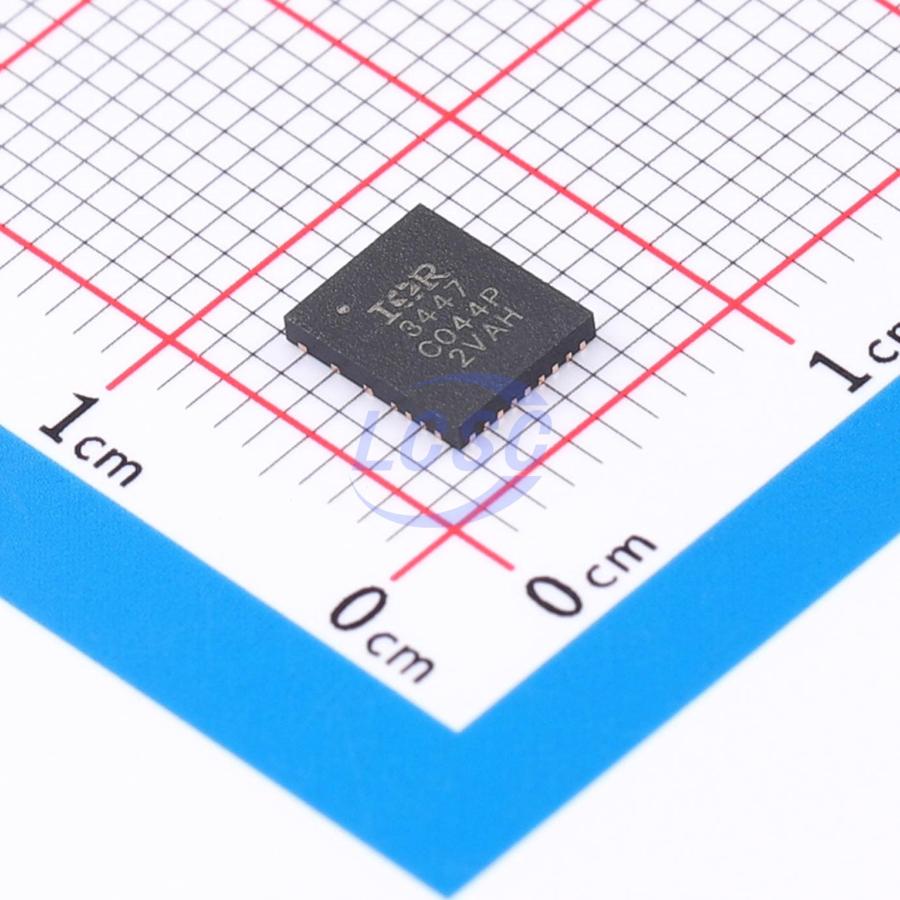

IR3447MTRPBF

300kHz~1.5MHz Step-down type Adjustable 600mV~18.06V 26A PQFN-29-EP(5x6) Voltage Regulators - DC DC Switching Regulators

PQFN-29-EP(5x6)RoHSActive

Highly Integrated Synchronous Buck Regulator

Manufacturer: Infineon
Manufacturer part #: IR3447MTRPBF
Store part #: C537642
Package / case: PQFN-29-EP(5x6)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50 in stock

#C537642

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹675.15	₹675.15
10+	₹646.25	₹6,462.50
30+	₹628.65	₹18,859.50
100+	₹613.87	₹61,387.00

Quantity (min 1)

1 × ₹675.15

₹675.15

excl. GST

₹796.68 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

IR3447MTRPBF

₹675.15 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 300kHz~1.5MHz
Number of Outputs: 1
Function: Step-down type
Features: Adjustable current limiting;Hiccup current limiting;Frequency synchronization;Output voltage differential sensing;Built-in LDO regulator;External compensation;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 1.5V~21V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~18.06V
Output Current: 26A
Quiescent Current: 300uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.066 g

Overview

The IR3447 SupIRBuck is an easy-to-use, fully integrated and highly efficient DC/DC regulator. The onboard PWM controller and MOSFETs make IR3447 a space-efficient solution, providing accurate power delivery for low output voltage and high current applications. IR3447 is a versatile regulator which offers programmability of switching frequency and current limit while operating in wide input and output voltage range. The switching frequency is programmable from 300 kHz to 1.5MHz for an optimum solution. It also features important protection functions, such as Over Voltage Protection (OVP), Pre-Bias startup, hiccup current limit and thermal shutdown to give required system level security in the event of fault conditions.

Applications

Server Application
Distributed Point of Load Power Architectures
Set Top Box Application Power Supplies

Key features

Single 5V to 21V application
Wide Input Voltage Range from 1.5V to 21V with external Vcc Output Voltage Range: 0.6V to 0.86 * PVin
0.5% accurate Reference Voltage
Enhanced line/load regulation with Feed-Forward
Programmable Switching Frequency up to 1.5MHz
Internal Digital Soft-Start
Enable input with Voltage Monitoring Capability Remote Sense Amplifier with True Differential Voltage Sensing
Thermally compensated current limit and Hiccup Mode Over Current Protection
Smart LDO to enhance efficiency
External synchronization with Smooth Clocking
Dedicated output voltage sensing for power good indication and overvoltage protection which remains active even when Enable is low.
Enhanced Pre-Bias Start up
Body Braking to improve transient
Integrated MOSFET drivers and Bootstrap diode
Thermal Shut Down
Post Package trimmed rising edge dead-time
Programmable Power Good Output
Small Size 5mm x 6mm PQFN
Operating Junction Temp: -40°C < Tj < 125°C
Lead-free, Halogen-free and RoHS Compliant
