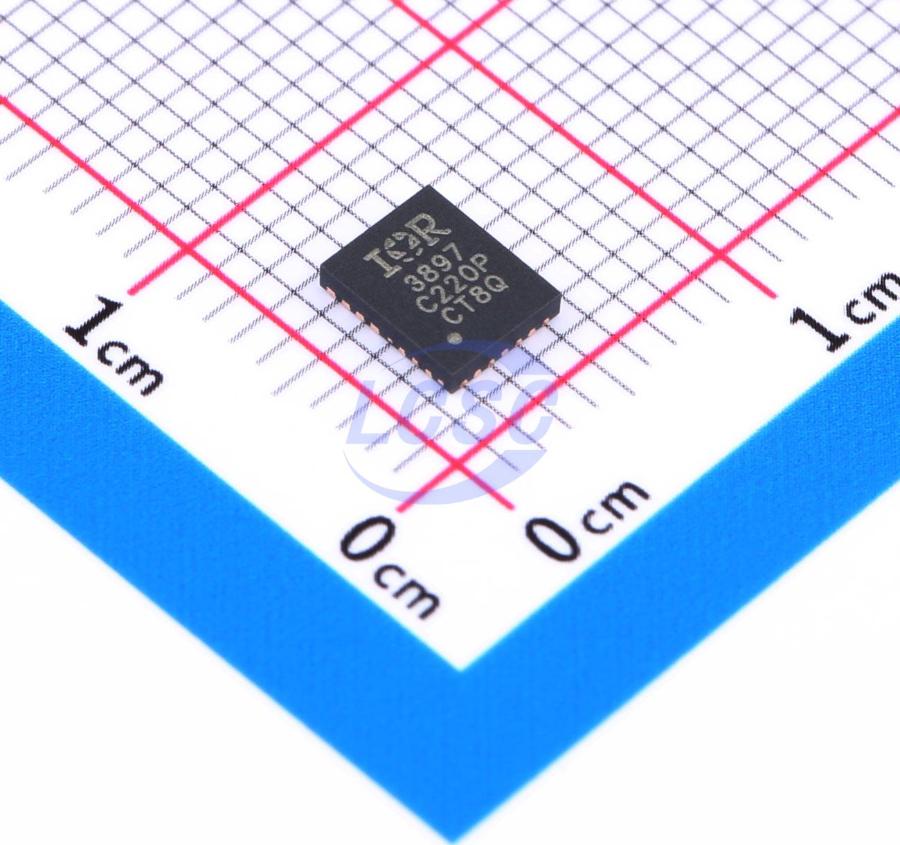

Infineon

IR3897MTRPBF

Step-down type 300kHz~1.5MHz Adjustable 500mV~18.06V 4A PQFN-24-EP(4x5) Voltage Regulators - DC DC Switching Regulators

PQFN-24-EP(4x5)RoHSActive

4A Highly Integrated Synchronous Buck Regulator

Manufacturer: Infineon
Manufacturer part #: IR3897MTRPBF
Store part #: C537730
Package / case: PQFN-24-EP(4x5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

60 in stock

#C537730

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹425.45	₹425.45
10+	₹366.15	₹3,661.50
30+	₹330.88	₹9,926.40
100+	₹295.40	₹29,540.00
500+	₹279.03	₹1,39,515.00
1,000+	₹271.60	₹2,71,600.00

Quantity (min 1)

1 × ₹425.45

₹425.45

excl. GST

₹502.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

IR3897MTRPBF

₹425.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Function: Step-down type
Frequency - Switching: 300kHz~1.5MHz
Number of Outputs: 1
Features: Hiccup current limiting;Built-in LDO regulator;Frequency synchronization;External compensation;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 1V~21V
Switch tube (built-in/external): Built-in
Output Voltage: 500mV~18.06V
Output Current: 4A
Quiescent Current: 9.5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.84 g

Overview

The IR3897 SupIRBuckTM is an easy-to-use, fully integrated and highly efficient DC/DC regulator. The onboard PWM controller and MOSFETs make IR3897 a space-efficient solution, providing accurate power delivery. IR3897 is a versatile regulator which offers programmability of switching frequency and internal current limit while operates in wide input and output voltage range. The switching frequency is programmable from 300kHz to 1.5MHz for an optimum solution. It also features important protection functions, such as Pre-Bias startup, thermally compensated current limit, over voltage protection and thermal shutdown to give required system level security in the event of fault conditions.

Applications

Netcom Applications
Embedded Telecom Systems
Server Applications
Storage Applications
Distributed Point of Load Power Architectures

Key features

Single 5V to 21V application
Wide Input Voltage Range from 1.0V to 21V with external Vcc
Output Voltage Range: 0.5V to 0.86×Vin
Enhanced Line/Load Regulation with Feed-Forward
Programmable Switching Frequency up to 1.5MHz
Internal Digital Soft-Start/Soft-Stop
Enable input with Voltage Monitoring Capability
Thermally Compensated Current Limit with robust hiccup mode over current protection
Smart Internal LDO to improve light load and full load efficiency
External Synchronization with Smooth Clocking
Enhanced Pre-Bias Start-Up
Precision Reference Voltage (0.5V +/- 0.5%) with margining capability
Vp for Tracking Applications (Source/Sink Capability +/-4A)
Integrated MOSFET drivers and Bootstrap Diode
Thermal Shut Down
Programmable Power Good Output with tracking capability
Monotonic Start-Up
Operating temp: -40°C < Tj < 125°C
Small Size: 4mm x 5mm PQFN
Lead-free, Halogen-free and RoHS Compliant
