InfineonDatasheet (PDF)

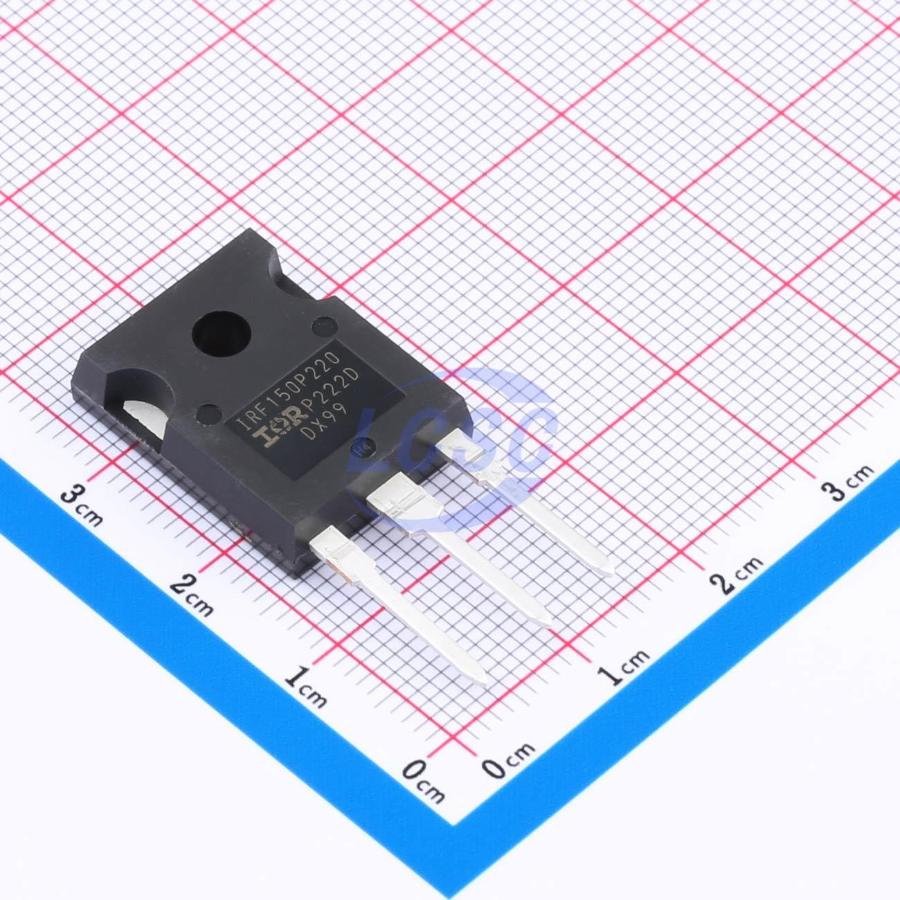

IRF150P220AKMA1
N-Channel 150V 316A 556W Through Hole TO-247-3
TO-247-3ROHS3 CompliantActive
MOSFET N-CH 150V 316A TO-247-3
- Manufacturer
- Infineon
- Manufacturer part #
- IRF150P220AKMA1
- Store part #
- C3278917
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C3278917
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,367.45 | ₹1,367.45 |
| 10+ | ₹1,167.55 | ₹11,675.50 |
| 25+ | ₹1,045.70 | ₹26,142.50 |
| 100+ | ₹943.58 | ₹94,358.00 |
1 × ₹1,367.45
₹1,367.45
excl. GST
₹1,613.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRF150P220AKMA1
₹1,367.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3nF
- Ciss-Input Capacitance
- 12nF
- Pd - Power Dissipation
- 556W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 150V
- Current - Continuous Drain(Id)
- 316A
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 2.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 200nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 9 g
Overview
Key features
- Ultra-low on-resistance RDS(on)
- Excellent gate charge × RDS(on) figure of merit (FOM)
- Optimized reverse recovery charge Qrr
- Operating temperature up to 175°C
- JEDEC-qualified
- Optimized design for broad distribution partner availability
- Reduced conduction losses
- Suitable for high switching frequencies
- Reduced overshoot voltage
- Higher reliability compared to 150°C-rated components
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MS330N15JDC0#C55042301MASPOWER · TO-247 | MASPOWER | TO-247 | 15 | ₹294.02 · 15 in stock | View |
| IXFX300N20X3#C22443589Littelfuse/IXYS · PLUS-247 | Littelfuse/IXYS | PLUS-247 | 3 | ₹8,029.47 · 3 in stock | View | |
| X4N15GHA3#C51952927XYD · TO-247-3L | XYD | TO-247-3L | On request | ₹727.07 · 0 in stock | View | |
| IXFX400N15X3#C3290708Littelfuse/IXYS · TO-247-3 | Littelfuse/IXYS | TO-247-3 | On request | ₹5,425.11 · 0 in stock | View | |
