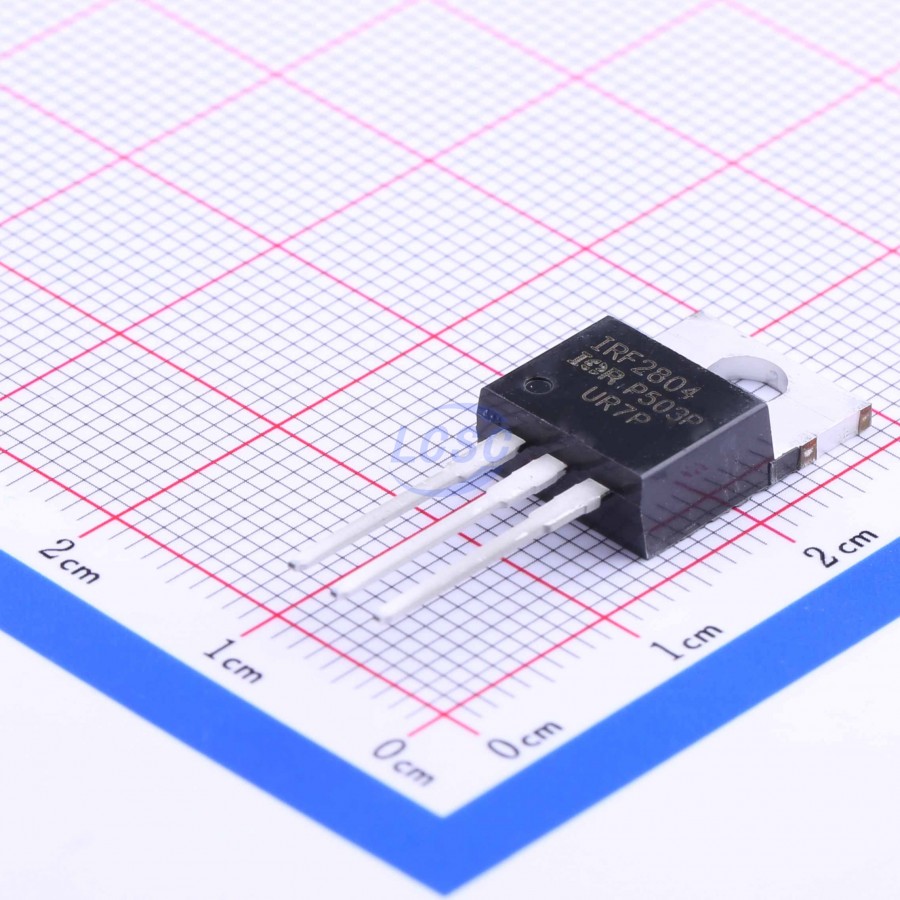

IRF2804PBF
N-Channel 40V 270A 300W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 40V 270A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRF2804PBF
- Store part #
- C2610
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69 in stock
#C2610
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹160.23 | ₹160.23 |
| 10+ | ₹130.75 | ₹1,307.50 |
| 50+ | ₹111.66 | ₹5,583.00 |
| 100+ | ₹93.46 | ₹9,346.00 |
| 500+ | ₹85.43 | ₹42,715.00 |
| 1,000+ | ₹81.75 | ₹81,750.00 |
1 × ₹160.23
₹160.23
excl. GST
₹189.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF2804PBF
₹160.23 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.69nF
- Ciss-Input Capacitance
- 6.45nF
- Pd - Power Dissipation
- 300W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 270A
- Reverse Transfer Capacitance (Crss)
- 840pF
- RDS(on)
- 2.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 240nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.75 g
Overview
This HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in a wide variety of other applications.
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFB7434PBF#C415697Infineon · TO-220AB | Infineon | TO-220AB | 275 | ₹170.93 · 275 in stock | View |
 | MS8003C#C47361104MIRACLE POWER · TO-220 | MIRACLE POWER | TO-220 | On request | ₹138.98 · 0 in stock | View |
 | IXTP300N04T2#C28761304Littelfuse/IXYS · TO-220 | Littelfuse/IXYS | TO-220 | 10 | ₹936.02 · 10 in stock | View |
 | IRF2804PBF-VB#C55251752VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 5 | ₹125.12 · 5 in stock | View |
 | HSP0076A#C2903573HUASHUO · TO-220 | HUASHUO | TO-220 | 110 | ₹286.58 · 110 in stock | View |
