VBsemi ElecDatasheet (PDF)

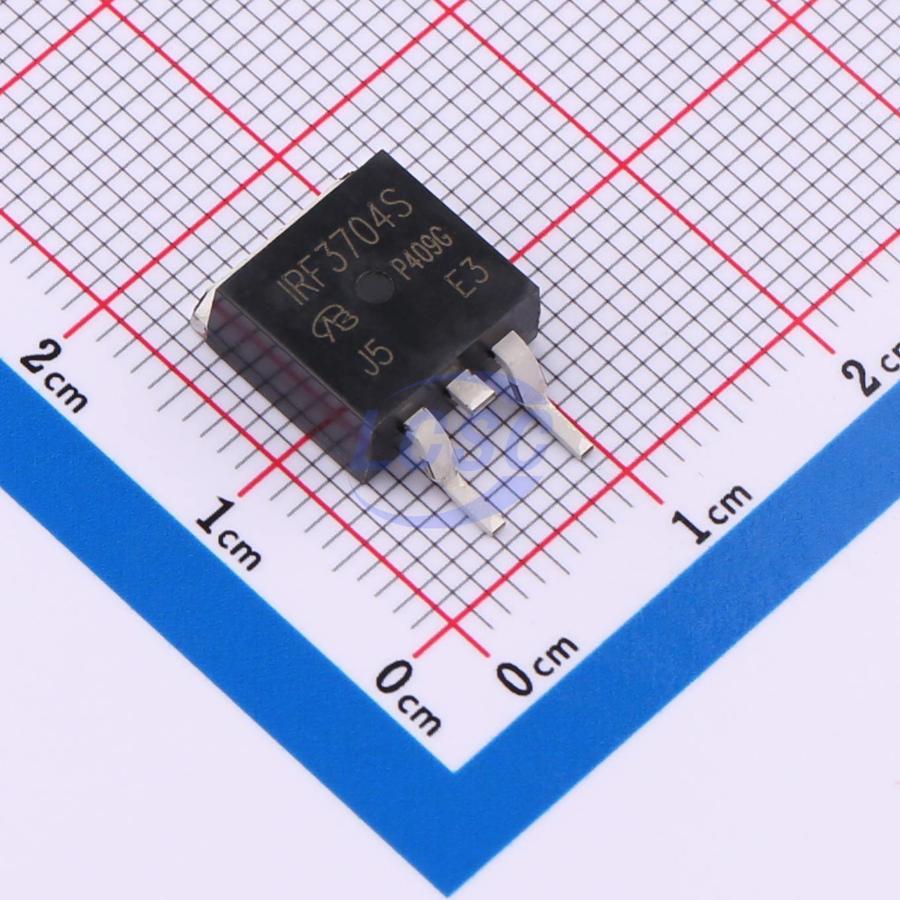

IRF3704SPBF-VB
N-Channel 30V 70A 71W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 30V 70A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF3704SPBF-VB
- Store part #
- C22389194
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C22389194
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.25 | ₹79.25 |
| 10+ | ₹64.66 | ₹646.60 |
| 30+ | ₹58.34 | ₹1,750.20 |
| 100+ | ₹41.81 | ₹4,181.00 |
| 500+ | ₹38.33 | ₹19,165.00 |
| 800+ | ₹36.36 | ₹29,088.00 |
1 × ₹79.25
₹79.25
excl. GST
₹93.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF3704SPBF-VB
₹79.25 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 70A
- Output Capacitance(Coss)
- 260pF
- Ciss-Input Capacitance
- 1.85nF
- Pd - Power Dissipation
- 71W
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 46nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.96 g
Overview
Applications
- Battery Switch-DC/DC Converter
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF3707SPBF-VB#C29778838VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 1 | ₹65.75 · 1 in stock | View |
 | ISL9N310AS3ST-VB#C29779839VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹65.75 · 10 in stock | View |
 | CEB73A3G-VB#C4355098VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹61.68 · 3 in stock | View |
 | CEB6030L-VB#C5355686VBsemi Elec · D2PAK(TO-263) | VBsemi Elec | D2PAK(TO-263) | 18 | ₹63.87 · 18 in stock | View |
 | SUM85N03-06P-VB#C879114VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 3 | ₹74.46 · 3 in stock | View |
