InfineonDatasheet (PDF)

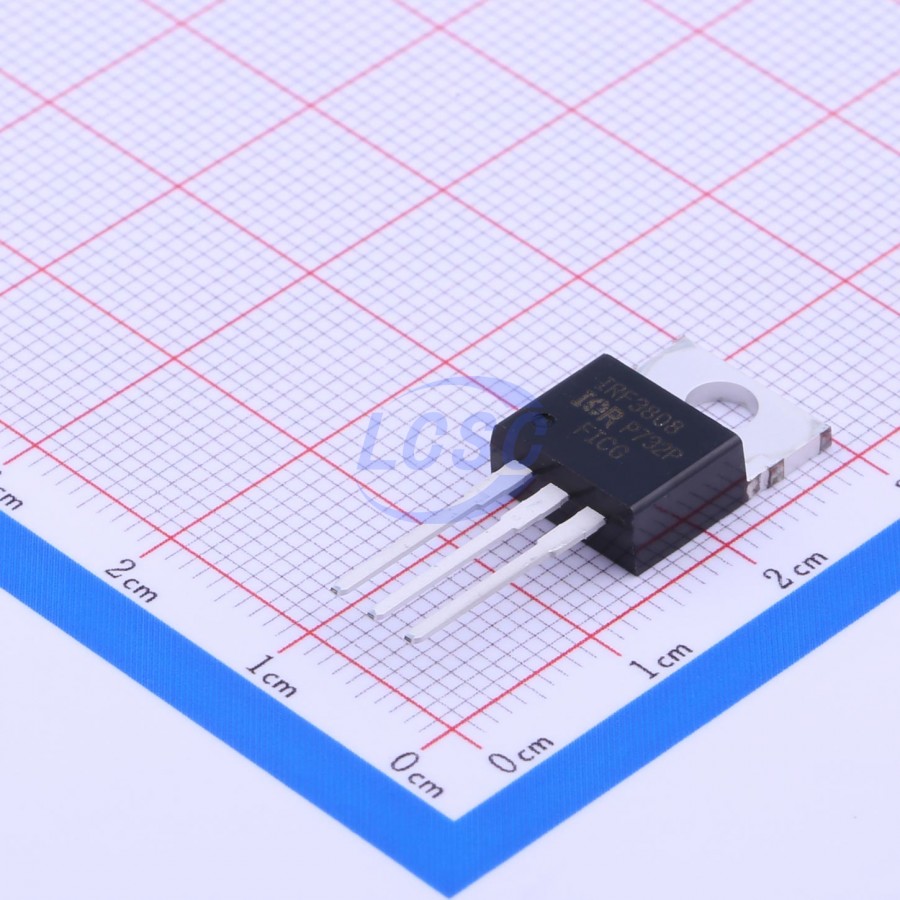

IRF3808PBF
330W 75V 140A 7mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs RoHS
TO-220ABROHS3 CompliantDiscontinued
MOSFET N-CH 75V 140A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRF3808PBF
- Store part #
- C2618
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
186 in stock
#C2618
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹271.06 | ₹271.06 |
| 10+ | ₹237.40 | ₹2,374.00 |
| 30+ | ₹218.93 | ₹6,567.90 |
| 100+ | ₹172.24 | ₹17,224.00 |
| 500+ | ₹163.11 | ₹81,555.00 |
| 1,000+ | ₹158.77 | ₹1,58,770.00 |
1 × ₹271.06
₹271.06
excl. GST
₹319.85 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF3808PBF
₹271.06 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 6.01nF
- Ciss-Input Capacitance
- 7.5pF
- Pd - Power Dissipation
- 330W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 140A
- Reverse Transfer Capacitance (Crss)
- 890pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 220nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.75 g
Overview
This advanced planar stripe HEXFET power MOSFET utilizes the latest processing technology to achieve extremely low on-resistance per unit silicon area. Additional features of this HEXFET power MOSFET include a 175°C junction operating temperature, low R<sub>θJC</sub>, fast switching speed, and higher repetitive avalanche ratings. The combination of these characteristics makes this design a highly efficient and reliable choice for a wide range of applications.
Applications
- Industrial motor drives
Key features
- Ultra-low on-resistance
- Dynamic dv/dt rated
- 175°C operating temperature
- Fast switching
- Repetitive avalanche rated up to maximum junction temperature Tjmax
- Lead-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMP073N15#C41433029Cmos · TO-220 | Cmos | TO-220 | 25 | ₹201.00 · 25 in stock | View |
 | WTM0550N15JP#C46079377WPMtek · TO-220C-3L | WPMtek | TO-220C-3L | 43 | ₹221.14 · 43 in stock | View |
 | WTM0550N15GP#C46079378WPMtek · TO-220C-3L | WPMtek | TO-220C-3L | 50 | ₹258.75 · 50 in stock | View |
 | HY3712P#C2986713HUAYI · TO-220FB | HUAYI | TO-220FB | 84 | ₹173.91 · 84 in stock | View |
 | NCEP15T14#C341726NCE · TO-220-3L | NCE | TO-220-3L | 587 | ₹328.65 · 587 in stock | View |
