InfineonDatasheet (PDF)

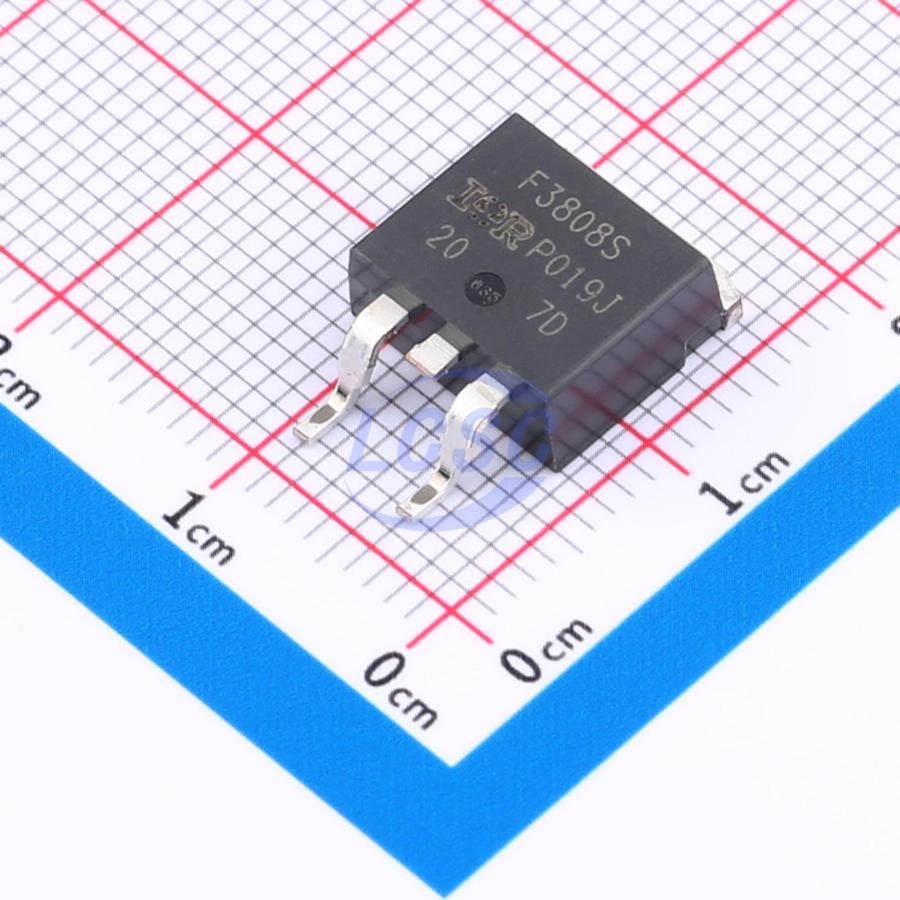

IRF3808STRLPBF
75V 106A 200W 7mΩ@10V 1 N-channel N-Channel D2PAK Single FETs, MOSFETs RoHS
D2PAKROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IRF3808STRLPBF
- Store part #
- C459966
- Package / case
- D2PAK
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C459966
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹318.13 | ₹318.13 |
| 10+ | ₹269.89 | ₹2,698.90 |
| 30+ | ₹239.90 | ₹7,197.00 |
| 100+ | ₹209.05 | ₹20,905.00 |
| 500+ | ₹195.14 | ₹97,570.00 |
| 800+ | ₹189.06 | ₹1,51,248.00 |
1 × ₹318.13
₹318.13
excl. GST
₹375.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF3808STRLPBF
₹318.13 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Output Capacitance(Coss)
- 890pF
- Current - Continuous Drain(Id)
- 106A
- Pd - Power Dissipation
- 200W
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 220nC@10V
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
This advanced planar stripe HEXFET power MOSFET utilizes the latest processing technology to achieve extremely low on-resistance per unit silicon area. Additional features of this HEXFET power MOSFET include a 175°C junction operating temperature, low R<sub>θJC</sub>, fast switching speed, and higher repetitive avalanche ratings. The combination of these characteristics makes this design a highly efficient and reliable choice for a wide range of applications.
Applications
- Industrial motor drives
Key features
- Ultra-low on-resistance
- Dynamic dv/dt rating
- 175°C operating temperature
- Fast switching
- Repetitive avalanche rated to maximum junction temperature Tjmax
- Lead-free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCE82H110D#C502763NCE · TO-263-2L | NCE | TO-263-2L | 23 | ₹163.36 · 23 in stock | View |
 | 055N85#C2932024FM · TO-263 | FM | TO-263 | 805 | ₹57.05 · 805 in stock | View |
 | NCEP040N85D#C503056NCE · TO-263 | NCE | TO-263 | 1 | ₹109.40 · 1 in stock | View |
 | HSH120N12A#C51025879HUASHUO · TO-263 | HUASHUO | TO-263 | 103 | ₹101.26 · 103 in stock | View |
 | WSK150N12#C3015211Winsok Semicon · TO-263 | Winsok Semicon | TO-263 | 209 | ₹184.06 · 209 in stock | View |
