InfineonDatasheet (PDF)

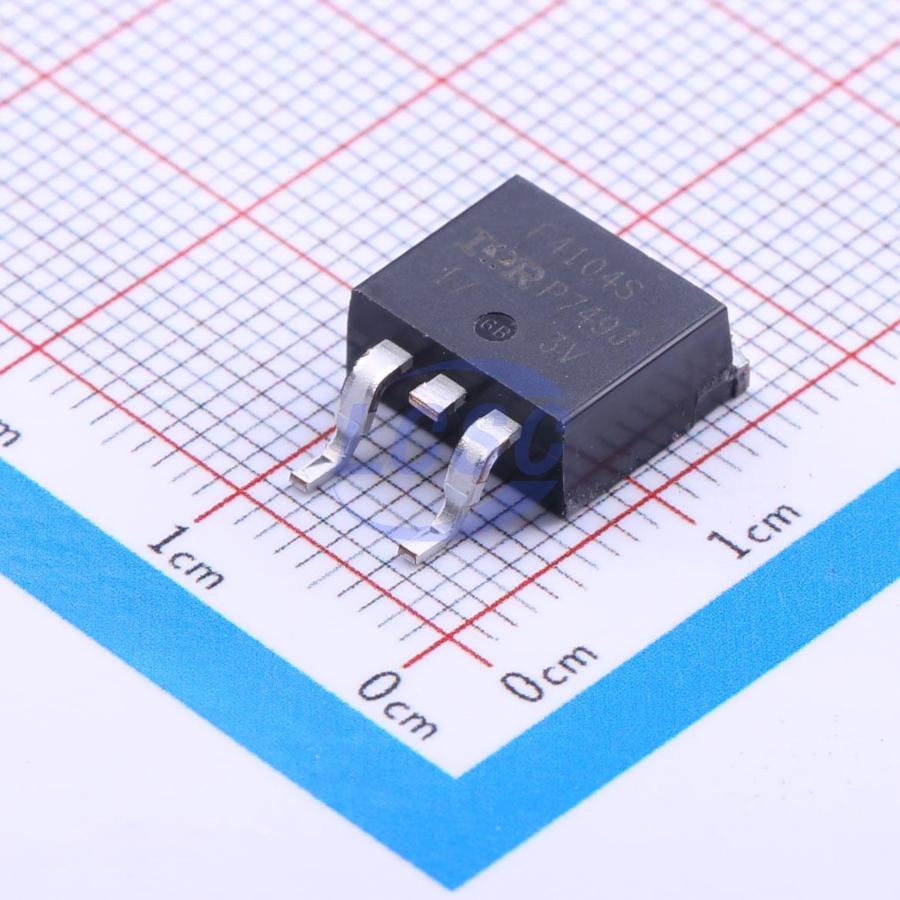

IRF4104SPBF
140W 40V 120A 5.5mΩ@10V 1 N-channel N-Channel TO-263-2 Single FETs, MOSFETs RoHS
TO-263-2ROHS CompliantActive
MOSFET N-CH 40V 120A TO-263-2
- Manufacturer
- Infineon
- Manufacturer part #
- IRF4104SPBF
- Store part #
- C169754
- Package / case
- TO-263-2
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C169754
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹309.58 | ₹309.58 |
| 10+ | ₹264.03 | ₹2,640.30 |
| 30+ | ₹235.53 | ₹7,065.90 |
| 100+ | ₹197.76 | ₹19,776.00 |
| 500+ | ₹184.58 | ₹92,290.00 |
| 1,000+ | ₹178.98 | ₹1,78,980.00 |
1 × ₹309.58
₹309.58
excl. GST
₹365.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
IRF4104SPBF
₹309.58 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 660pF
- Ciss-Input Capacitance
- 3nF
- Pd - Power Dissipation
- 140W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 380pF
- RDS(on)
- 5.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 100nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.24 g
Overview
This HEXFET Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area. Additional features of this design are a 175°C junction operating temperature, fast switching speed and improved repetitive avalanche rating. These features combine to make this design an extremely efficient and reliable device for use in a wide variety of applications.
Key features
- Advanced Process Technology
- Ultra Low On-Resistance
- 175°C Operating Temperature
- Fast Switching
- Repetitive Avalanche Allowed up to Tjmax
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOD4184A#C5370959TECH PUBLIC · TO-252-3L | TECH PUBLIC | TO-252-3L | 140 | ₹35.23 · 140 in stock | View |
 | BRCS055N10SHBD#C22449027BLUE ROCKET · TO-263 | BLUE ROCKET | TO-263 | 88 | ₹92.01 · 88 in stock | View |
 | HYG054N09NS1B#C2874972HUAYI · TO-263-2L | HUAYI | TO-263-2L | 18 | ₹84.04 · 18 in stock | View |
 | BUK6607-55C-VB#C22389266VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
 | BUK7611-55B-VB#C22389267VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹136.96 · 10 in stock | View |
