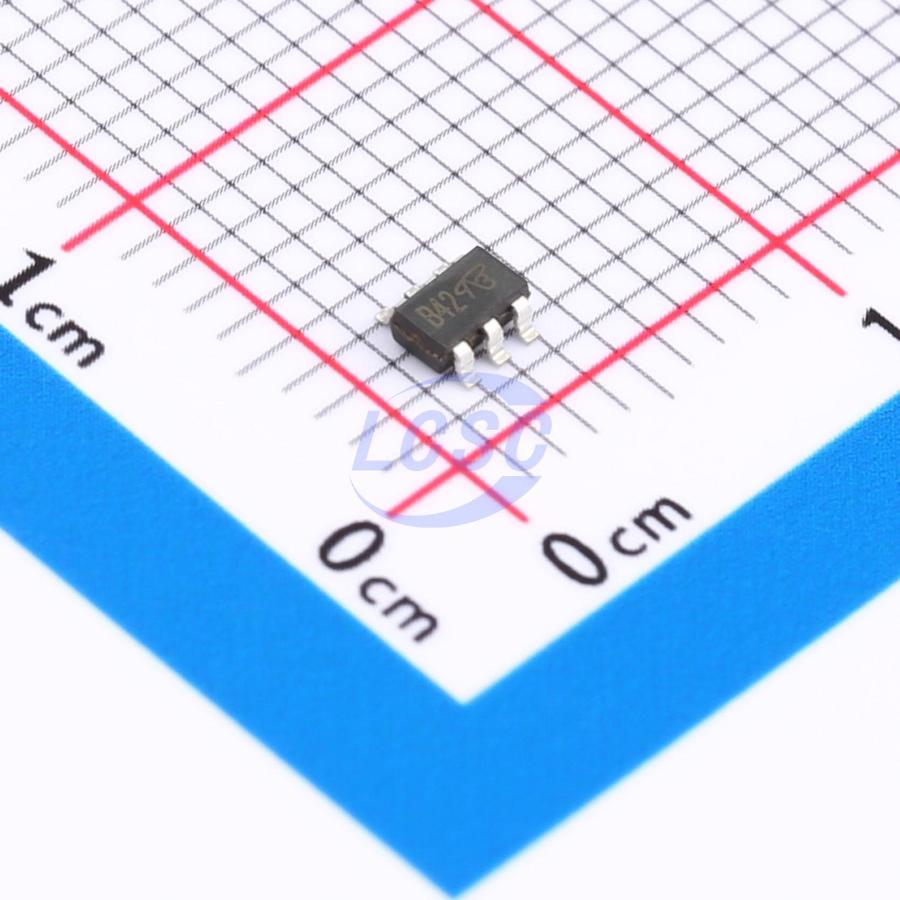

IRF5850TRPBF-VB
P-Channel 20V 4A 1.4W Surface Mount TSOP-6
TSOP-6ROHS CompliantActive
MOSFET P-CH ARR 20V 4A TSOP-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF5850TRPBF-VB
- Store part #
- C7568886
- Package / case
- TSOP-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C7568886
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.09 | ₹155.45 |
| 50+ | ₹24.85 | ₹1,242.50 |
| 150+ | ₹22.16 | ₹3,324.00 |
| 500+ | ₹18.83 | ₹9,415.00 |
| 3,000+ | ₹15.33 | ₹45,990.00 |
| 6,000+ | ₹14.45 | ₹86,700.00 |
5 × ₹31.09
₹155.45
excl. GST
₹183.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF5850TRPBF-VB
₹155.45 for 5 + GST
Specifications
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4A
- Output Capacitance(Coss)
- 45pF
- Ciss-Input Capacitance
- 210pF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 33pF
- RDS(on)
- 75mΩ@4.5V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 5.2nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.02 g
Overview
Applications
- Portable application load switch - Portable device battery switch - Computer - Bus switch - Load switch
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDC6302P-VB#C50387001VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 10 | ₹33.08 · 10 in stock | View |
 | QS6J1TR-VB#C7568739VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 20 | ₹31.09 · 20 in stock | View |
 | SI3993CDV-T1-GE3-VB#C19711351VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 20 | ₹30.28 · 20 in stock | View |
 | AO6801E-VB#C20417502VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 150 | ₹27.64 · 150 in stock | View |
 | BSL314PE-VB#C20417596VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 65 | ₹30.28 · 65 in stock | View |
