MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

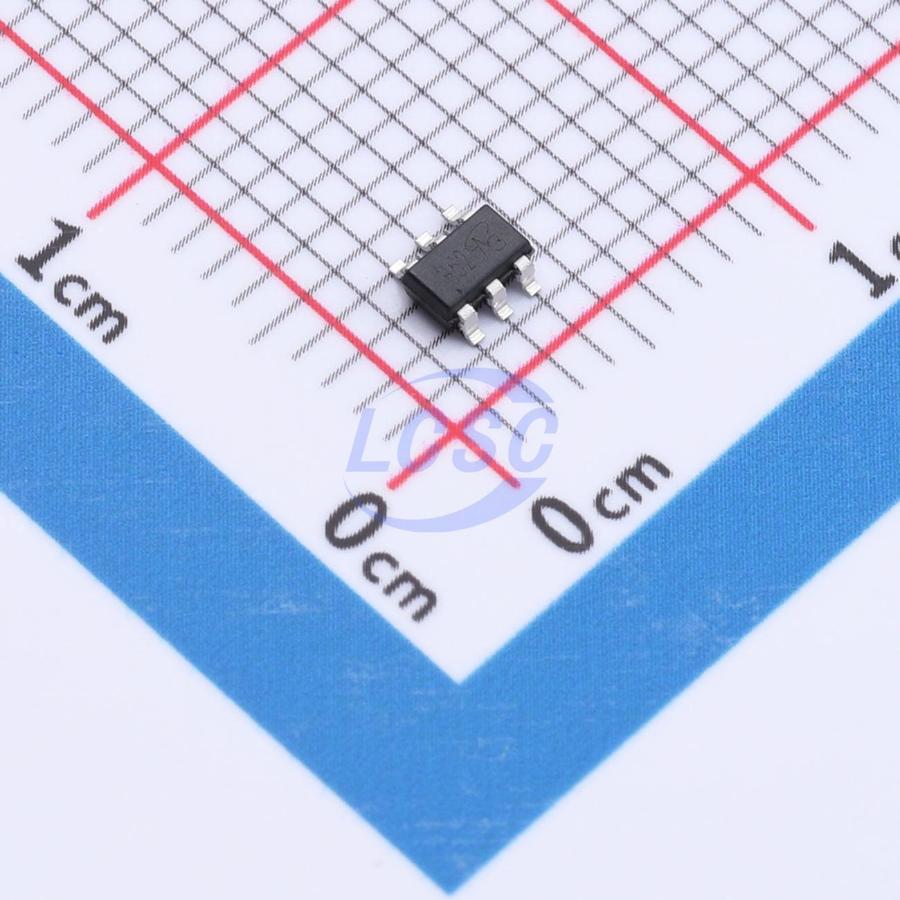

IRF5851TRPBF-VB
N-Channel+P-Channel 20V 5.5A 1.15W Surface Mount TSOP-6
TSOP-6RoHSActive
MOSFET N-CH+P-CH ARR 20V 5.5A TSOP-6
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF5851TRPBF-VB
- Store part #
- C5878801
- Package / case
- TSOP-6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
60 in stock
#C5878801
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.30 | ₹166.50 |
| 50+ | ₹26.83 | ₹1,341.50 |
| 150+ | ₹24.07 | ₹3,610.50 |
| 500+ | ₹20.61 | ₹10,305.00 |
| 3,000+ | ₹15.86 | ₹47,580.00 |
| 6,000+ | ₹14.95 | ₹89,700.00 |
5 × ₹33.30
₹166.50
excl. GST
₹196.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF5851TRPBF-VB
₹166.50 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 5.5A;3.4A
- Pd - Power Dissipation
- 1.15W
- RDS(on)
- 22mΩ@10V;30mΩ@4.5V;55mΩ@10V;79mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 3.2nC@15V;3.6nC@15V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
Applications
- DC/DC converter
- DC/AC inverter
- Motor driver
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | Si3585CDV-T1-GE3-VB#C5441241VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 45 | ₹27.64 · 45 in stock | View |
 | DMC2038LVT-7-F-VB#C558111VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 135 | ₹31.70 · 135 in stock | View |
 | APM2701AC-VB#C558089VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 3,000 | ₹33.41 · 3,000 in stock | View |
 | BSL308C-VB#C19188190VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 10 | ₹30.64 · 10 in stock | View |
 | SI3588DV-T1-GE3-VB#C19632262VBsemi Elec · TSOP-6 | VBsemi Elec | TSOP-6 | 20 | ₹30.19 · 20 in stock | View |
