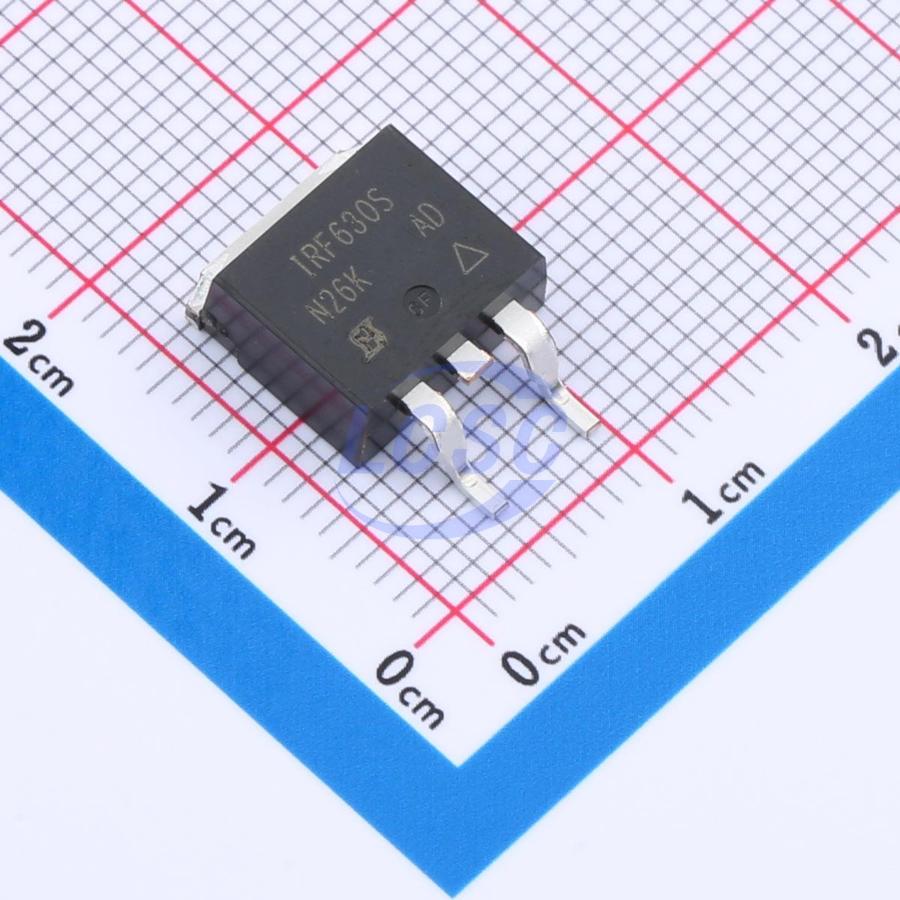

IRF630STRLPBF
N-Channel 200V 9A 74W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)ROHS3 CompliantActive
MOSFET N-CH 200V 9A TO-263(D2PAK)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF630STRLPBF
- Store part #
- C3009865
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C3009865
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹269.27 | ₹269.27 |
| 10+ | ₹229.41 | ₹2,294.10 |
| 30+ | ₹204.46 | ₹6,133.80 |
| 100+ | ₹157.65 | ₹15,765.00 |
| 500+ | ₹145.99 | ₹72,995.00 |
| 800+ | ₹141.08 | ₹1,12,864.00 |
1 × ₹269.27
₹269.27
excl. GST
₹317.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRF630STRLPBF
₹269.27 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 240pF
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 74W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 76pF
- RDS(on)
- 400mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The D2PAK (TO-263) is a surface-mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface-mount package. The D2PAK (TO-263) is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2.0 W in a typical surface-mount application.
Key features
- Surface-mount
- Available in tape and reel
- Dynamic dv/dt rating RoHS
- Repetitive avalanche rated HALOGEN
- Fast switching FREE
- Ease of paralleling Available
- Simple drive requirements
