IRF6614TRPBF

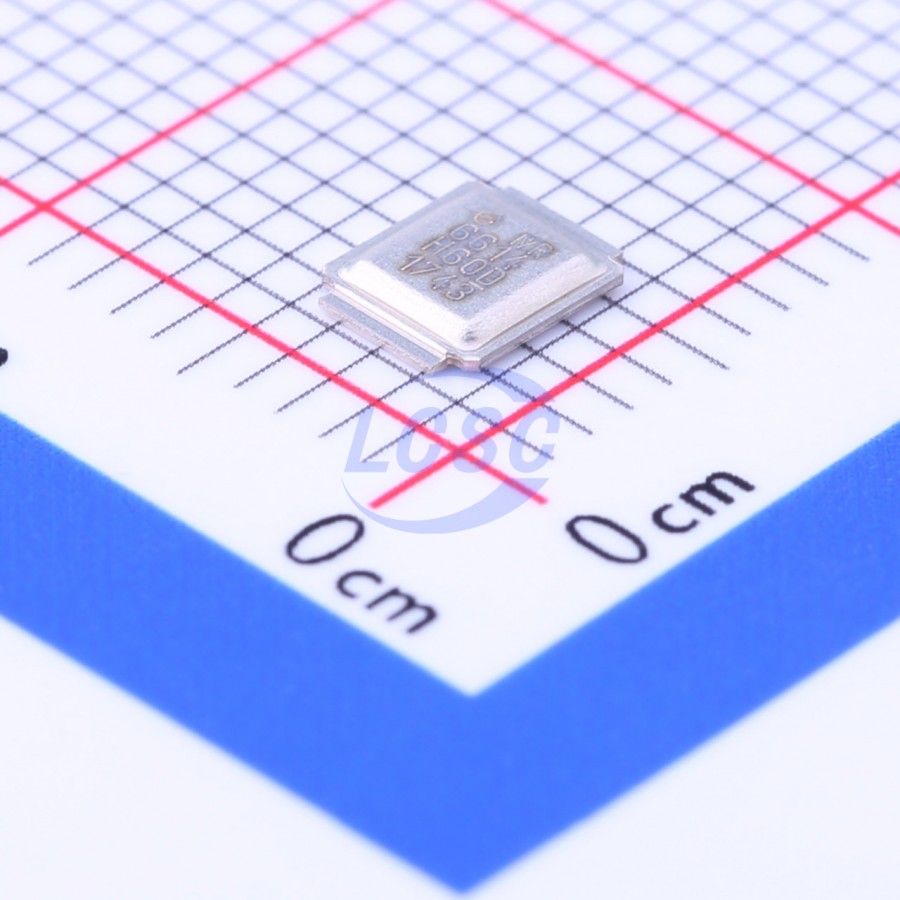

The IRF6614PbF combines the latest HEXFET Power MOSFET Silicon technology with the advanced DirectFETTM packaging to achieve the lowest on-state resistance in a package that has the footprint of a MICRO-8 and only 0.7 mm profile. The DirectFET package is compatible with existing layout geometries used in power applications, PCB assembly equipment and vapor phase, infrared or convection soldering techniques, when application note AN-1035 is followed regarding the manufacturing methods and processes. The DirectFET package allows dual sided cooling to maximize thermal transfer in power systems, improving previous best thermal resistance by 80%. The IRF6614PbF balances both low resistance and low charge along with ultra low package inductance to reduce both conduction and switching losses. The reduced total losses make this product ideal for high efficiency DC-DC converters that power the latest generation of processors operating at higher frequencies. The IRF6614PbF has been optimized for parameters that are critical in synchronous buck operating from 12 volt bus converters including Rds(on) and gate charge to minimize losses in the control FET Ssocket.

Applications

• CPU Core DC-DC Converters

Key features

• RoHS Compliant
• Lead-Free (Qualified up to 260°C Reflow)
• Low Conduction Losses and Switching Losses
• Low Profile (<0.7 mm)
• Dual Sided Cooling Compatible
• Compatible with existing Surface Mount Techniques
