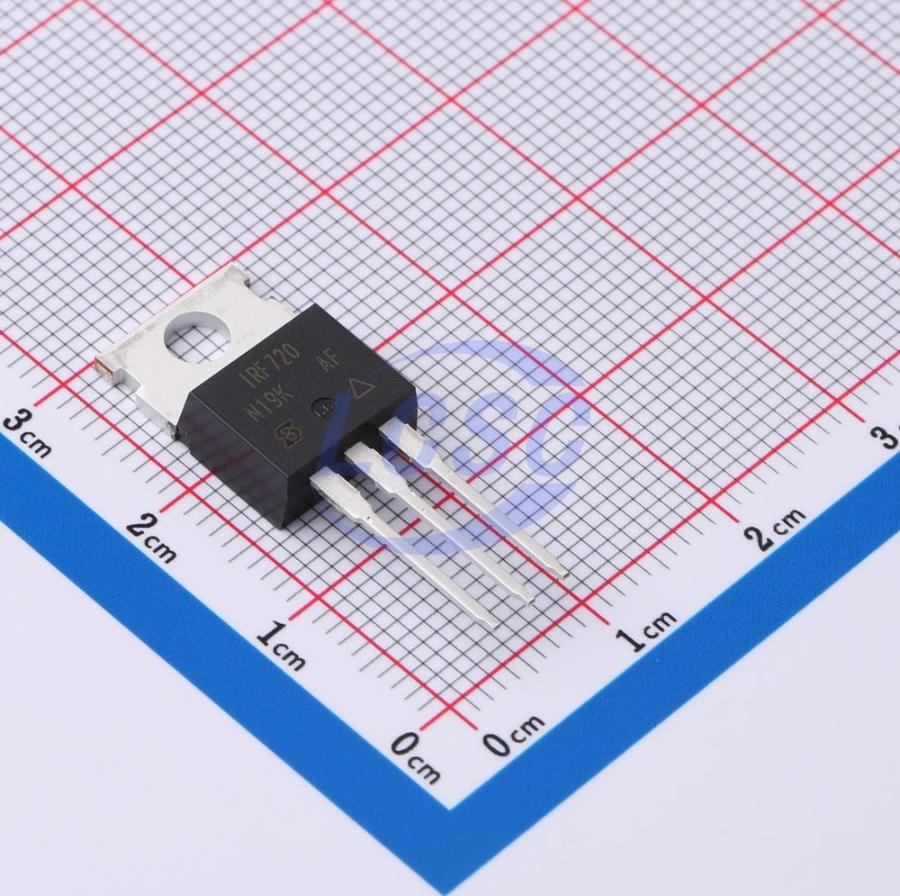

IRF720PBF
N-Channel 400V 2.1A 50W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 400V 2.1A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF720PBF
- Store part #
- C727840
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C727840
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.41 | ₹108.41 |
| 10+ | ₹87.87 | ₹878.70 |
| 30+ | ₹77.50 | ₹2,325.00 |
| 100+ | ₹64.27 | ₹6,427.00 |
| 500+ | ₹58.17 | ₹29,085.00 |
| 1,000+ | ₹55.13 | ₹55,130.00 |
1 × ₹108.41
₹108.41
excl. GST
₹127.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF720PBF
₹108.41 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 2.1A
- Ciss-Input Capacitance
- 410pF
- Pd - Power Dissipation
- 50W
- Reverse Transfer Capacitance (Crss)
- 47pF
- RDS(on)
- 1.8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.34 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Fast switching
- Ease of paralleling
- Simple drive requirements
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBM165R04#C516956VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 30 | ₹64.68 · 30 in stock | View |
 | 2SK4013#C7527494TOSHIBA · TO-220 | TOSHIBA | TO-220 | 1 | ₹594.95 · 1 in stock | View |
 | TK12A50D(STA4,X,M)#C5154560TOSHIBA · TO-220-3 | TOSHIBA | TO-220-3 | 370 | ₹99.53 · 370 in stock | View |
 | LJ7N80#C54426038luJing · TO-220AB | luJing | TO-220AB | 152 | ₹57.23 · 152 in stock | View |
| IRFBG30PBF-BE3#C5358932VISHAY · TO-220AB | VISHAY | TO-220AB | 7 | ₹435.47 · 7 in stock | View | |
