HXY MOSFETDatasheet (PDF)

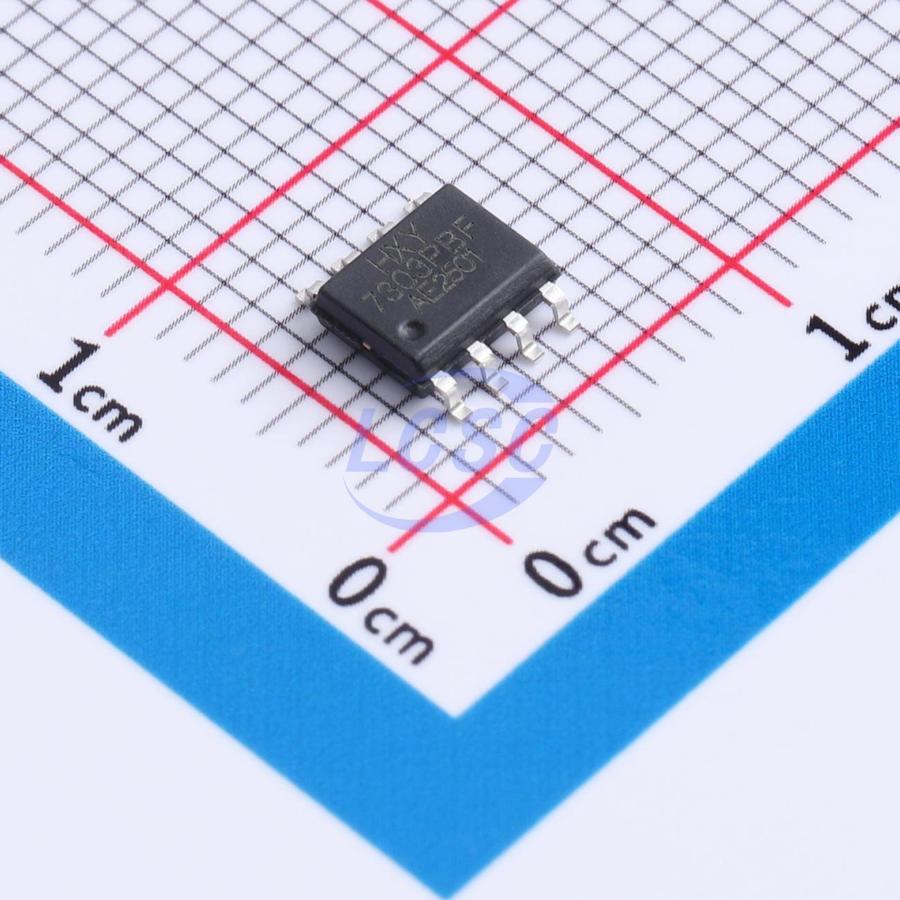

IRF7303PBF-HXY
N-Channel Array 30V 9A 2W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH ARR 30V 9A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRF7303PBF-HXY
- Store part #
- C22366594
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C22366594
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.20 | ₹156.00 |
| 50+ | ₹24.82 | ₹1,241.00 |
| 150+ | ₹22.08 | ₹3,312.00 |
| 500+ | ₹18.65 | ₹9,325.00 |
| 3,000+ | ₹17.15 | ₹51,450.00 |
| 6,000+ | ₹16.23 | ₹97,380.00 |
5 × ₹31.20
₹156.00
excl. GST
₹184.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF7303PBF-HXY
₹156.00 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 45pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 255pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 35pF
- RDS(on)
- 25mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 5.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.114 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7313PBF-HXY#C22366588HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 172 | ₹81.89 · 172 in stock | View |
 | SM4800PRL-HXY#C22366589HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 55 | ₹21.83 · 55 in stock | View |
 | SI4936ADY-T1-E3-HXY#C22366592HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 485 | ₹28.85 · 485 in stock | View |
 | HXY4812S#C3033426HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 480 | ₹14.42 · 480 in stock | View |
 | AO4812-HXY#C4748747HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 60 | ₹15.69 · 60 in stock | View |
