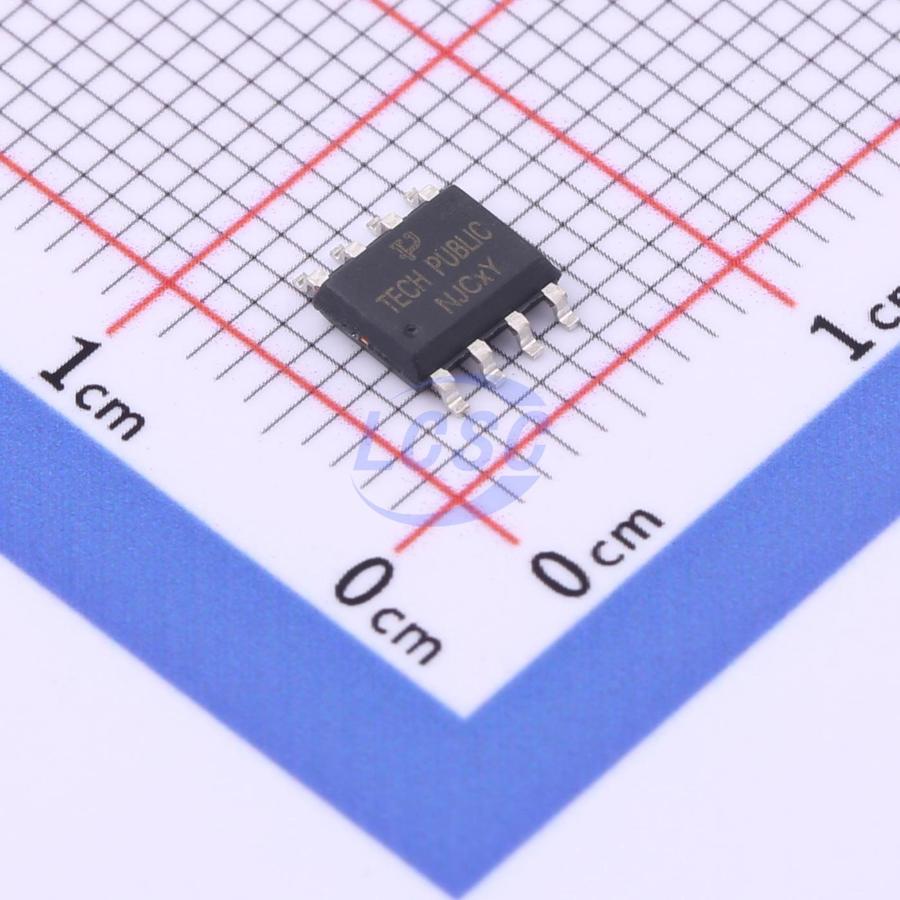

IRF7311TRPBF
N-Channel Array 20V 6A 1.6W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH ARR 20V 6A SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRF7311TRPBF
- Store part #
- C5123924
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,310 in stock
#C5123924
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.02 | ₹115.10 |
| 50+ | ₹20.20 | ₹1,010.00 |
| 150+ | ₹19.00 | ₹2,850.00 |
| 500+ | ₹17.49 | ₹8,745.00 |
| 3,000+ | ₹16.02 | ₹48,060.00 |
| 6,000+ | ₹15.62 | ₹93,720.00 |
5 × ₹23.02
₹115.10
excl. GST
₹135.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF7311TRPBF
₹115.10 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 106pF
- Ciss-Input Capacitance
- 562pF
- Pd - Power Dissipation
- 1.6W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 75pF
- RDS(on)
- 40mΩ@2.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 4.86nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
Applications
- Battery Protection - Load Switch
