InfineonDatasheet (PDF)

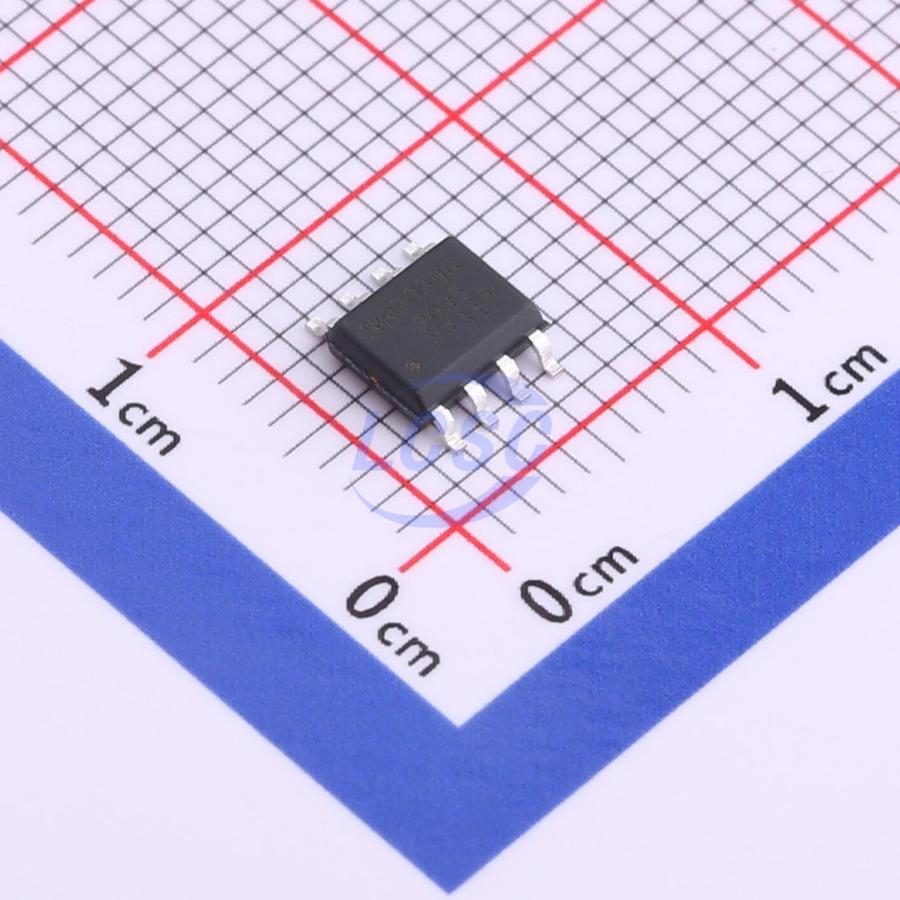

IRF7317TRPBF
N-Channel+P-Channel Array 20V 5.3A 2W Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET N-CH+P-CH ARR 20V 5.3A SO-8
- Manufacturer
- Infineon
- Manufacturer part #
- IRF7317TRPBF
- Store part #
- C454608
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19 in stock
#C454608
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹200.54 | ₹200.54 |
| 10+ | ₹169.46 | ₹1,694.60 |
| 30+ | ₹152.52 | ₹4,575.60 |
| 100+ | ₹133.19 | ₹13,319.00 |
| 500+ | ₹107.11 | ₹53,555.00 |
| 1,000+ | ₹103.21 | ₹1,03,210.00 |
1 × ₹200.54
₹200.54
excl. GST
₹236.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF7317TRPBF
₹200.54 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 430pF
- Ciss-Input Capacitance
- 900pF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 5.3A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 58mΩ@4.5V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 29nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 700mV
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
Fifth Generation HEXFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The SO-8 has been modified through a customized leadframe for enhanced thermal characteristics and multiple-die capability making it ideal in a variety of power applications. With these improvements, multiple devices can be used in an application with dramatically reduced board space. The package is designed for vapor phase, infra red, or wave soldering techniques.
Key features
- Generation V Technology
- Ultra Low On-Resistance
- Dual N and P Channel MOSFET
- Surface Mount
- Fully Avalanche Rated
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSM4606BA#C22359231HUASHUO · SOP-8 | HUASHUO | SOP-8 | 2,010 | ₹7.09 · 2,010 in stock | View |
 | SP2036CP8#C22385398Siliup · SOP-8L | Siliup | SOP-8L | 900 | ₹7.00 · 900 in stock | View |
 | WSP4626#C5242066Winsok Semicon · SOP-8 | Winsok Semicon | SOP-8 | 2,640 | ₹15.08 · 2,640 in stock | View |
 | AO4606A#C41380285KUU · SOP-8 | KUU | SOP-8 | 2,270 | ₹14.37 · 2,270 in stock | View |
 | AO4606#C5183842JSMSEMI · SOP-8 | JSMSEMI | SOP-8 | 2,590 | ₹21.53 · 2,590 in stock | View |
