TECH PUBLICDatasheet (PDF)

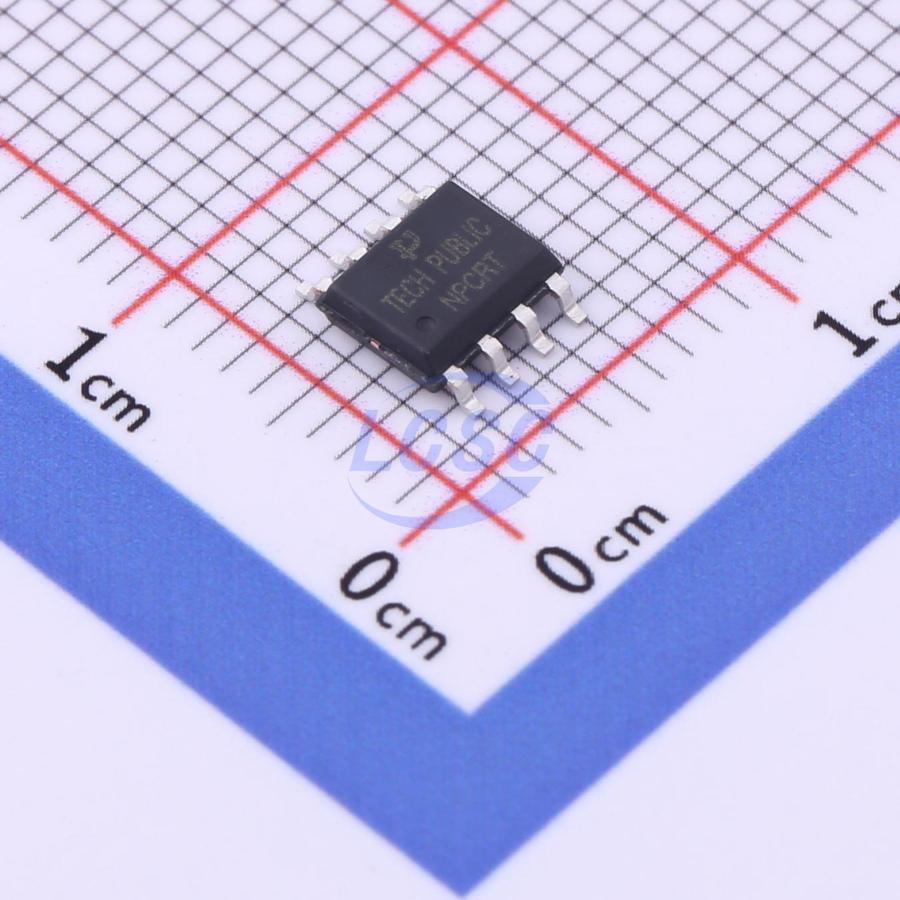

IRF7319TRPBF
30V Surface Mount SOP-8
SOP-8RoHSActive
MOSFET 30V SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRF7319TRPBF
- Store part #
- C5123893
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,285 in stock
#C5123893
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.70 | ₹143.50 |
| 50+ | ₹22.56 | ₹1,128.00 |
| 150+ | ₹19.92 | ₹2,988.00 |
| 500+ | ₹16.64 | ₹8,320.00 |
| 3,000+ | ₹14.45 | ₹43,350.00 |
| 6,000+ | ₹13.57 | ₹81,420.00 |
5 × ₹28.70
₹143.50
excl. GST
₹169.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF7319TRPBF
₹143.50 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 59pF;120pF
- Ciss-Input Capacitance
- 429pF
- Pd - Power Dissipation
- 1.7W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 7A;6A
- Reverse Transfer Capacitance (Crss)
- 47pF
- RDS(on)
- 22mΩ@10V;30mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 4.8nC@15V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The NCE3008XM utilizes advanced trench technology to achieve excellent on-resistance RDS(ON), low gate charge, and operation at gate voltages as low as 2.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
Key features
- Drain-Source Voltage VDS = 30V, Drain Current ID = 8A
- RDS(ON) < 55 mΩ at VGS = 2.5V
- RDS(ON) < 39 mΩ at VGS = 4.5V
- RDS(ON) < 33 mΩ at VGS = 10V
- High power and large current handling capability
- Lead-free
- Surface mount package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS8958B#C5123897TECH PUBLIC · SOIC-8 | TECH PUBLIC | SOIC-8 | 2,955 | ₹39.48 · 2,955 in stock | View |
 | TPM3067NPS8-5#C5123891TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 300 | ₹21.60 · 300 in stock | View |
 | TPM3067NPS8-2#C5123931TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 100 | ₹21.60 · 100 in stock | View |
 | TPM3067NPS8-3#C5123932TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 100 | ₹21.60 · 100 in stock | View |
 | TPM3067NPS8-1#C5123930TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 100 | ₹21.60 · 100 in stock | View |
