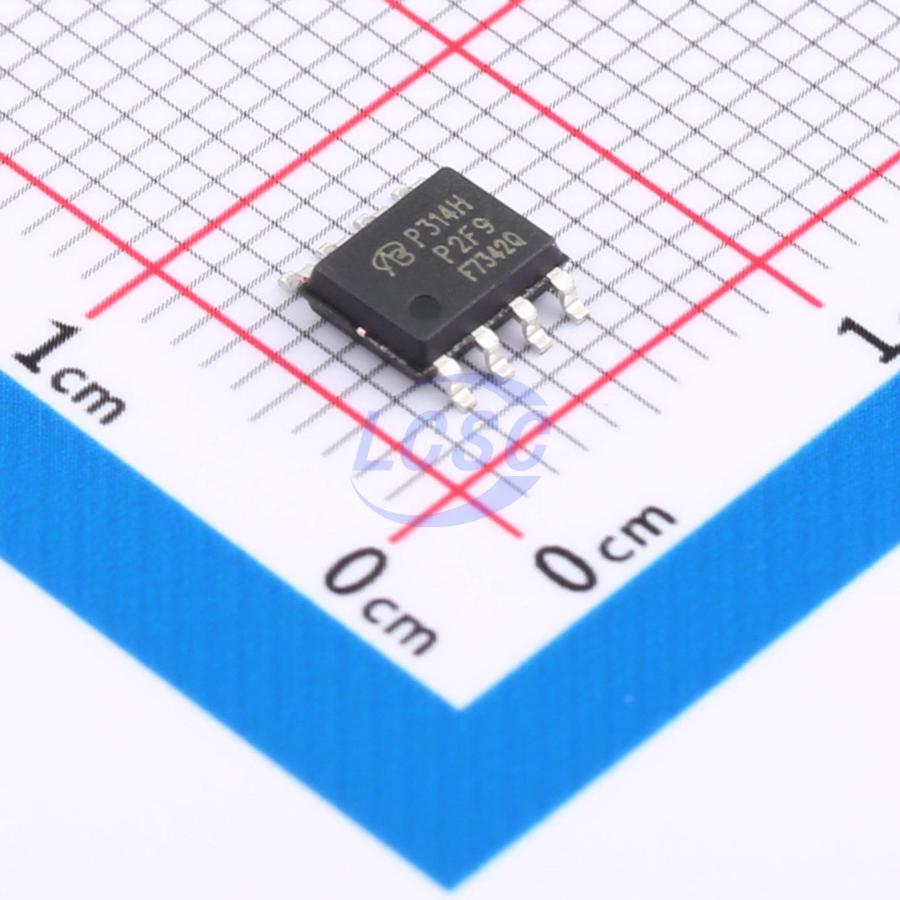

IRF7342QTRPBF-VB
P-Channel 60V 5.3A 4W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH ARR 60V 5.3A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF7342QTRPBF-VB
- Store part #
- C7463642
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C7463642
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.84 | ₹96.84 |
| 10+ | ₹78.15 | ₹781.50 |
| 30+ | ₹68.90 | ₹2,067.00 |
| 100+ | ₹59.67 | ₹5,967.00 |
| 500+ | ₹53.99 | ₹26,995.00 |
| 1,000+ | ₹51.25 | ₹51,250.00 |
1 × ₹96.84
₹96.84
excl. GST
₹114.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IRF7342QTRPBF-VB
₹96.84 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 210pF
- Current - Continuous Drain(Id)
- 5.3A
- Ciss-Input Capacitance
- 1.345nF
- Pd - Power Dissipation
- 4W
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 54mΩ@10V;60mΩ@4.5V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 32nC@10V;15nC@4.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
Applications
- Load Switch
Key features
- Halogen-free
- Trench power MOSFET
- 100% tested for single-pulse avalanche ruggedness (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ4961EY-T1-GE3-VB#C19711182VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹101.16 · 10 in stock | View |
 | STS3DPFS45-VB#C19711189VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 35 | ₹101.16 · 35 in stock | View |
 | SI9948AEY-T1-GE3-VB#C19711281VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 4 | ₹96.00 · 4 in stock | View |
 | IRF7342D2TRPBF-VB#C19711371VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹99.99 · 50 in stock | View |
 | HAT1055R-VB#C20755002VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 30 | ₹116.91 · 30 in stock | View |
