TECH PUBLICDatasheet (PDF)

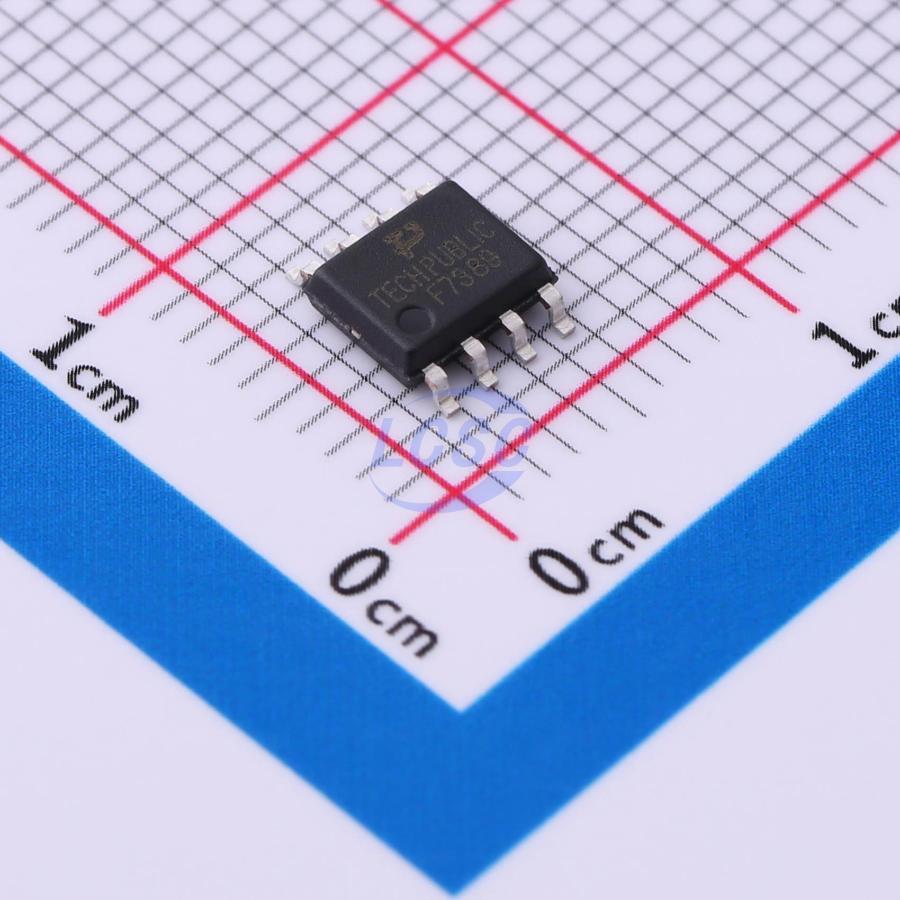

IRF7389
2W 30V 1 N-Channel + 1 P-Channel N-Channel + P-Channel SOP-8 Single FETs, MOSFETs
SOP-8RoHSActive
N and P-Channel Enhancement Mode Power MOSFET
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRF7389
- Store part #
- C5310964
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,770 in stock
#C5310964
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.03 | ₹110.15 |
| 50+ | ₹19.26 | ₹963.00 |
| 150+ | ₹18.07 | ₹2,710.50 |
| 500+ | ₹16.59 | ₹8,295.00 |
| 3,000+ | ₹15.15 | ₹45,450.00 |
| 6,000+ | ₹14.75 | ₹88,500.00 |
5 × ₹22.03
₹110.15
excl. GST
₹129.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF7389
₹110.15 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 45pF;100pF
- Ciss-Input Capacitance
- 255pF;520pF
- Pd - Power Dissipation
- 2W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6.5A;7A
- Reverse Transfer Capacitance (Crss)
- 35pF;65pF
- RDS(on)
- 20mΩ@10V;28mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 13nC@10V;9.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.6V;1.9V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
Applications
- High power and current handing capability
- Lead free product is acquired
- Surface mount package
Key features
- N-Channel
- VDS = 30V, ID = 6.5A
- RDS(ON) < 35mΩ @ VGs = 10V
- P-Channel
- VDS = -30V, ID = -7A
- RDS(ON) < 38mΩ @ VGs = -10V
