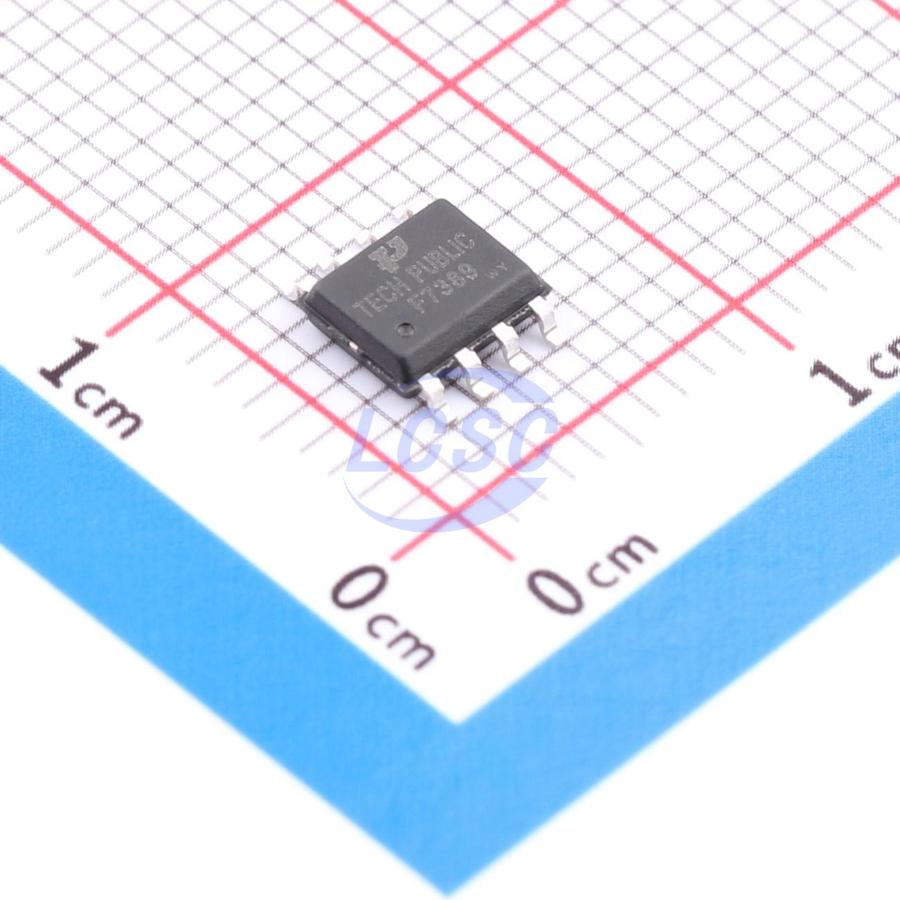

IRF7389TRPBF-TP
33V 8A 2.5W 1 N-Channel + 1 P-Channel N-Channel + P-Channel SOP-8 Single FETs, MOSFETs RoHS
SOP-8ROHS CompliantActive
MOSFET N/P-CH 33V 8A SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRF7389TRPBF-TP
- Store part #
- C50314315
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,195 in stock
#C50314315
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.13 | ₹110.65 |
| 50+ | ₹17.32 | ₹866.00 |
| 150+ | ₹15.24 | ₹2,286.00 |
| 500+ | ₹12.66 | ₹6,330.00 |
| 3,000+ | ₹11.51 | ₹34,530.00 |
| 6,000+ | ₹10.82 | ₹64,920.00 |
5 × ₹22.13
₹110.65
excl. GST
₹130.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRF7389TRPBF-TP
₹110.65 for 5 + GST
Specifications
- Drain to Source Voltage
- 33V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 80pF;108pF
- Current - Continuous Drain(Id)
- 8A
- Ciss-Input Capacitance
- 480pF;648pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 60pF;68pF
- RDS(on)
- 17mΩ@10V;40mΩ@10V
- Number
- 1 N-Channel + 1 P-Channel
- Gate Charge(Qg)
- 5.2nC@10V;14nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V;1.5V
- Type
- N-Channel + P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.202 g
Overview
Applications
- PWM applications
- DC motor
Key features
- N-Channel
- VDS = 30V, ID = 8.0A
- RDS(ON) = 17mΩ at VGS = 10V
- RDS(ON) = 24mΩ at VGS = 4.5V
- P-Channel
- VDS = -30V, ID = -6A
- RDS(ON) = 40mΩ at VGS = -10V
- RDS(ON) = 60mΩ at VGS = -4.5V
- High power and current handling capability
- Lead-free
- Surface mount package
