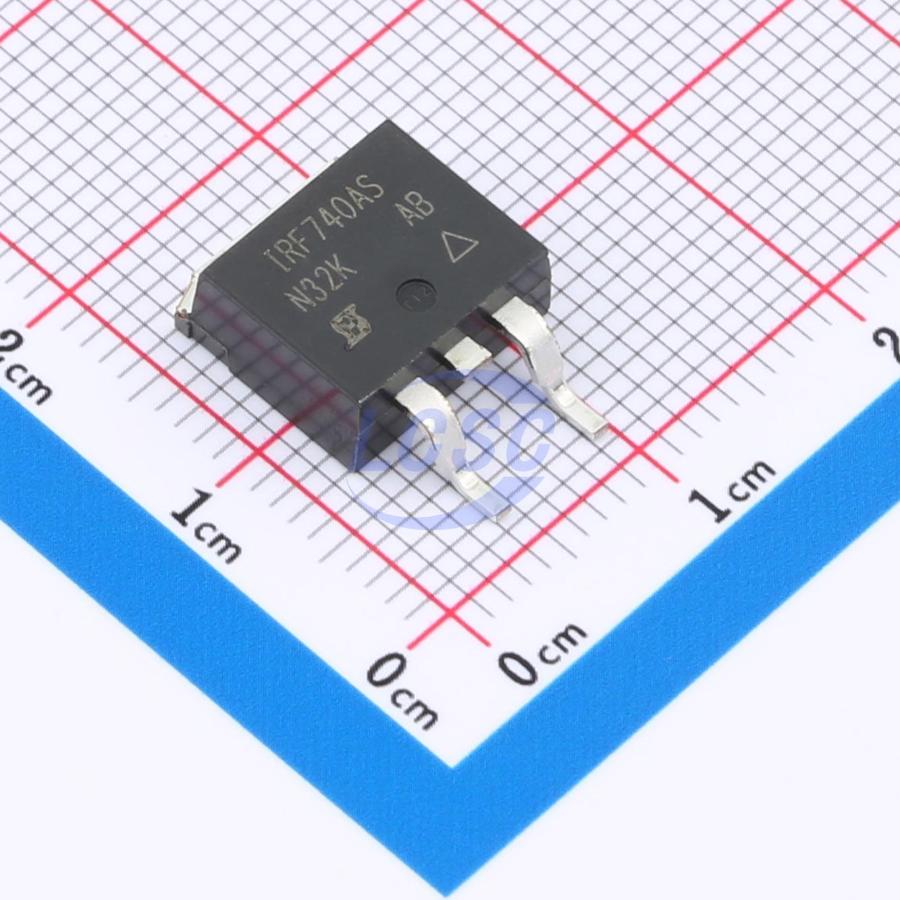

IRF740ASPBF
N-Channel 400V 10A 3.1W 125W Surface Mount D2PAK(TO-263)
D2PAK(TO-263)ROHS3 CompliantActive
MOSFET N-CH 400V 10A D2PAK(TO-263)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF740ASPBF
- Store part #
- C506477
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,594 in stock
#C506477
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.64 | ₹201.64 |
| 10+ | ₹165.11 | ₹1,651.10 |
| 30+ | ₹145.01 | ₹4,350.30 |
| 100+ | ₹122.32 | ₹12,232.00 |
| 500+ | ₹112.16 | ₹56,080.00 |
| 1,000+ | ₹107.63 | ₹1,07,630.00 |
1 × ₹201.64
₹201.64
excl. GST
₹237.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF740ASPBF
₹201.64 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 170pF
- Ciss-Input Capacitance
- 1.03nF
- Pd - Power Dissipation
- 3.1W;125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 10A
- Reverse Transfer Capacitance (Crss)
- 7.7pF
- RDS(on)
- 550mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.24 g
Overview
Applications
- Switch Mode Power Supply (SMPS)
- Uninterruptible Power Supply
- High speed Power Switching
Key features
- RoHS COMPLIANT HALOGEN FREE Available
- Halogen-free According to IEC 61249-2-21 Definition
- Low Gate Charge Qg Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Effective Coss specified
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF740ASTRLPBF-JSM#C41361606JSMSEMI · TO-263 | JSMSEMI | TO-263 | 730 | ₹95.18 · 730 in stock | View |
 | IRF740STRLPBF-JSM#C41361604JSMSEMI · TO-263 | JSMSEMI | TO-263 | 593 | ₹88.57 · 593 in stock | View |
 | FQB11N40TM-JSM#C41361605JSMSEMI · TO-263 | JSMSEMI | TO-263 | 87 | ₹93.27 · 87 in stock | View |
 | STB11NK40ZT4-JSM#C41361607JSMSEMI · TO-263 | JSMSEMI | TO-263 | 485 | ₹96.49 · 485 in stock | View |
| IRF740STRL-MNS#C55079408Minos · TO-263 | Minos | TO-263 | 780 | ₹75.57 · 780 in stock | View | |
