VISHAYDatasheet (PDF)

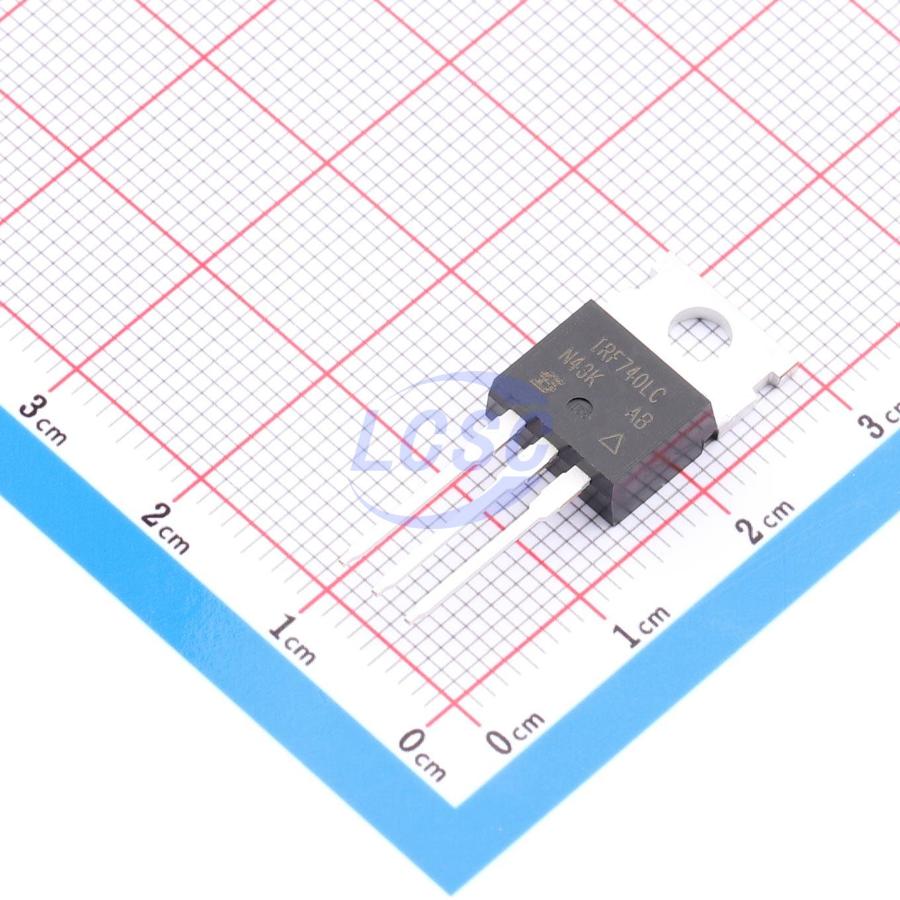

IRF740LCPBF
400V 10A 125W 550mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs RoHS
TO-220ABROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF740LCPBF
- Store part #
- C3280709
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C3280709
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹370.56 | ₹370.56 |
| 10+ | ₹363.89 | ₹3,638.90 |
| 30+ | ₹359.59 | ₹10,787.70 |
| 100+ | ₹355.30 | ₹35,530.00 |
1 × ₹370.56
₹370.56
excl. GST
₹437.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF740LCPBF
₹370.56 for 1 + GST
Specifications
- Drain to Source Voltage
- 400V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 190pF
- Current - Continuous Drain(Id)
- 10A
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 550mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.19 g
Overview
This new low-charge power MOSFET series significantly reduces gate charge compared to conventional MOSFETs. Leveraging new LCDMOS technology, it achieves improved device performance without increasing product cost, reduces gate drive requirements, and lowers overall system cost. Furthermore, in various high-frequency applications, it enables lower switching losses and higher efficiency. Using this new low-charge MOSFET, achieving frequencies of several MHz at high currents is feasible. These improvements in device performance, combined with the proven durability and reliability of power MOSFETs, set a new standard for power transistors in switching applications.
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID) lamps
- Fluorescent ballast lighting
- Industrial
- Welding
- Induction heating
- Motor drives
- Battery chargers
- Renewable energy
Key features
- Ultra-low gate charge
- Reduced gate drive requirements
- Enhanced 30 V VGS rating
- Low Ciss, Coss, Crss
- Extremely high frequency operation
- Repetitive avalanche rated
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UF740L-TA3-T#C127039UTC · TO-220 | UTC | TO-220 | 1 | ₹106.49 · 1 in stock | View |
 | IRF740#C358408BLUE ROCKET · TO-220 | BLUE ROCKET | TO-220 | 680 | ₹80.37 · 680 in stock | View |
 | WGP11N40#C7541441Wild Goose · TO-220 | Wild Goose | TO-220 | 979 | ₹34.74 · 979 in stock | View |
| FQP11N40C#C243074onsemi · TO-220 | onsemi | TO-220 | 1 | ₹463.38 · 1 in stock | View | |
 | CS740A8H#C2833627Wuxi China Resources Huajing Microelectronics · TO-220AB | Wuxi China Resources Huajing Microelectronics | TO-220AB | 1 | ₹79.64 · 1 in stock | View |
