VISHAYDatasheet (PDF)

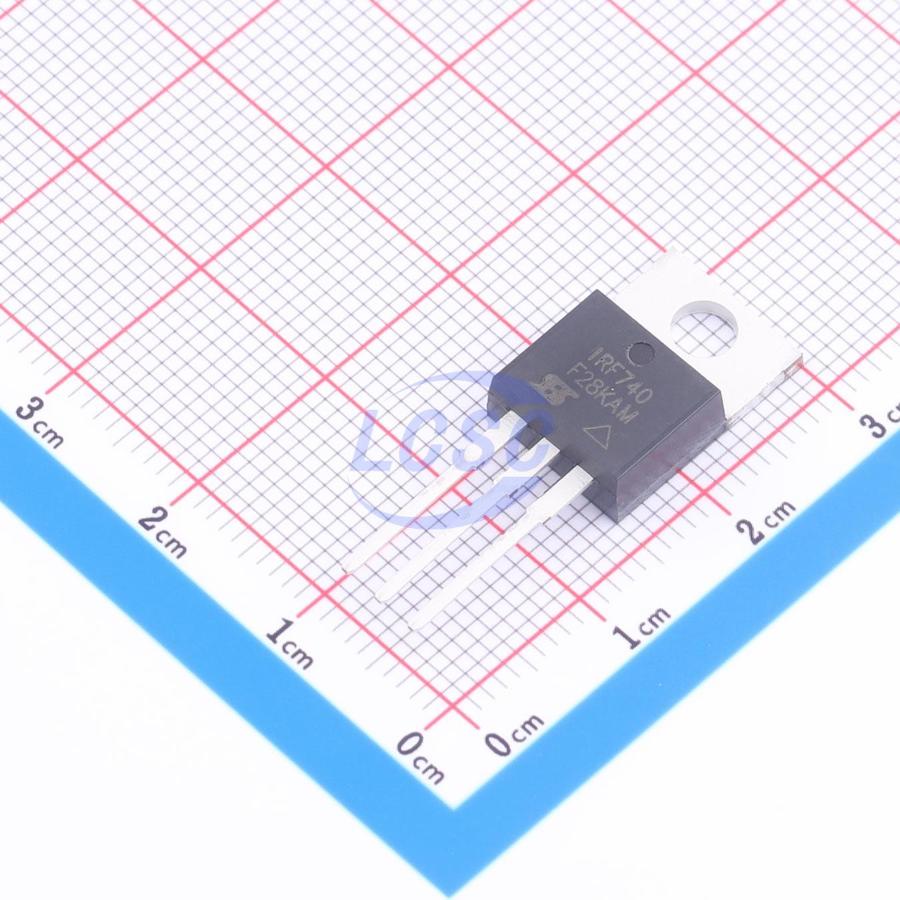

IRF740PBF-BE3
125W 400V 6.3A 550mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs RoHS
TO-220ABROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF740PBF-BE3
- Store part #
- C5358940
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C5358940
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹264.08 | ₹264.08 |
| 10+ | ₹258.45 | ₹2,584.50 |
| 30+ | ₹254.55 | ₹7,636.50 |
| 100+ | ₹250.64 | ₹25,064.00 |
1 × ₹264.08
₹264.08
excl. GST
₹311.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
IRF740PBF-BE3
₹264.08 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 1.4nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 6.3A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 550mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.87 g
Overview
The third-generation power MOSFETs offer designers an optimal combination of fast switching, enhanced device design, low on-resistance, and high cost-effectiveness. The TO-220AB package is widely preferred across all commercial-industrial applications at power dissipation levels up to approximately 50 W. Its low thermal resistance and low packaging cost have made the TO-220AB broadly accepted throughout the industry.
Applications
- Switching power supplies and general-purpose applications
- Hard-switching and high-frequency circuits
- Uninterruptible power supplies
Key features
- Dynamic dv/dt rated
- Repetitive avalanche rated
- Fast switching
- Easy to parallel
- Simple gate drive requirements
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF740PBF#C2570VISHAY · TO-220AB | VISHAY | TO-220AB | 40,340 | ₹95.61 · 40,340 in stock | View |
 | IRF840PBF#C537842VISHAY · TO-220AB | VISHAY | TO-220AB | 55,664 | ₹93.60 · 55,664 in stock | View |
 | STP24NM60N#C5357393ST · TO-220 | ST | TO-220 | 24 | ₹729.25 · 24 in stock | View |
 | STP11NK50Z#C2688582ST · TO-220 | ST | TO-220 | 1 | ₹113.43 · 1 in stock | View |
| IRF840PBF-BE3#C3280705VISHAY · TO-220AB | VISHAY | TO-220AB | 10 | ₹425.79 · 10 in stock | View | |
